** Image may not exactly match product **

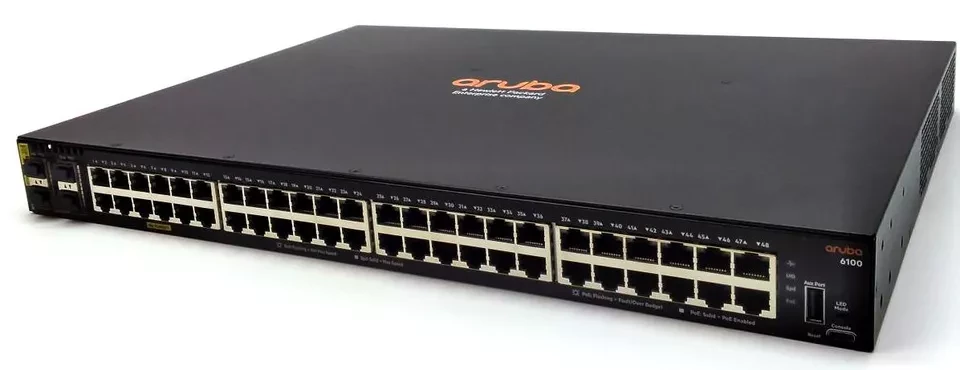

HPE R9Y04A#ABA Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
R9Y04A#ABA
R9Y04A#ABA
R9Y04A#ABA
R9Y04A#ABA
R9Y04A#ABA

HPE R9Y04A#ABA Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

Part Number: R9Y04A#ABA
BRAND: HPE | More NETWORKING from HPE
$8,100.00

$9,000.00
You Save: $900.00 10% OFF


Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE R9Y04A#ABA Aruba Networking Cx 6100 48g Class4 Poe 4sfp+ 740w Switch - Switch - 48 Ports - Managed - Rack-mountable.

Key Feature:

  • Device Type: Switch - 48 Ports - L3 - Managed
  • Enclosure Type: Side To Side Airflow Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)
  • Power Over Ethernet (poe): Poe+
  • Poe Budget: 740 W
  • Performance: Switching Capacity: 176 Gbps ¶ Throughput: 98.6 Mpps ¶ Latency (1 Gbps): 1.9 Μs ¶ Latency (10 Gbps): 1.8 Μs
  • Capacity: Switched Virtual Interfaces (svis) (dual Stack): 16 ¶ Ipv4 Acl Entries (ingress): 256 ¶ Ipv6 Acl Entries (ingress): 128 ¶ Mac Acl Entries (ingress): 256 ¶ Igmp Groups: 512 ¶ Mld Groups: 512 ¶ Ipv4 Host Table Capacity: 1024 ¶ Ipv6 Host Table Capacity: 512 ¶ Ipv4 Routes (unicast): 512 ¶ Ipv6 Routes (unicast): 512 ¶ Packet Buffer Size: 12.38 Mb
  • Mac Address Table Size: 8192 Entries
  • Jumbo Frame Support: 9220 Bytes
  • Routing Protocol: Igmpv2, Igmp, Igmpv3, Mldv2, Mld
  • Remote Management Protocol: Snmp 2, Snmp, Rmon, Snmp 3, Cli, Mib
  • Encryption Algorithm: Ssl
  • Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features: Layer 2 Switching, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Uni-directional Link Detection (udld), Class Of Service (cos), Type Of Service (tos), Poe Class 4, Rapid Pvst+ (rpvst+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (utm), Address Resolution Protocol
  • Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
  • Processor: 1 X Arm Cortextm A9: 1.016 Ghz
  • Ram: 4 Gb Ddr3 Sdram
  • Flash Memory: 16 Gb

    Expansion / Connectivity:
    Interfaces:
  • 48 X 10/100/1000 Base-t (poe+) Rj-45 Poe Class 4
  • 4 X Gigabit / 10gbit Lan Sfp+ Uplink
  • 1 X Usb-c Console
  • 1 X Usb Type A Host

    Power:
  • Power Device: Internal Power Supply
  • Power Provided: 950 Watt
  • Voltage Required: Ac 100-127/200-240 V (50/60 Hz)
  • Power Consumption Operational: 49.7 Watt
  • Power Consumption Stand By: 37.5 Watt

    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
