S0M84-61001

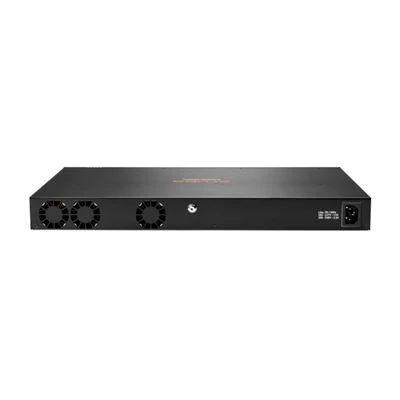

HPE S0M84-61001 Aruba CX 6200F 48G Class-4 PoE 4SFP 370W Ethernet Switch

Part Number: S0M84-61001
BRAND: HPE | More NETWORKING from HPE
$6,200.00

$7,000.00
You Save: $800.00 11% OFF


Capacity: 48 PORT

Quantity :
Upto 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE S0M84-61001 Aruba Networking Cx 6200f 48g Class 4 Poe 4sfp 370w Switch - Switch - Max. Stacking Distance 10 Kms - 48 Ports - Managed - Rack-mountable.

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed - Stackable
  • Enclosure Type : Front And Side To Back Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 (poe+) + 4 X 100/1000 Sfp
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 370 W
  • Performance : Switching Capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Stacking Bandwidth: 40 Gbps
    Packet Buffer Size: 8 Mb ¦ Ipv4 Acl Entries (ingress): 5120 ¦ Ipv6 Acl Entries (ingress): 1280 ¦ Mac Acl Entries (ingress): 5120 ¦ Ipv4 Acl Entries (egress): 2048 ¦ Ipv6
  • Capacity: Acl Entries (egress): 512 ¦ Mac Acl Entries (egress): 2048 ¦ Ipv4 Host Table Capacity: 8192 ¦ Ipv6 Host Table Capacity: 8192 ¦ Ipv4 Routes (unicast): 2048 ¦ Ipv6 Routes (unicast): 1024 ¦ Igmp Groups: 1024 ¦ Mld Groups: 1024
  • Mac Address Table Size : 32768 Entries
  • Jumbo Frame Support : 9220 Bytes
  • Max Units In A Stack : 8
  • Routing Protocol : Rip-2, Igmpv2, Igmp, Ospfv2, Igmpv3, Ospfv3, Mldv2, Mld
  • Remote Management Protocol : Rmon, Cli, Mib
  • Encryption Algorithm : Ssl, Fips 140-2
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
    Virtual Route Redundancy Protocol (vrrp) Support, Trusted Platform Module (tpm), Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr),
  • Features : Class Of Service (cos), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Poe Class 4, Rapid Pvst+ (rpvst+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (utm), Egress Queue Shaping (eqs), Address Resolution Protocol
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.1w, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a72: 1.8 Ghz
  • Ram : 8 Gb Ddr4 Sdram
  • Flash Memory : 16 Gb

    Expansion / Connectivity :
    Interfaces :
  • 48 X 10/100/1000 Base-t (poe+) Rj-45 Poe Class 4 - 30 W
  • 4 X 100/1000 Sfp Uplink
  • 1 X Usb-c Console
  • 1 X Console Rj-45
  • 1 X Management
  • 1 X Usb Type A Host

    Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-127/200-240 V (50/60 Hz)


    Condition : New Retail Factory Sealed
    Availability : In Stock
    Manufacturer Warranty : Limited Lifetime
    Our Warranty : 30 Days
