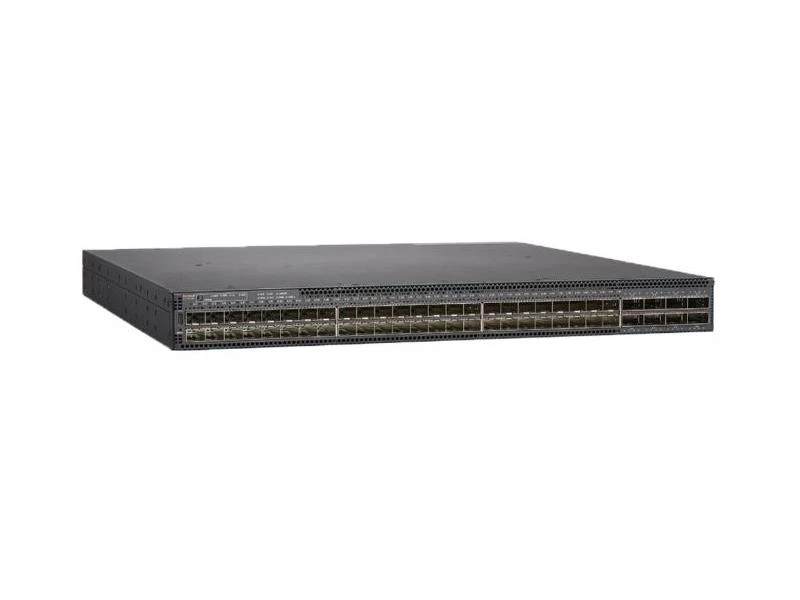

RUCKUS ICX7850-48F Switch 48x 1/10/25GbE SFP28 and 8x 40/100 QSFP28 ports Rack-Mountable
ICX7850-48F

RUCKUS ICX7850-48F Switch 48x 1/10/25GbE SFP28 and 8x 40/100 QSFP28 ports Rack-Mountable

Part Number: ICX7850-48F
BRAND: RUCKUS | More NETWORKING from RUCKUS
$15,600.00
Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

RUCKUS ICX7850-48F Switch 48x 1/10gbe Sfp+ And 8x 40/100 Qsfp28 Ports - Managed - Rack-mountable.(no Power Supplies, No Fans And No Port Modules - Ordered Separately).

Specifications :

  • Network Ports : 48x 25 Gigabit Ethernet Sfp28
  • Uplink Ports : 8x 100 Gigabit Ethernet Qsfp28
  • Stacking Ports : Uplink Ports Can Be Used For Stacking - Up To 12 Switches Per Stack
  • Stacking Cable Options : Standard Optics Or Cables Are Used For Stacking
  • Aggregate Stacking Bandwidth : 9.6 Tbps
  • Vlans : 4095
  • Packet Buffer : 32 Mb
  • Switching Capacity : 4.0 Tbps
  • Forwarding Rate : 2.0 Bpps
  • Mac Address Table Size : 32,000
  • Latency : 0.8 Μs (ave)
  • Dram And Flash : 4 Gb Dram, 32 Gb Flash (nvram)

    Expansion / Connectivity :
    Interfaces :
  • 48x 1/10/25 Gbe Sfp28 Ports
  • 8x 40/100 Gbe Qsfp28 Ports Supporting Native 40 Gbe Or 100 Gbe, Or Breakout To
    4x10 Gbe Or 4x25 Gbe
  • Up To 8 Of The Qsfp28 Ports As Stacking Ports
  • 2x Hot-swappable Load Sharing Power Supplies And 5x Hot- Swappable Fan Assemblies With Reversible Airflow Options (power Supplies And Fan Airflows Must Be The Same)
  • 1x Out Of Band Management Rj45
  • 1x Console Management Usb
  • 1x Usb Type A

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max) ( Minimum 1 Required)
  • Max Power: 650w
  • Supported Psu: Rps19-e (front-back), Rps19-i (back-front)

    Fan :
  • Installed Qty : 0 (installed) / 5 (max)
  • Supported Fan : Icx-fan12-e (front-back) Icx-fan12-i (back-front)
  • Airflow Direction : Front-to-back, Or Back-to-front (depending On Power Supplies And Fans Installed)

    Condition : New Factory Sealed.
    Availability : In Stock.
    Our Warranty : 90 Days.
