Detail overview

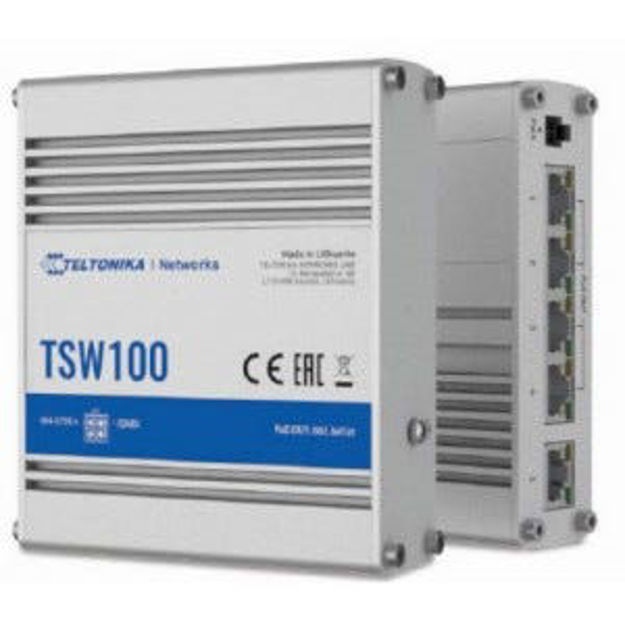

TELTONIKA TSW100000010 Tsw100 Unmanaged Poe+ 5xgb Ports Ethernet Switch.

Ethernet :

Lan : 5 X Lan Ports, 10/100/1000 Mbps, Compliance With Ieee 802.3, Ieee 802.3u, 802.3az Standards, Supports Auto Mdi/mdix Crossover

802.3 Communication Standards : 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, 802.3af, 802.3at

Poe :

Poe Ports : Port 1- 4

Poe Standards : 802.3af And 802.3at

Poe Max Power Per Port (at Pse) : 30 W

Poe Power Budget (at Pse) : 120 W

Performance Specifications :

Bandwidth (non-blocking) : 10 Gbps

Packer Buffer : 128 Kb

Mac Address Table Size : 2k Entries

Physical Interfaces :

Ethernet : 5 X Rj45 Ports, 10/100/1000 Mbps

Status Leds : 1 X Power Led, 10 X Lan Status Leds

Power : 1 X 4-pin Power Connector

Other : 1 X Grounding Screw

Physical Specification :

Casing Material : Full Aluminum Housing

Dimensions (w X H X D) : 115 X 32 X 95 Mm

Weight : 350 G

Mounting Options : Din Rail Or Wall Mounting (additional Kit Needed), Flat Surface Placement

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
