Detail overview

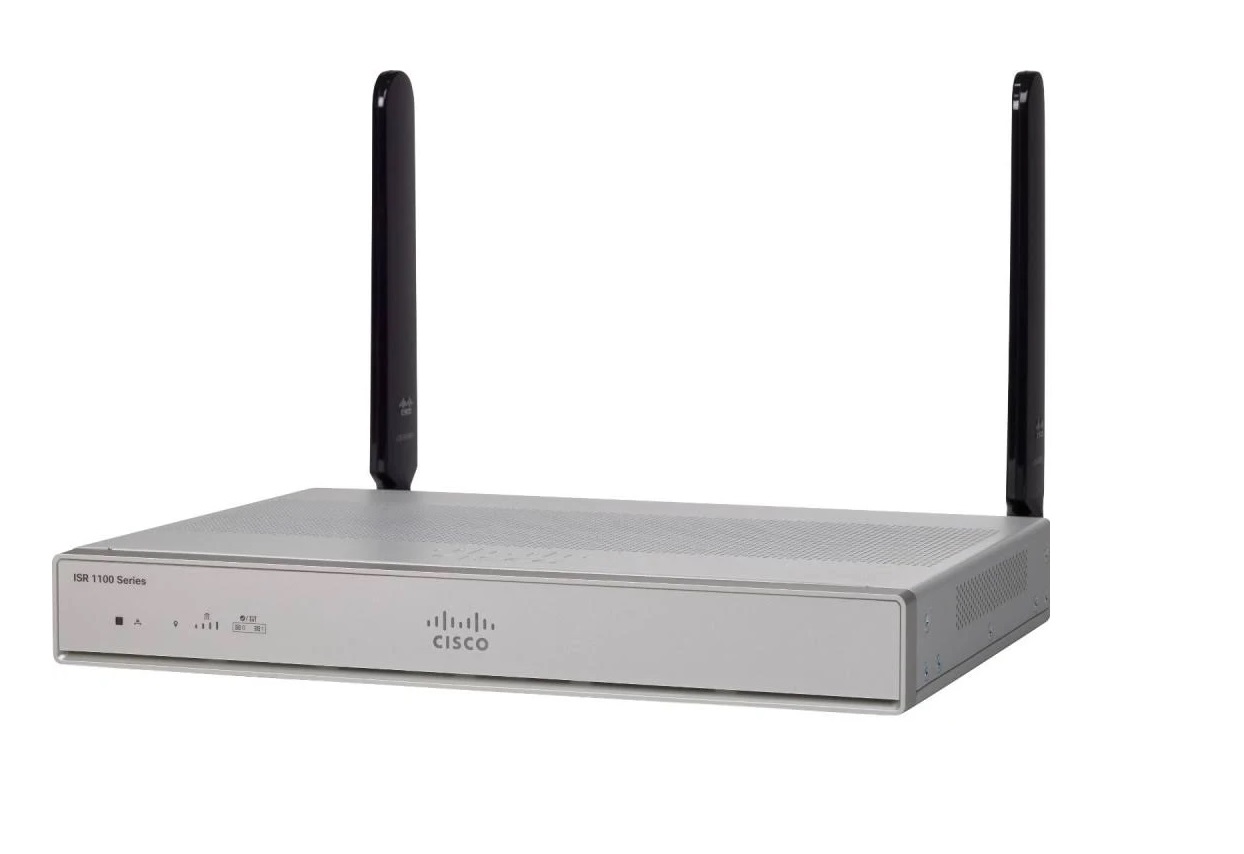

CISCO C1111-8PLTEEA Integrated Services Router 1111 - Router - Wwan - 802.11a/b/g/n/ac - Desktop :
Key Features :
Device Type : Router - 8-port Switch (integrated)
Enclosure Type : Desktop
Connectivity Technology : Wireless, Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac, Ieee 802.11ac Wave 2
Performance : Crypto Performance: 250 Mbps
Network / Transport Protocol : Ipsec, Pppoe, Dhcp, Dns, L2tpv3
Routing Protocol : Ospf, Is-is, Rip-1, Rip-2, Bgp, Eigrp, Hsrp, Dvmrp, Vrrp, Pim-sm, Static Ip Routing, Igmpv3, Gre, Pim-ssm, Policy-based Routing (pbr), Mpls, Bidirectional Forwarding Detection (bfd), Rsvp
Remote Management Protocol : Snmp, Rmon, Cli, Tr-069
Encryption Algorithm : Triple Des, Sha, Md5, Aes, Wpa2, 128-bit Aes, 256-bit Aes, 1024-bit Rsa, 2048-bit Rsa, 384-bit Sha-2, 256-bit Sha, 512-bit Sha, 748-bit Aes, Ecdsa 256-bit, Ecdsa 384-bit
Authentication Method : Radius
Features : Dhcp Support, Power Over Ethernet (poe), Load Balancing, Mpls Support, Vlan Support, Syslog Support, Ipv6 Support, Dying Gasp Support, Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Virtual Route Redundancy Protocol (vrrp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Multipoint Vpn (dmvpn), Sms Alert, Bidirectional Forwarding Detection (bfd), Ipv4 Support, Netflow, Maximum Ratio Combining (mrc), Hot Standby Router Protocol (hsrp) Support, Call Home Function Support, Ipfix, Generic Routing Encapsulation (gre), Automatic Internet Key Exchange, Cyclic Shift Diversity (csd), Location Id Separation Protocol (lisp), Packet Aggregation A-mpdu, Packet Aggregation A-msdu, Application Visibility And Control (avc), 3g Mib, Failover Protection, Field Programmable Gate Array, Aes Encryption, Policy Based Routing, Authentication, Authorization And Accounting (aaa), Dynamic Frequency Selection (dfs), Hierarchical Quality Of Service (hqos), Layer 3 Vpn (l3vpn) Support, Embedded Event Manager (eem), Multigroup Hsrp (mhsrp), Ethernet Virtual Connections (evc), CISCO Ios Ip Service-level Agreements (ipsla), Network-based Application Recognition (nbar), Multichannel-interface-processor (mip), Dual Sim Support
Compliant Standards : Ieee 802.3af, Ieee 802.11i, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.3at, Ieee 802.11r, Ieee 802.11ac Wave 2, Cispr 24, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Cb, En 61000-6-1, En 61000-4-4, En 61000-4-2, En 61000-4-3, En 61000-4-6, En 61000-4-5, En 61000-4-11, Fcc Cfr47 Part 15, Ul 60950-1 Second Edition, Vcci V-3, En 60950-1 Second Edition, Iec 60950-1 Second Edition, As/nzs Cispr 22, Cns 13438, En 301 489-7, En 301 489-1, Fcc Cfr47 Part 22, Fcc Cfr47 Part 24, Can/csa C22.2 No. 60950-1 Second Edition, En 300 386, En 301 489-24, En 301 908-1, En 301 908-2, En 301 511, En 301 908-13
Ram : 4 Gb
Flash Memory : 4 Gb
Status Indicators : Status
Communications :
Type : Wireless Cellular Modem
Cellular Protocol : Umts, Td-scdma, Hspa+, Dc-hspa+, Lte Advanced, Fdd Lte, Tdd Lte
Internet Of Things (iot) :
Communications Technology : Lte Cat 6
Expansion / Connectivity :
Interfaces :
Wan: 1 X 1000base-t/1000base-x - Rj-45/sfp
Wan: 1 X 1000base-t - Rj-45
Lan: 4 X 10base-t/100base-tx/1000base-t - Rj-45
Lan: 2 X 10base-t/100base-tx/1000base-t (poe) - Rj-45
Lan: 2 X 10base-t/100base-tx/1000base-t (poe+) - Rj-45
Usb 3.0: 1 X Console
Antenna: 1 X Gps Connector
Expansion Slots : 1 (total) / 1 (free) X Sim
Power :
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 66 Watt
Condition : Refurbished
Availability : In Stock.
Our Warranty : 30 Days.
