Detail overview

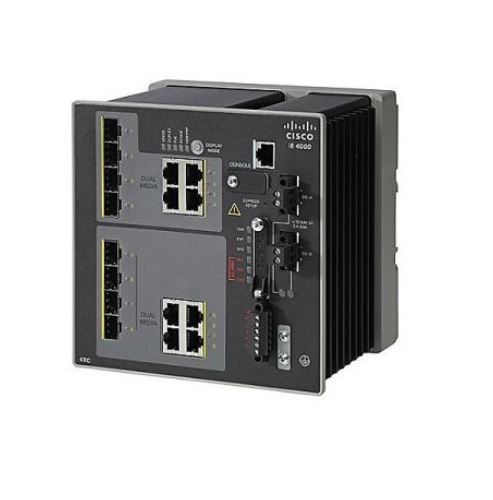

Cisco Ie-4000-4tc4g-e Industrial Ethernet 4000 Series - Switch - 8 Ports - Managed :

Key Features :

  • Device Type : Switch - 8 Ports - Managed
  • Enclosure Type : Din Rail Mountable
  • Subtype : Fast Ethernet
  • Ports : 4 X Combo Sfp + 4 X Combo Gigabit Sfp
  • Capacity : Virtual Interfaces (vlans): 1000 ¦ Igmp Groups: 1000
  • Mac Address Table Size : 16k Entries
  • Routing Protocol : Static Ipv4 Routing
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 2, Rmon, Telnet, Snmp 3, Http, Ssh, Cli
  • Authentication Method : Radius, Tacacs+
  • Features : Nat Support, Bootp Support, Trunking, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Mac Address Filtering, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Trivial File Transfer Protocol (tftp) Support, Quality Of Service (qos), Dhcp Server, Dynamic Arp Inspection (dai), Bidirectional Forwarding Detection (bfd), Uni-directional Link Detection (udld), Dhcp Relay, Port Security, Mac Address Notification, Remote Switch Port Analyzer (rspan), Ntp Time Synchronization, Class Of Service (cos), Precision Time Protocol (ptp), Igmp Filtering, Profinet V2, Ip Source Guard, Flex Link Support, Resilient Ethernet Protocol (rep), Smartport Technology, Parallel Redundancy Protocol (prp)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 1588v2, Ieee 1613
  • Ram : 512 Mb
  • Flash Memory : 128 Mb

    Expansion / Connectivity :
    Interfaces :
  • 4 X 100base-tx Rj-45
  • 4 X 1000base-t Rj-45 Uplink
  • 4 X Sfp Uplink
  • 1 X Mini-usb Type B
  • 1 X Console Rj-45
  • 4 X Sfp

    Expansion Slots :
  • 1 (total) / 0 (free) X Sd Memory Card

    Power :
  • Voltage Required : Dc 9.6 - 60 V
  • Electric Current Required : 4.3 A
  • Power Consumption Operational : 40 Watt

    Condition : New Factory Sealed
    Availability : In Stock.
    Our Warranty : 30 Days.
