Detail overview

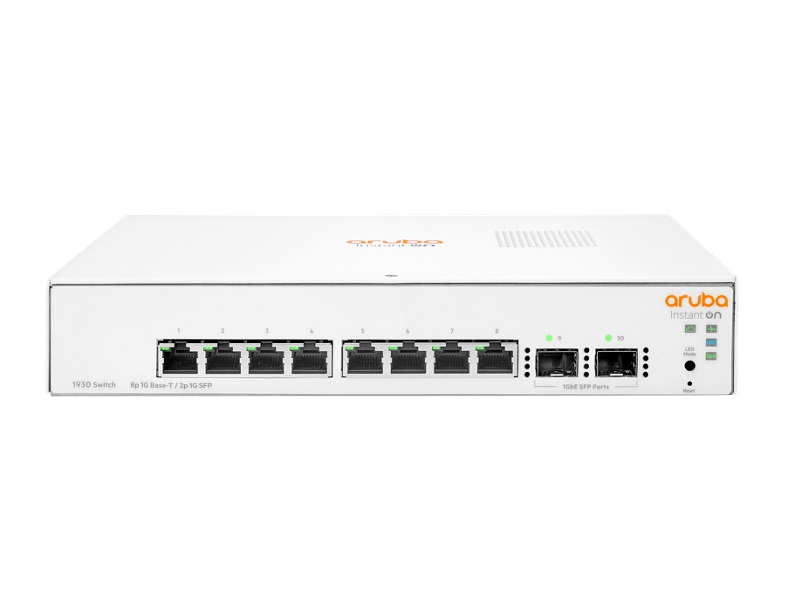

HPE JL680A Aruba Instant On 1930 8g 2sfp Switch - Switch - 10 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 10 Ports - L3 - Managed

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 8 X 10/100/1000 + 2 X Gigabit Sfp

Performance : Switching Capacity: 20 Gbps , Throughput: 14.88 Mpps , Latency (100 Mbps) 5.2 , Latency (1 Gbps): 3

Capacity : Link Aggregation Ports: 8 , Ipv4 Routes (static): 32 , Vlans Supported: 256 , Access Control Entries (aces) Per Acl: 480 , Packet Buffer Size: 1.5 Mb

Mac Address Table Size : 8000 Entries

Jumbo Frame Support : 9216 Bytes

Routing Protocol : Static Ip Routing

Remote Management Protocol : Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius

Encryption Algorithm : Ssl

Authentication Method : Radius

Features : Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az

Processor : 1 X Arm Cortex-a9: 800 Mhz

Ram : 512 Mb Sdram

Flash Memory : 256 Mb

Status Indicators : Port Status, Power

Expansion / Connectivity :
Interfaces:

8 X 10/100/1000 Base-t Rj-45

2 X Gigabit Lan Sfp

Power :

Power Device : External Power Adapter

Voltage Required : Ac 120/230 V (50/60 Hz)

Power Consumption Operational : 11 Watt

Condition : Refurbished.
Availability : In Stock
Our Warranty : 30 Days
