Detail overview

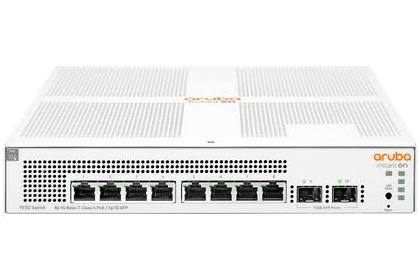

HPE JL681-61001 Aruba Instant On 1930 8g Class4 Poe 2sfp 124w Switch - 8 Ports - Managed - Rack-mountable.

Key Features :

  • Device Type: Switch - 8 Ports - L2+ - Managed
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 8 X 10/100/1000 (poe+) + 2 X Gigabit Sfp
  • Power Over Ethernet (poe): poe+
  • Poe Budget: 124 W
  • Performance: Throughput: 14.88 Mpps ¦ Switching Capacity: 20 Gbps ¦ Latency (100 Mbps): 5.2 Μs ¦ Latency (1 Gbps): 3 Μs
  • Capacity: Routing Table Entries (static): 32
  • Mac Address Table Size: 8000 Entries
  • Jumbo Frame Support: 9216 Bytes
  • Routing Protocol: Igmpv2, Igmp, Static Ipv4 Routing, Mstp, Rstp, Stp
  • Remote Management Protocol: Snmp, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Scp, Dhcp, Ipv4, Ipv6
  • Features: Flow Control, Dhcp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Port Mirroring, Manageable, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Trusted Platform Module (tpm), Ipv4 Support, Lacp Support, Lldp Support, Link Aggregation Control Protocol (lacp), Class Of Service (cos), Snmp Support, 1.5mb Packet Buffer, Bridge Protocol Data Unit (bpdu), Lldp-med, Energy-efficient Ethernet (eee)
  • Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af
  • Processor: 1 X Arm Cortex-a9: 800 Mhz
  • Ram: 512 Mb
  • Flash Memory: 256 Mb

    Expansion / Connectivity:

  • Interfaces:

  • 8 X 1000base-t Rj-45
  • 2 X Gigabit Lan Sfp


  • Power Device: Internal Power Supply
  • Power Provided: 150.2 Watt
  • Voltage Required: Ac 120/230 V (50/60 Hz)

    Condition : New Retail Factory Sealed
    availability : In Stock
    manufacturer Warranty : Limited Lifetime
    our Warranty : 30 Days
