Detail overview

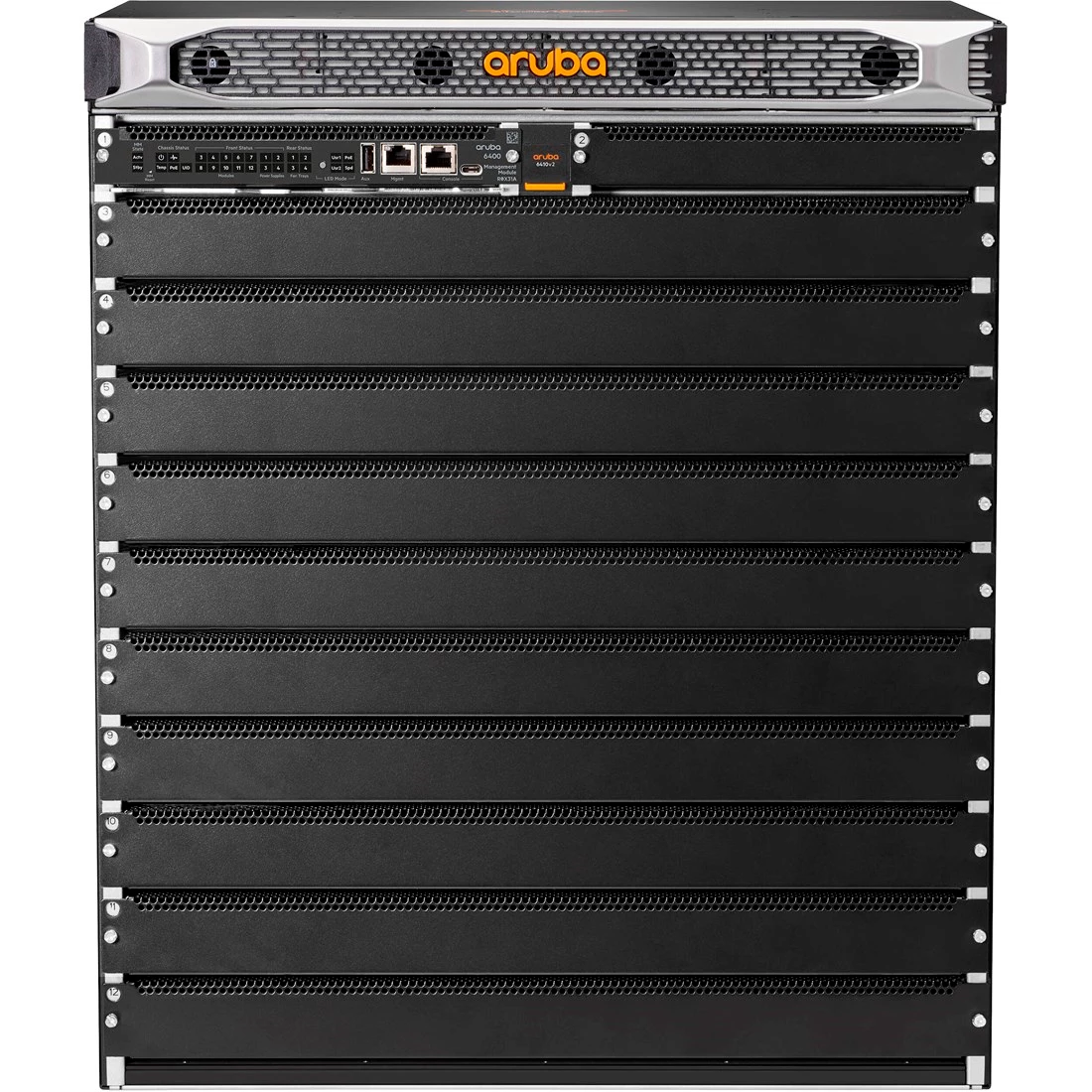

HPE R0X27-61001 Aruba 6410 Switch Bundle - Switch - Managed - Rack-mountable - With HPE Aruba 6410 Chassis Switch.

Key Features :

  • Device Type: Switch - L4 - Managed - Stackable - With HPE Aruba 6410 Chassis Switch
  • Enclosure Type: Front To Back Airflow Rack-mountable 7u
  • Performance: Routing/switching Capacity: 28 Tbps , Throughput: 20 Bpps
  • Capacity: Virtual Interfaces (vlans): 2000 , Ipv4 Routing Table Entries: 32000 , Ipv6 Routing Table Entries: 32000 , Multicast Routes: 8000 , Unicast Entries (ipv6): 64000 , Unicast Entries (ipv4): 64000 , Igmp Groups: 8000 , Mld Groups: 4000
  • Jumbo Frame Support: Yes
  • Routing Protocol: Ospf, Bgp, Ospfv3
  • Remote Management Protocol: Snmp 1, Snmp 2, Snmp 3, Ipv4, Ipv6
  • Encryption Algorithm: Md5, Ssl
  • Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features: Power Over Ethernet (poe), Quality Of Service (qos), Deficit Weighted Round Robin (dwrr), Non Blocking Ports, Strict Priority (sp), Cpu Protection, Protocol Independent Multicast (pim), Bootstrap Router (bsr) Mechanism, Draft-ietf-savi-mix, Virtual Switch Extension (vsx)
    compliant Standards: Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3af, Ieee 802.1w, Ieee 801.1p, Ieee 802.1t, Ieee 802.1v, Ieee 802.3ak, Ieee 802.3at, Ieee 802.3ax, Ieee 802.3bt.

    Expansion / Connectivity:

  • Interfaces:

  • 1 X Console Rj-45
  • 1 X Usb-c Console
  • 1 X Usb

  • Installed Modules Qty (max): 2 (installed) / 10 (max)

    Power
  • Power Device: Internal Power Supply
  • Installed Qty: 1 (installed) / 4 (max)
  • Voltage Required: Ac 120/230 V (50/60 Hz)
  • 80 Plus Certification: 80 Plus Platinum

    Condition : New Retail Factory Sealed
  • Availability : In Stock
  • Manufacturer Warranty : Limited Lifetime
  • Our Warranty : 30 Days
