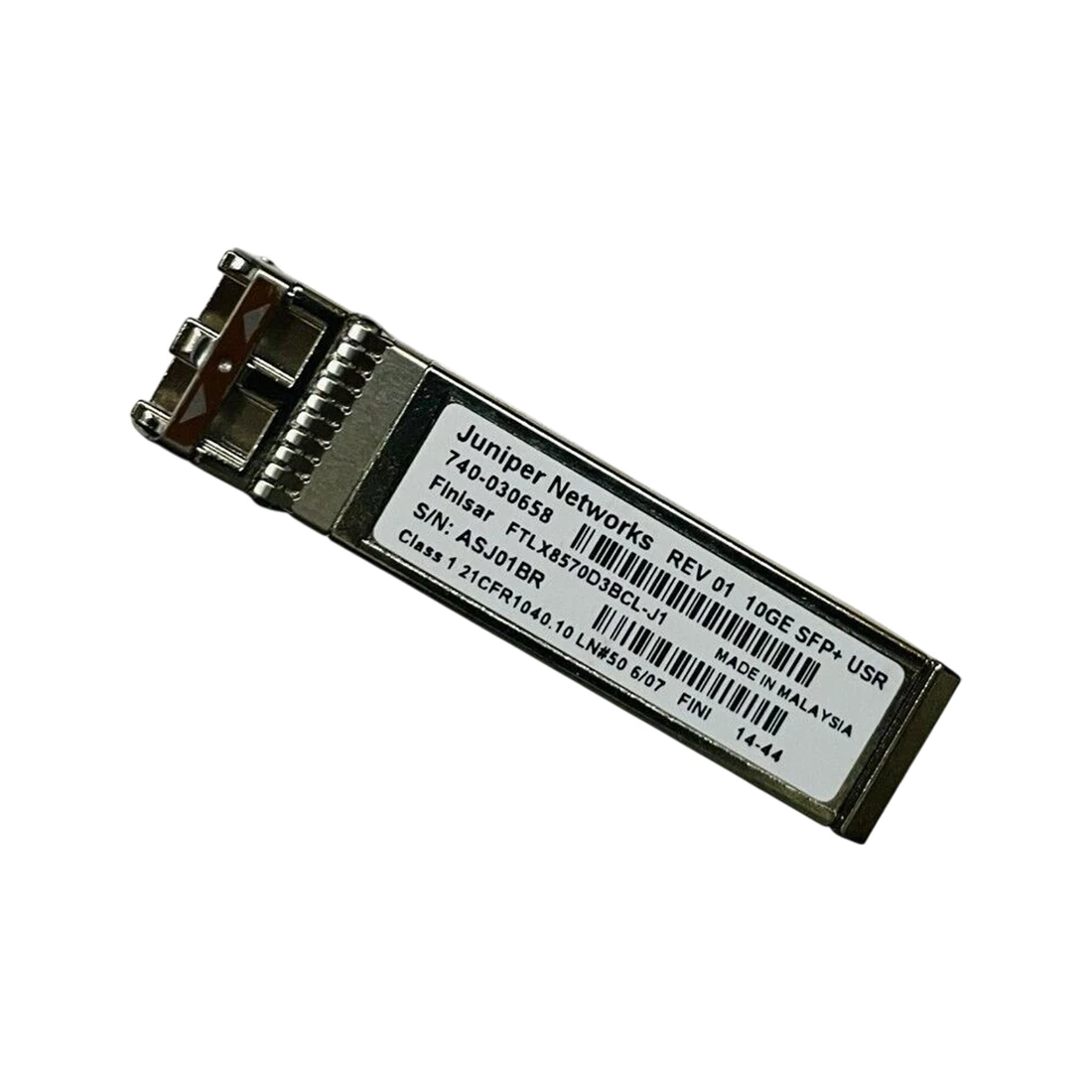

Juniper Networks 740-030658 10GbE Ethernet SFP+ USR 100m Optical Transceiver
740-030658
740-030658
740-030658
740-030658
740-030658

Juniper Networks 740-030658 10GbE Ethernet SFP+ USR 100m Optical Transceiver

Part Number: 740-030658
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$30.00
Capacity: 10 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks 740-030658 10gbe Ethernet Sfp+ Usr 100m Optical Transceiver

Specifications

  • Speed: 10 Gigabit Ethernet
  • Breakout Capable: No
  • Form Factor: Sfp+
  • Product Type: Optical Transceiver
  • Connector: Duplex Lc
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: Juniper Networks Proprietary 10g-usr
  • Signaling Rate Each Lane:
    - 9.95328 Gbd +/- 20 Ppm
    - 10.3125 Gbd +/- 100 Ppm
  • Transmitter Wavelengths (range): 840 Nm To 860 Nm
  • Receive Lane Wavelengths (range): 840 Nm To 860 Nm
  • Transmitter Output Power Each Lane (minimum): -7.3 Dbm
  • Transmitter Output Power Each Lane (maximum): -1.3 Dbm
  • Receiver Input Power Each Lane (minimum): -9.9 Dbm
  • Receiver Input Power Each Lane (maximum): -1.0 Dbm
  • Optical Transmitter 3-db Spectral Width (maximum): 0.65 Nm
  • Cable Type: Mmf
  • Fiber Grade:
    - Om1
    - Om2
    - Om3 (om4 Compatible)
  • Core Size/cladding: Om1(62.5/125 Mm), Om2(50/125 Mm) , Om3/om4 Compatible(50/125 Mm).
  • Effective Modal Bandwidth: Om1(200 Mhz X Km), Om2(500 Mhz X Km) , Om3/om4 Compatible(2000 Mhz X Km).
  • Distance: Om1(10 M), Om2(30 M) , Om3/om4 Compatible(100 M).
  • Maximum Power Consumption (w): 0.5 W
  • Operating Temperature (range):
  • Storage Temperature: 0° C To 70° C
  • Typical Weight & Dimensions: –40° C To 85° C

    Condition: System Pull Clean Tested.
    Availability: In Stock.
    Our Warranty: 90 Days.
