** Image may not exactly match product **

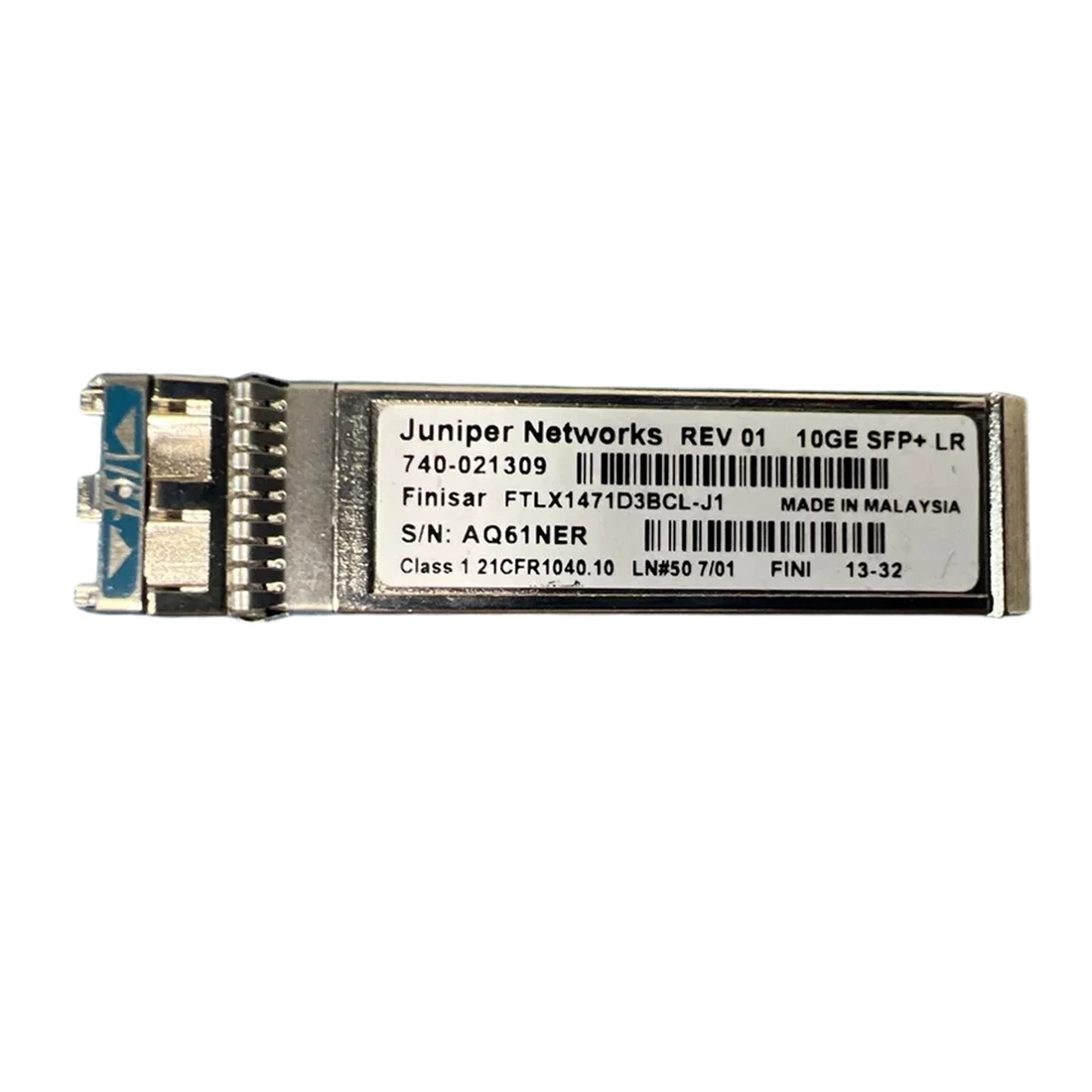

Juniper Networks SFPP-10G-LRT2-C SFP+ 10GBase-LR 10 Gigabit Ethernet Optics 1310nm for 10km transmission on SMF
SFPP-10G-LRT2-C
SFPP-10G-LRT2-C
SFPP-10G-LRT2-C
SFPP-10G-LRT2-C
SFPP-10G-LRT2-C

Juniper Networks SFPP-10G-LRT2-C SFP+ 10GBase-LR 10 Gigabit Ethernet Optics 1310nm for 10km transmission on SMF

Part Number: SFPP-10G-LRT2-C
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$130.00
Capacity: 10 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks SFPP-10G-LRT2-C Sfp+ 10gbase-lr 10 Gigabit Ethernet Optics 1310nm For 10km Transmission On Smf.

Specifications

Speed 10 Gigabit Ethernet

Breakout Capable No

Transceiver Type Sfp+

Product Type Optical Transceiver

Connector Duplex Lc

Monitoring Available Yes

Digital Optical Monitoring Yes

Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) 10gbase-l

Msa Compliance (sff, For E.g. Sff-8665)

  • Sff-8431
  • Sff-8472
  • Sff-8432

    Digital Diagnostic Monitoring
  • Transceiver Temperature
  • Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power

    Signaling Rate, Each Lane 10 Gbps

    Transmitter Fibers Smf

    Transmitter Wavelengths (range) 1260 Nm To 1355 Nm

    Receive Lane Wavelengths (range) 1260 Nm To 1355 Nm

    Transmitter Output Power, Each Lane (minimum) –8.2 Dbm

    Transmitter Output Power, Each Lane (maximum) 0.5 Dbm

    Receiver Input Power, Each Lane (minimum) –14.4 Dbm

    Receiver Input Power, Each Lane (maximum) 0.5 Dbm

    Receiver Sensitivity (oma), Each Lane (maximum) -12.6 Dbm

    Stressed Receiver Sensitivity (oma) Each Lane (maximum) -10.3 Dbm

    Cable Type Smf

    Core Size/cladding 9/125 Micrometer

    Distance 10 Km

    Maximum Power Consumption (w) 1.0 W

    Operating Temperature (range) 0° C To 70° C

    Storage Temperature –40° C To 85° C

    Typical Weight & Dimensions
  • Width: 14 Mm
  • Height: 12.05 Mm
  • Length: 57.5 Mm
  • Weight: 0.15 Lb

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
