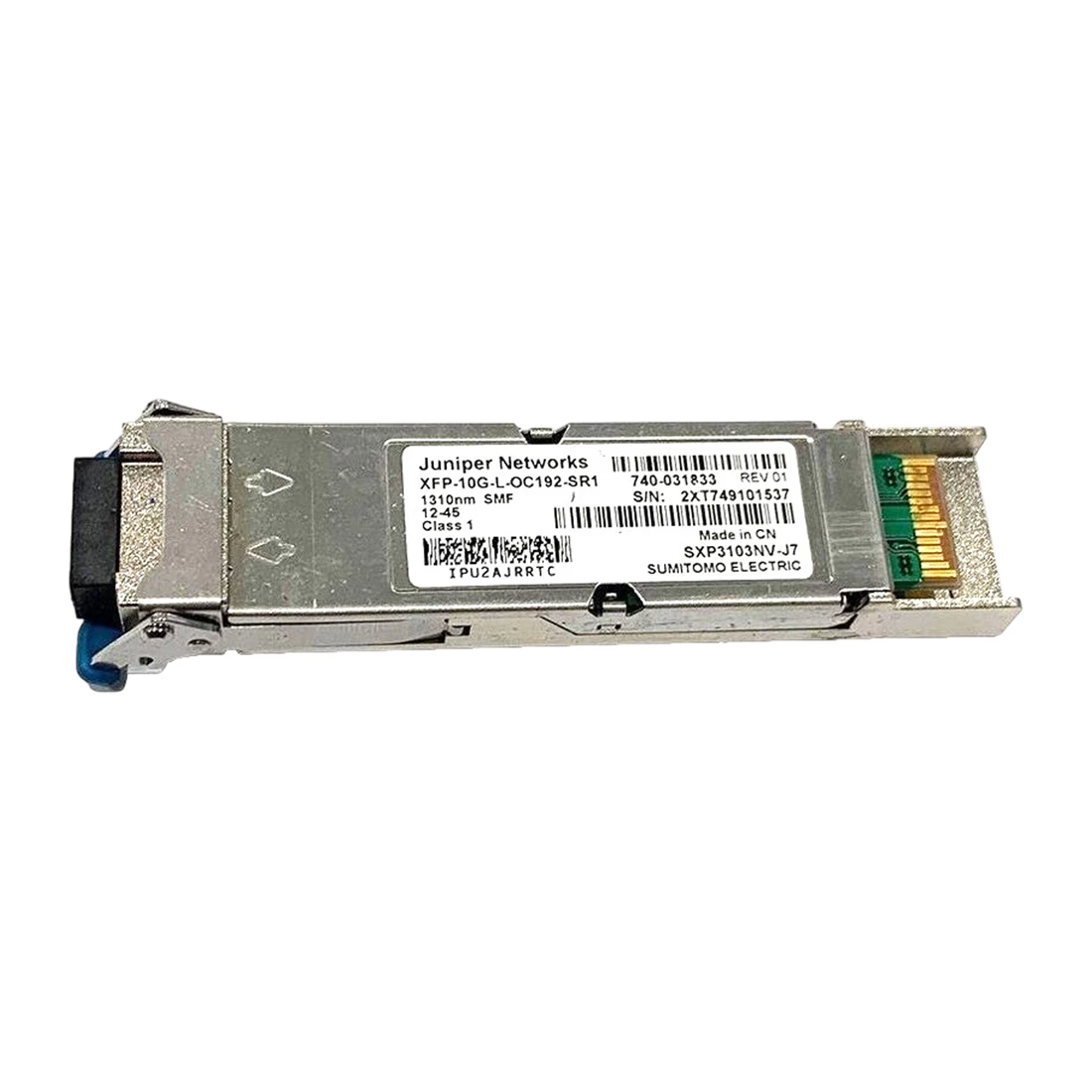

JUNIPER NETWORKS XFP-10G-L-OC192-SR1 Dual Rate 10G pluggable Transceiver for 10GE and OC192 1310nm for 10Km Transmission
XFP-10G-L-OC192-SR1
XFP-10G-L-OC192-SR1
XFP-10G-L-OC192-SR1
XFP-10G-L-OC192-SR1
XFP-10G-L-OC192-SR1

JUNIPER NETWORKS XFP-10G-L-OC192-SR1 Dual Rate 10G pluggable Transceiver for 10GE and OC192 1310nm for 10Km Transmission

Part Number: XFP-10G-L-OC192-SR1
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$190.00
Capacity: 10 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks XFP-10G-L-OC192-SR1 Dual Rate 10g Pluggable Transceiver For 10ge And Oc192 1310nm For 10km Transmission.

Specifications

Digital Diagnostic Monitoring

  • Tx Power
  • Rx Power
  • Tx Bias Current
  • Case Temperature
  • Power Supply Voltage
    Distance 10 Km
    Msa Compliance (sff, For E.g. Sff-8665) inf-8077i
    Max Distance(km) 10
    Maximum Power Consumption (w) 1.7 W
    Nebs (yes Or No) yes
    Operating Temperature (range) –5° C To 75° C
    Optic Type (commercial Vs Service Provider Grade) commercial
    Receive Lane Wavelengths (range) 1260 Nm To 1355 Nm
    Receiver Input Power, Each Lane (maximum) 0.5 Dbm
    Receiver Input Power, Each Lane (minimum) –14.4 Dbm
    Receiver Sensitivity (oma), Each Lane (maximum) -12.6 Dbm
    Signaling Rate, Each Lane 10 Gbps
    Storage Temperature –40° C To 85° C
    Stressed Receiver Sensitivity (oma) Each Lane (maximum) -10.3 Dbm
    Transmitter Fibers smf
    Transmitter Output Power, Each Lane (maximum) 0.5 Dbm
    Transmitter Output Power, Each Lane (minimum) -8.2 Dbm
    Transmitter Wavelengths (range) 1260 Nm To 1355 Nm
    Typical Weight & Dimensions
  • Weight: 0.15 Kg
  • Height: 8.55 Mm
  • Width: 18.5 Mm
  • Depth: 71 Mm
    Cable Type smf
    Distance 10 Km
    Max Distance(km) 10
    Operating Temperature (range) –5° C To 75° C
    Receiver Input Power, Each Lane (maximum) –1.0 Dbm
    Receiver Input Power, Each Lane (minimum) –11 Dbm
    Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) telcordia Gr-253 Oc192 Sr1
    Storage Temperature –40° C To 85° C
    Transmitter Output Power, Each Lane (maximum) –1 Dbm
    Transmitter Output Power, Each Lane (minimum) –6 Dbm
    Transmitter Wavelengths (range) 1290 Nm Through 1330 Nm

    Condition: New
    Availability: In Stock.
    Our Warranty: 90 Days.
