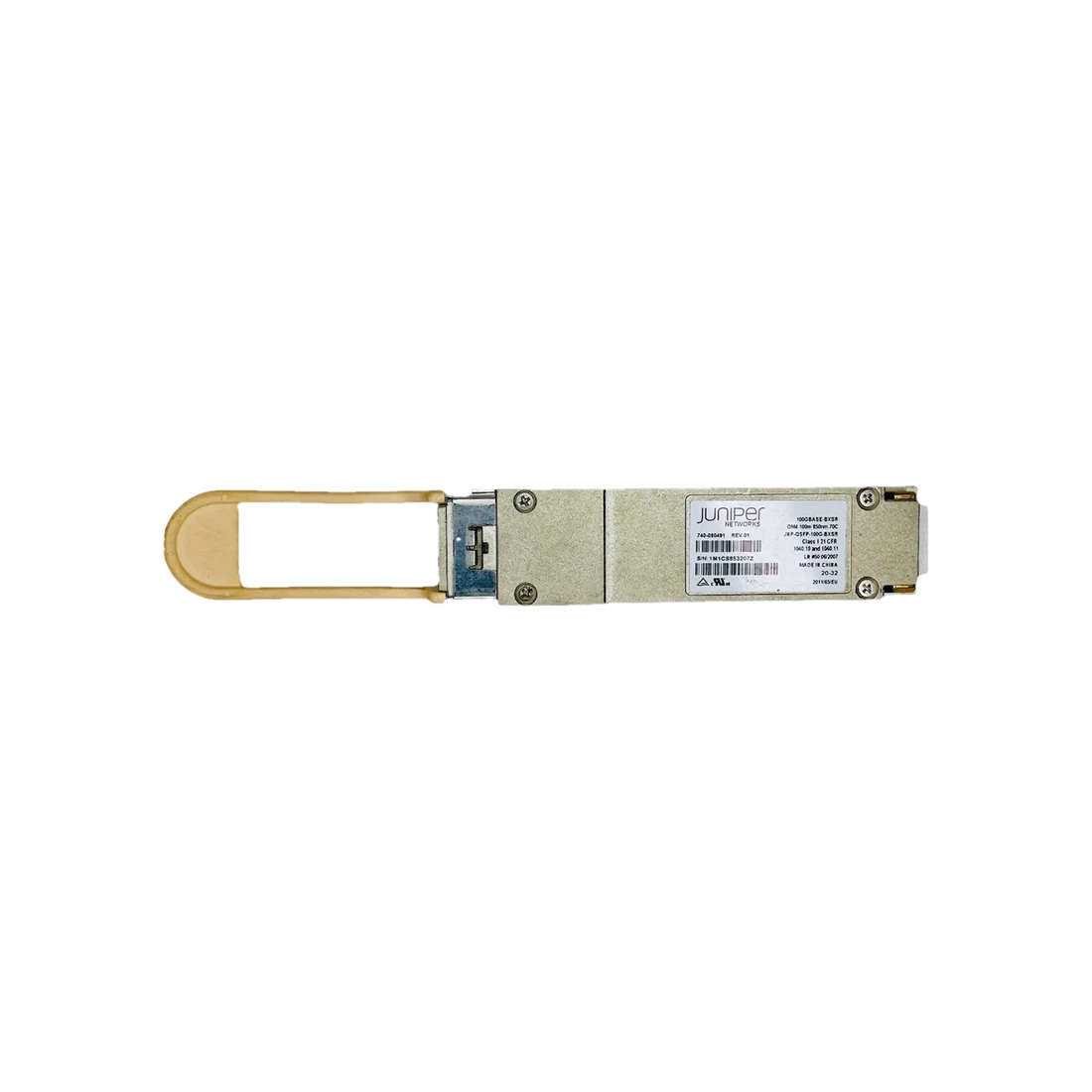

JUNIPER NETWORKS 740-080491 QSFP28 Form Factor 100G bidirectional Transceiver 100M Over OM3/OM4 (SR)
740-080491

JUNIPER NETWORKS 740-080491 QSFP28 Form Factor 100G bidirectional Transceiver 100M Over OM3/OM4 (SR)

Part Number: 740-080491
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$2,200.00
Capacity: 100 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks 740-080491 Qsfp28 Form Factor 100g Bidirectional Transceiver 100m Over Om3/om4 (sr)

Specifications

Cable Type Mmf

Distance 70 M(om3) 100 M(om4).

Effective Modal Bandwidth 2000 Mhz X Km(om3) 4700 Mhz X Km(om4)

Fiber Grade Om3/om4

Msa Compliance (sff, For E.g. Sff-8665) Sff-8636, Sff-8679, Sff-8024

Max Distance(km) 0.1

Maximum Power Consumption (w) 3.5 W

Operating Temperature (range) 0° C To 70° C

Optic Type (commercial Vs Service Provider Grade) Mmf

Receive Lane Wavelengths (range)

  • Wavelength 1: 847nm To 863nm
  • Wavelength 2: 900nm To 916 Nm

    Receiver Input Power, Each Lane (maximum) +4.0 Dbm

    Receiver Input Power, Each Lane (minimum) -7.9 Dbm

    Storage Temperature –40° C To 85° C

    Stressed Receiver Sensitivity (oma) Each Lane (maximum) -3.0 Dbm

    Transmitter Rms Spectral Width (maximum) 0.59 Nm

    Transmitter Output Power, Each Lane (maximum) 4.0 Dbm

    Transmitter Output Power, Each Lane (minimum) 6.0 Dbm

    Transmitter Wavelengths (range)

  • Wavelength 1: 847nm To 863nm
  • Wavelength 2: 900nm To 916 Nm

    Typical Weight & Dimensions
  • Typically Weigh: 100 Grams
  • Dimensions(h X W X D): 13.5 X 18.4 X 72.4 Mm

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
