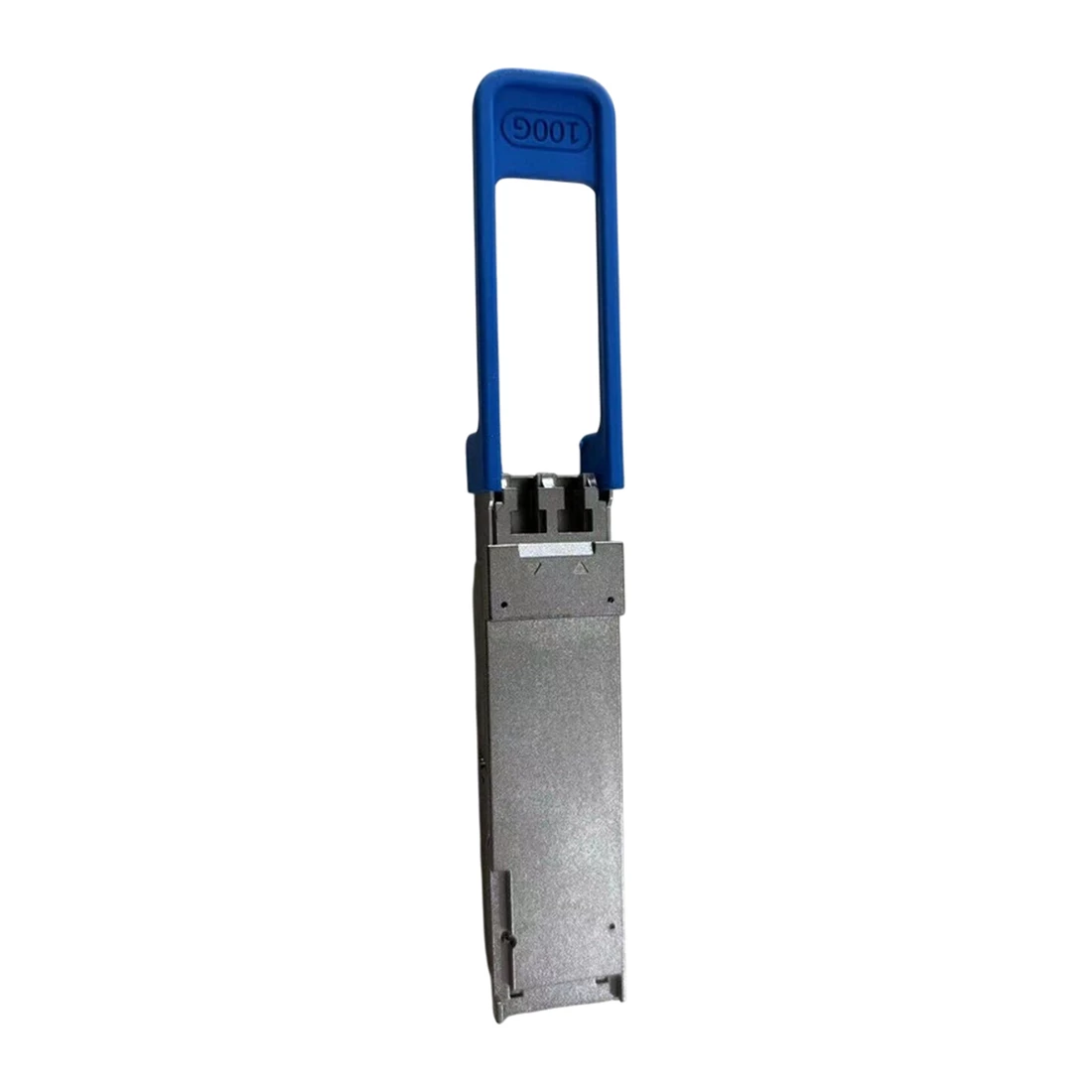

Juniper Networks QSFP-100G-LR QSFP28 100G LR Transceiver
QSFP-100G-LR

Juniper Networks QSFP-100G-LR QSFP28 100G LR Transceiver

Part Number: QSFP-100G-LR
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$1,100.00
Capacity: 100 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks Qsfp28 100g-lr/100gbase-lr1, Media-side Rs (544,514) Fec Enabled, Host-side Caui-4 No Fec, Smf 10 Km, Standard Temperature (0 Through 70°c), Duplex Lc Connector

Specifications

Speed 100 Gigabit Ethernet

Breakout Capable No

Transceiver Type Qsfp28

Product Type Optical Transceiver

Connector Duplex Lc Pc/upc

Monitoring Available Yes

Digital Optical Monitoring Yes

Additional Information These Transceivers Interoperate With The Qdd-4x100g Breakout Optics. For Example, The Qdd-4x100g-lr Interconnects With Four QSFP-100G-LR Transceivers. The QSFP-100G-LR Transceivers Interconnect In Single Links (QSFP-100G-LR To QSFP-100G-LR Or To Qsfp-100g-fr) And Interoperate At The Shortest Link Length. The QSFP-100G-LR Transceivers Are Not Compatible With Earlier-generation 100-gbps Transceivers (for Example, Qsfp-100g-cwdm4 And QSFP-100G-LR4).

Standards 100g Lambda Msa, 100g-lr Ieee P802.3cu, 100gbase-lr1

Msa Compliance (sff, For E.g. Sff-8665) Sff-8665

Digital Diagnostic Monitoring

  • Transceiver Temperature
  • Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power

    Supported Applications 100g-lr Or 100gbase-lr1 (clause 140), Caui-4 (no Fec)

    Signaling Rate, Each Lane
  • Host Lane: Nrz, 25.78125 Gbd ± 100 Ppm
  • Media Lane: Pam4, 53.125 Gbd ± 100 Ppm

    Transmitter Fibers 1

    Transmitter Wavelengths (range) 1304.5 Nm To 1317.5 Nm

    Receive Lane Wavelengths (range) 1304.5 Nm To 1317.5 Nm

    Transmitter Output Power, Each Lane (minimum) 1.4 Dbm

    Transmitter Output Power, Each Lane (maximum) 4.5 Dbm

    Transmitter And Dispersion Eye Closure For Pam4 (tdecq), Each Lane (maximum) 3.4 Db

    Receiver Input Power, Each Lane (minimum) -8.2 Dbm

    Receiver Input Power, Each Lane (maximum) 4.8 Dbm

    Stressed Receiver Sensitivity (oma) Each Lane (maximum) -4.1 Dbm

    Cable Type Smf

    Core Size/cladding 9/125 Μm

    Fiber Grade Ieee Clause 140.10.1: Iec 60793-2-50 Type B1.1, Type B1.3, Or Type B6_a Or Requirements In Ieee Table 140–13 Where They Differ.

    Distance 10 Km

    Maximum Power Consumption (w) 4.0 W

    Operating Temperature (range) 0° C To 70° C

    Storage Temperature –40° C To 85° C

    Typical Weight & Dimensions
  • Weight: 0.2 Kg
  • Height: 13.5 Mm
  • Width: 18.35 Mm
  • Depth: 73.4 Mm

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
