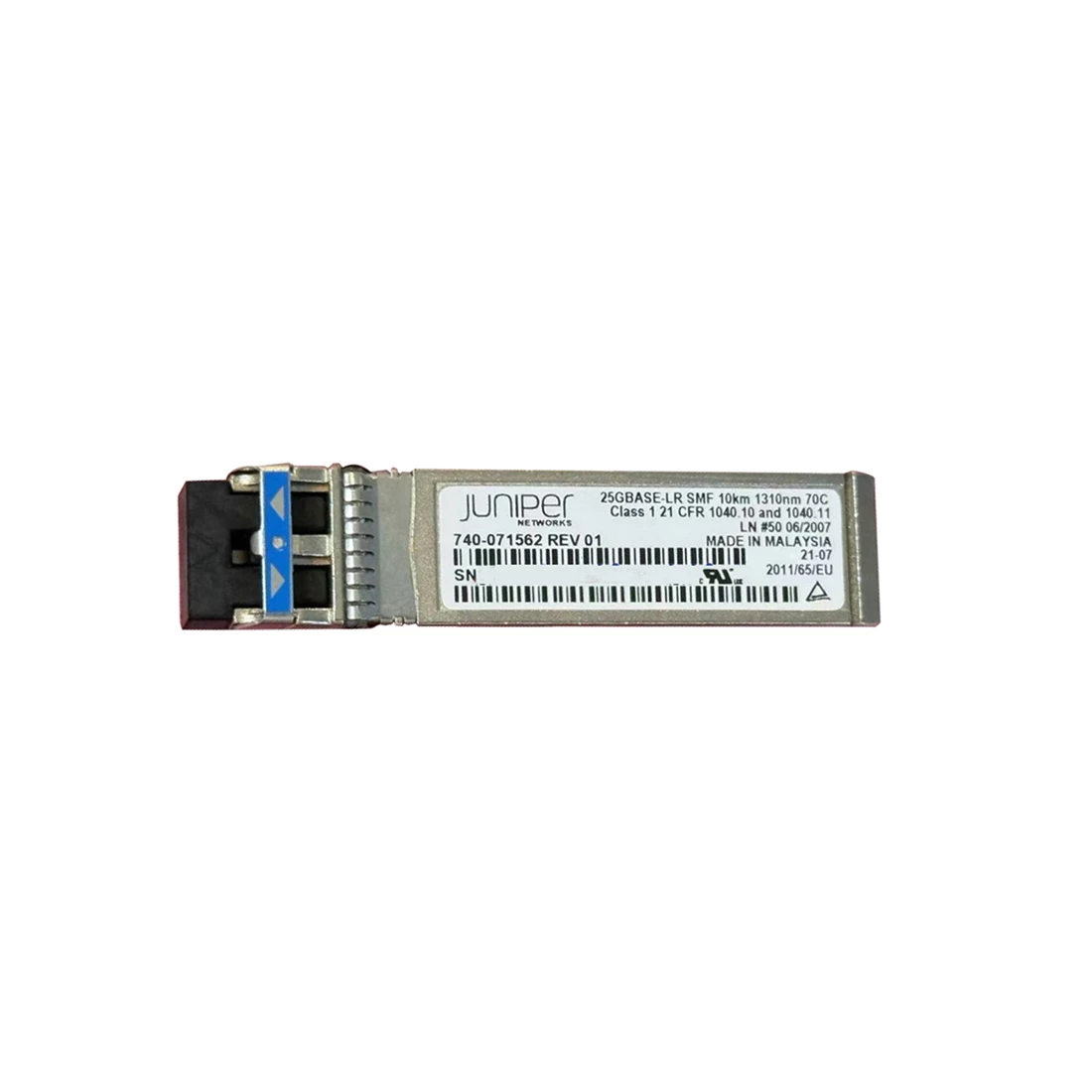

Juniper Networks 740-071562 SFP28 25GE LR 1310nm Transceiver
740-071562
740-071562
740-071562
740-071562
740-071562

Juniper Networks 740-071562 SFP28 25GE LR 1310nm Transceiver

Part Number: 740-071562
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$715.00
Capacity: 25 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks 740-071562 Sfp28 25ge Lr 1310nm Transceiver

Specifications

Cable Type: Smf

Core Size/cladding: 9/125 Mm

Digital Diagnostic Monitoring:

  • Transceiver Temperature
  • Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power

    Distance: 10 Km

    Fiber Grade: Smf

    Msa Compliance (sff, For E.g. Sff-8665): Sff-8402

    Max Distance(km): 10

    Maximum Power Consumption (w): 1.5 W

    Nebs (yes Or No): No

    Operating Temperature (range): 0(d) C To 70(d) C

    Receive Lane Wavelengths (range): 1295 To 1325 Nm

    Receiver Input Power, Each Lane (maximum): 2 Dbm

    Receiver Input Power, Each Lane (minimum): -13.3 Dbm

    Receiver Sensitivity (oma), Each Lane (maximum): -12 Dbm

    Side-mode Suppression Ratio (smsr), (minimum): 30 Db

    Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4): 25gbase-lr

    Storage Temperature: –40(d) C To 85(d) C

    Stressed Receiver Sensitivity (oma) Each Lane (maximum):-9.5 Dbm

    Transmitter Fibers: 1

    Transmitter Output Power, Each Lane (maximum): 2 Dbm

    Transmitter Output Power, Each Lane (minimum): -7 Dbm

    Transmitter Wavelengths (range): 1295 To 1325 Nm

    Typical Weight & Dimensions
  • Weight: 0.15 Kg
  • Height: 8.55 Mm
  • Width: 13.55 Mm
  • Depth: 57.5 Mm

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
