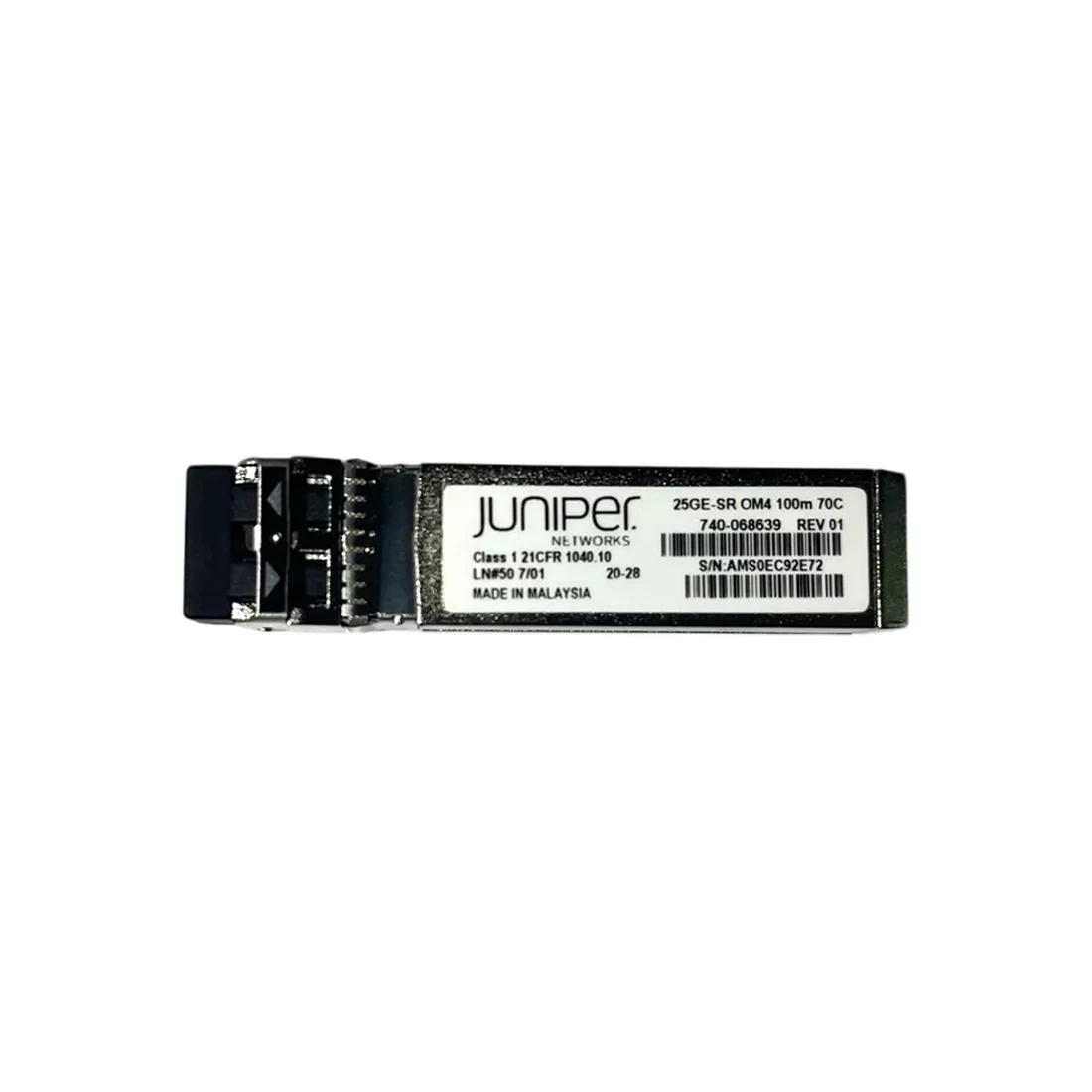

Juniper Networks SFP-25G-SR-C SFP-28, 25G-SR Transceiver
SFP-25G-SR-C
SFP-25G-SR-C
SFP-25G-SR-C
SFP-25G-SR-C
SFP-25G-SR-C

Juniper Networks SFP-25G-SR-C SFP-28, 25G-SR Transceiver

Part Number: SFP-25G-SR-C
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$290.00
Capacity: 25 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks SFP-25G-SR-C 25gbase-sr Sfp28 Module For Mmf

Specifications

Speed 25 Gigabit Ethernet

Breakout Capable No

Transceiver Type Sfp28

Product Type Optical Transceiver

Connector Duplex Lc

Monitoring Available Yes

Digital Optical Monitoring Yes

Msa Compliance (sff, For E.g. Sff-8665) Sff-8402

Optic Type (commercial Vs Service Provider Grade) Commercial

Digital Diagnostic Monitoring

  • Transceiver Temperature
  • Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power

    Signaling Rate, Each Lane 25.78125 Gbd +/- 100 Ppm

    Transmitter Fibers 1

    Transmitter Wavelengths (range) 840 Nm To 860 Nm

    Receive Lane Wavelengths (range) 840 To 860 Nm

    Transmitter Rms Spectral Width (maximum) 0.6 Nm

    Transmitter Output Power, Each Lane (minimum) -8.4 Dbm

    Transmitter Output Power, Each Lane (maximum) 2.4 Dbm

    Receiver Input Power, Each Lane (minimum) -10.3 Dbm

    Receiver Input Power, Each Lane (maximum) 2.4 Dbm

    Receiver Sensitivity (oma), Each Lane (maximum) N/a

    Stressed Receiver Sensitivity (oma) Each Lane (maximum) -5.2 Dbm

    Cable Type Smf

    Core Size/cladding 50/125 Micrometre

    Fiber Grade Om3/om4

    Effective Modal Bandwidth 2000 Mhz X Km(om3), 4700 Mhz X Km(om4).

    Distance 70m (om3), 100m(om4).

    Maximum Power Consumption (w) 1.5 W

    Operating Temperature (range) 0° C To 70° C

    Storage Temperature 40° C To 85° C

    Typical Weight & Dimensions
  • Weight: 0.15 Kg
  • Height: 8.55 Mm
  • Width: 13.55 Mm
  • Depth: 57.5 Mm

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
