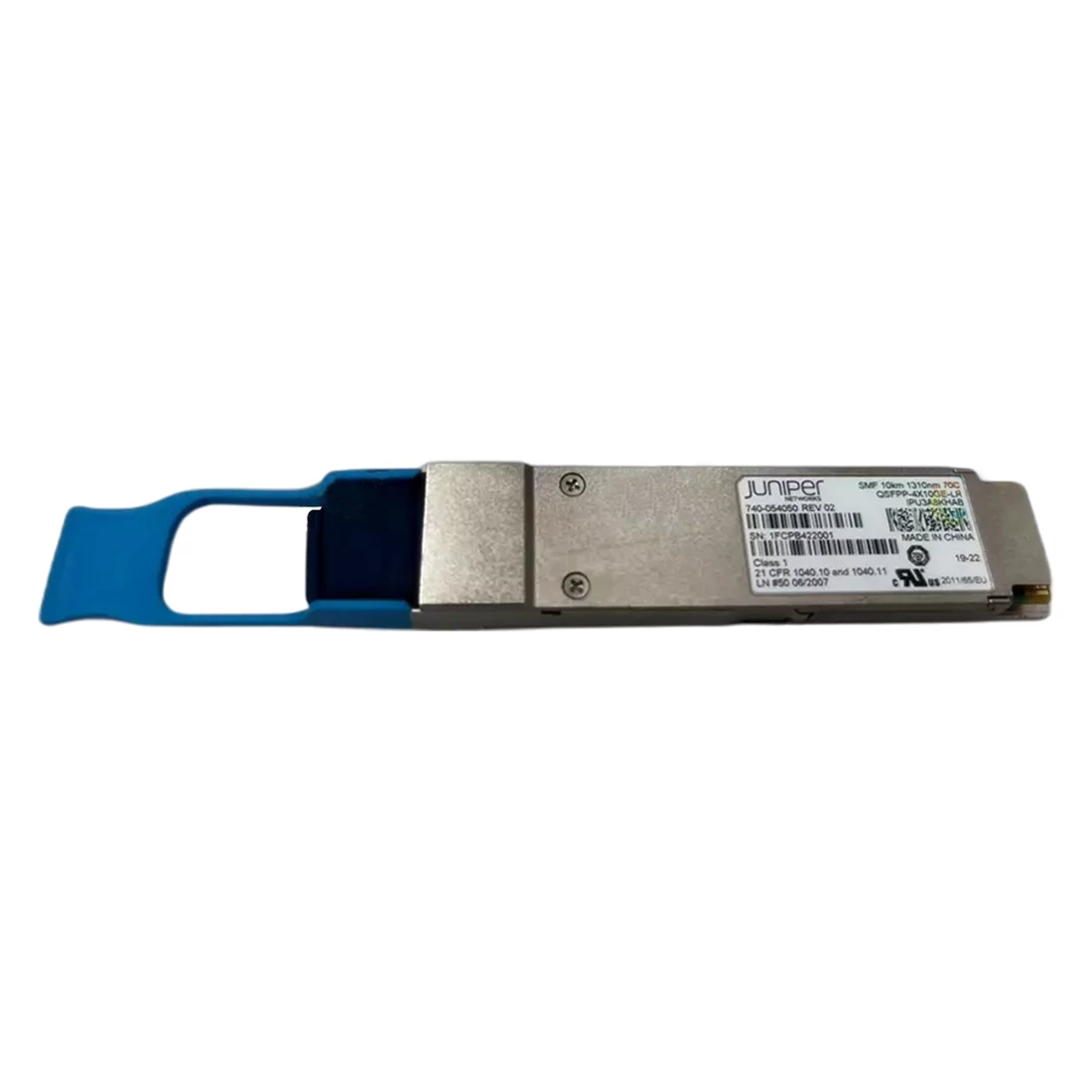

** Image may not exactly match product **
Juniper Networks 740-057315 QSFP+ 40G breakout into 4x10GBASE LR up to 10km SMF MPO-12 APC
740-057315
740-057315
740-057315
740-057315
740-057315

Juniper Networks 740-057315 QSFP+ 40G breakout into 4x10GBASE LR up to 10km SMF MPO-12 APC

Part Number: 740-057315
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$545.00
Capacity: 40 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks 740-057315 Qsfp+ 40g Breakout Into 4x10gbase Lr Up To 10km Smf Mpo-12 Apc Receptacle Transceiver

Specifications

Speed 4 X 10 Gigabit Ethernet

Breakout Capable Yes

Transceiver Type Qsfp+

Product Type Optical Transceiver

Connector Mpo-12 Apc

Monitoring Available Yes

Digital Optical Monitoring Yes

Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) Ieee 802.3 Clause 52

Digital Diagnostic Monitoring

  • Transceiver Temperature
  • Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power
  • Signaling Rate, Each Lane

    Signaling Rate, Each Lane
  • 10gbase-lr: 10.3125 Gbps
  • 10gbase-lw: 9.95428 Gbps

    Transmitter Wavelengths (range) 1260 Nm Through 1355 Nm

    Transmitter Output Power, Each Lane (minimum) –6.5 Dbm

    Transmitter Output Power, Each Lane (maximum) 0.5 Dbm

    Receiver Input Power, Each Lane (minimum) –14.4 Dbm

    Receiver Input Power, Each Lane (maximum) 1.5 Dbm

    Cable Type Smf

    Core Size/cladding 9/125 Micrometer

    Distance 10 Km

    Maximum Power Consumption (w) 3.5 W

    Operating Temperature (range) 0° C To 70° C

    Storage Temperature –40° C To 85° C

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
