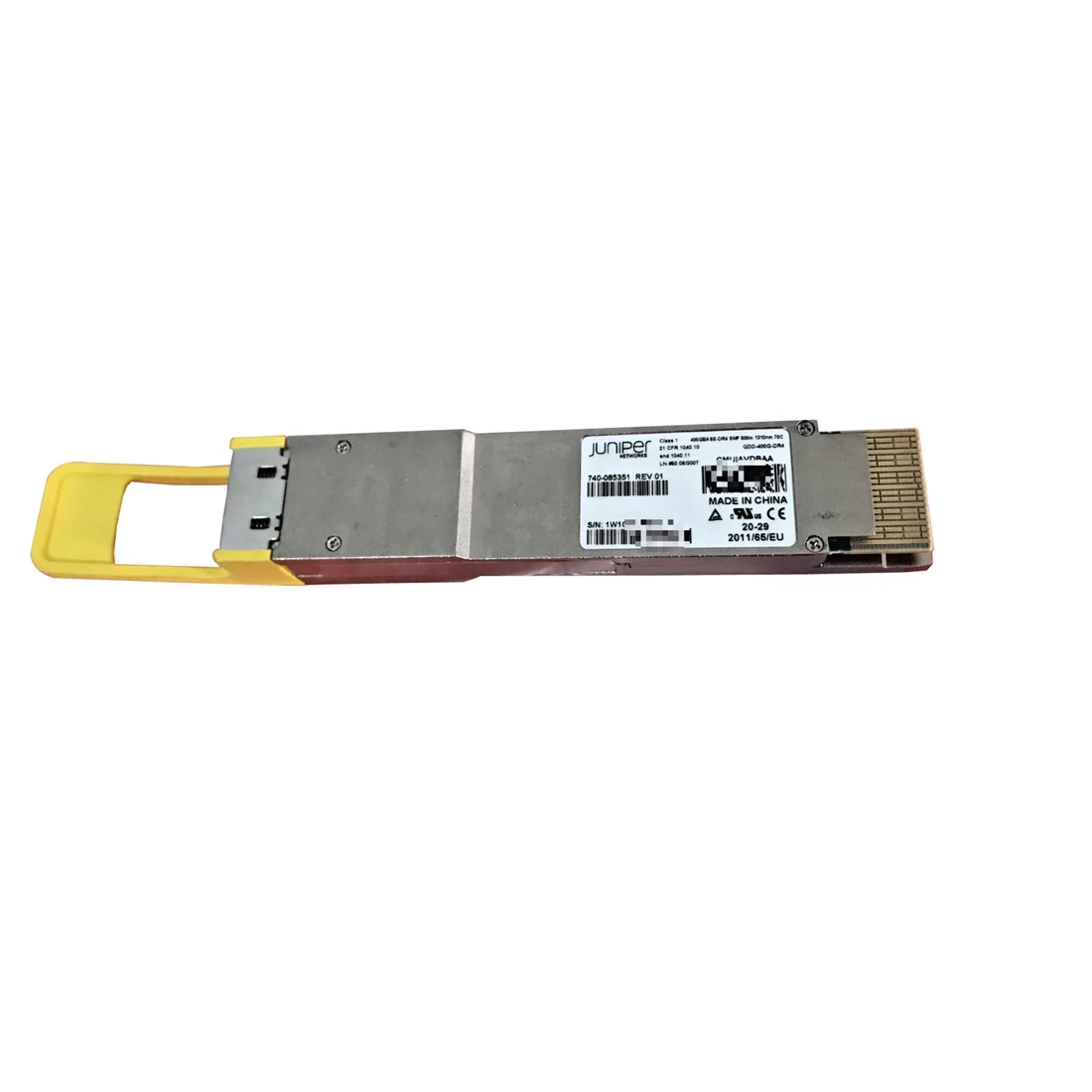

Juniper Networks QDD-400G-DR4 QSFP-DD 400GBASE-DR4/4X100GBASE-DR SMF 500m MPO-12 connector
QDD-400G-DR4

Juniper Networks QDD-400G-DR4 QSFP-DD 400GBASE-DR4/4X100GBASE-DR SMF 500m MPO-12 connector

Part Number: QDD-400G-DR4
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$1,550.00
Capacity: 400 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks QDD-400G-DR4 Qsfp-dd 400gbase-dr4/4x100gbase-dr Smf 500m Mpo-12 Connector

Specifications

  • Speed: 4 X 100 Gigabit Ethernet, 400 Gigabit Ethernet
  • Breakout Capable: Yes
  • Form Factor: Qsfp-dd
  • Product Type: Optical Transceiver
  • Connector: Mpo-12/apc
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 400g Dr4 And 100g Dr
  • Msa Compliance (sff, For E.g. Sff-8665):
    - Qsfp-dd Msa, Qsfp-dd Hardware Specification For Qsfp Double Density 8x Pluggable Transceiver
    - Common Management Interface Specification For 8x/16x Pluggable Transceivers Rev 3.0
  • Digital Diagnostic Monitoring:
    - Transceiver Temperature
    - Transceiver Supply Voltage
    - Tx Bias Current
    - Tx Output Power
    - Rx Received Optical Power
  • Signaling Rate Each Lane:
    - Host Lane: 26.5625 Gbd Pam4 +/-100 Ppm
    - Media Lane: 53.125 Gbd Pam4 +/-100 Ppm
  • Transmitter Fibers: 8
  • Transmitter Wavelengths (range): 1304.5 Nm To 1317.5 Nm
  • Receive Lane Wavelengths (range): 1304.5 Nm To 1317.5 Nm
  • Transmitter Output Power Each Lane (minimum): -2.9 Dbm
  • Transmitter Output Power Each Lane (maximum): 4 Dbm
  • Transmitter And Dispersion Eye Closure For Pam4 (tdecq) Each Lane (maximum): 3.4 Dbm
  • Receiver Input Power Each Lane (minimum): -5.9 Dbm
  • Receiver Input Power Each Lane (maximum): 4 Dbm
  • Receiver Sensitivity (oma) Each Lane (maximum): Max (-3.9, Secq -5.3) Dbm
  • Stressed Receiver Sensitivity (oma) Each Lane (maximum): -1.9 Dbm
  • Cable Type: Smf
  • Core Size/cladding: 9/125 Μm
  • Distance: 500 M
  • Maximum Power Consumption (w): 12 W
  • Operating Temperature (range): 0c To 70c
  • Storage Temperature: – 40 C To 85 C
  • Typical Weight & Dimensions:
    - Weight: 0.2 Kg
    - Height: 13.5 Mm
    - Width: 18.35 Mm
    - Depth: 93.26 Mm

    Condition: New.
    Availability: In Stock.
    Our Warranty: 90 Days.
