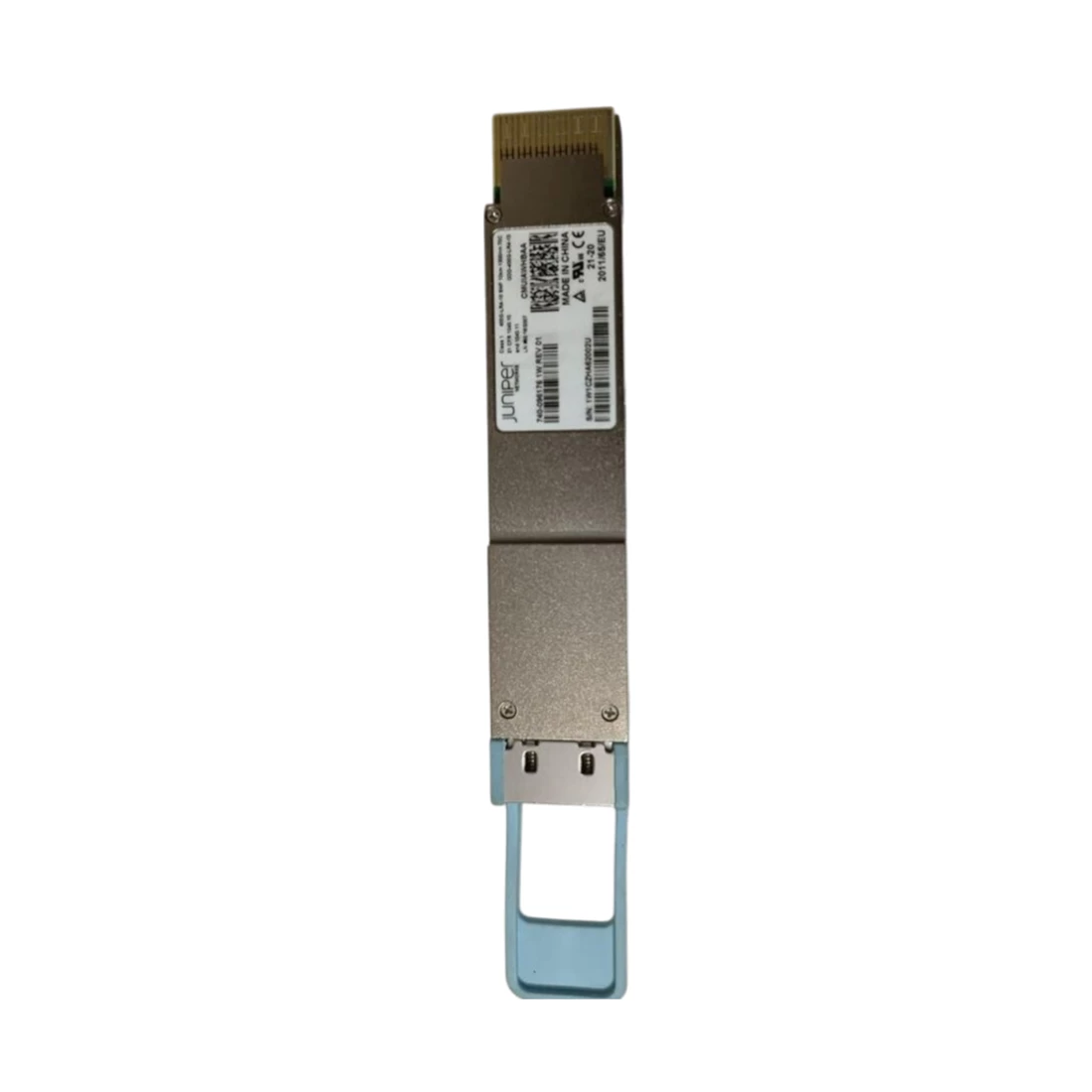

Juniper Networks QDD-400G-LR4-10 SMF 10 km Standard Temperature (0 through 70°C) Duplex LC/PC Receptacle Transceiver
QDD-400G-LR4-10
QDD-400G-LR4-10
QDD-400G-LR4-10
QDD-400G-LR4-10
QDD-400G-LR4-10

Juniper Networks QDD-400G-LR4-10 SMF 10 km Standard Temperature (0 through 70°C) Duplex LC/PC Receptacle Transceiver

Part Number: QDD-400G-LR4-10
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$5,350.00
Capacity: 400 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks QDD-400G-LR4-10 Smf 10 Km Standard Temperature (0 Through 70°c) Duplex Lc/pc Receptacle

Specifications

  • Speed: 400 Gigabit Ethernet
  • Breakout Capable: No
  • Form Factor: Qsfp-dd
  • Product Type: Optical Transceiver
  • Connector: Duplex Lc Pc/upc
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 100g Lambda Msa, 400g-lr4-10, Ieee Std 802.3cu, 400gbase-lr4-6
  • Msa Compliance (sff, For E.g. Sff-8665):
    - Qsfp-dd Msa, Qsfp-dd Hardware Specification For Qsfp Double Density 8x Pluggable Transceivers, Rev 5.1
    - Common Management Interface Specification (cmis), Rev 4.0
  • Digital Diagnostic Monitoring:
    - Temperature
    - Supply Voltage
    - Tx Bias Current
    - Tx Power
    - Rx Power
  • Signaling Rate Each Lane:
    - Host Lane: Pam4, 26.5625 Gbd ± 100 Ppm
    - Media Lane: Pam4, 53.125 Gbd ± 100 Ppm
  • Transmitter Fibers: 1
  • Transmitter Wavelengths (range):
    - 1264.5 Nm To 1277.5 Nm
    - 1284.5 Nm To 1297.5 Nm
    - 1304.5 Nm To 1317.5 Nm
    - 1324.5 Nm To 1337.5 Nm
  • Receive Lane Wavelengths (range):
    - 1264.5 Nm To 1277.5 Nm
    - 1284.5 Nm To 1297.5 Nm
    - 1304.5 Nm To 1317.5 Nm
    - 1324.5 Nm To 1337.5 Nm
  • Transmitter Output Power Each Lane (minimum): -2.7 Dbm
  • Transmitter Output Power Each Lane (maximum): 5.1 Dbm
  • Transmitter And Dispersion Eye Closure For Pam4 (tdecq) Each Lane (maximum): 3.9 Db
  • Receiver Input Power Each Lane (minimum): -9 Dbm
  • Receiver Input Power Each Lane (maximum): 5.1 Dbm
  • Stressed Receiver Sensitivity (oma) Each Lane (maximum): -4.3 Dbm
  • Cable Type: Smf
  • Core Size/cladding: 9/125 Micro-meter
  • Distance: 10 Km
  • Maximum Power Consumption (w): 12 W
  • Operating Temperature (range): 0° C To 70° C
  • Storage Temperature: –40° C To 85° C
  • Typical Weight & Dimensions:
    - Weight: 0.2 Kg
    - Height: 13.5 Mm
    - Width: 18.35 Mm
    - Depth: 93.26 Mm

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
