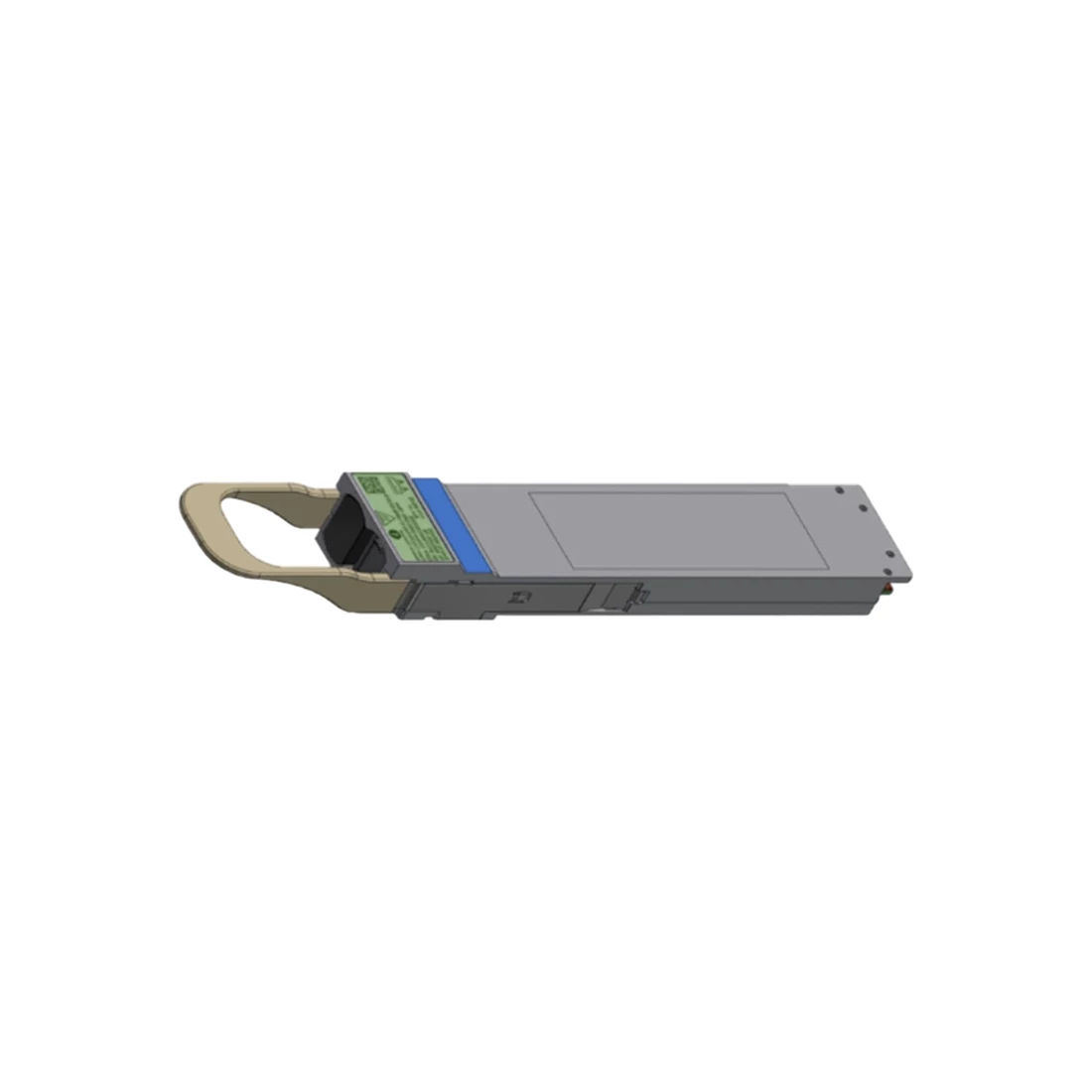

NVIDIA MMA4Z00-NS400-T Single Port Transceiver 400gbps 400gbe Osfp Mpo12 Apc 850nm Mmf Up To 50m Flat Top
Introduction
The NVIDIA MMA4Z00-NS400-T Is An Ethernet (eth) 400gb/s, Single-port, Osfp, Multimode Parallel Transceiver Using A Single, 4-channel Mpo-12/apc Optical Connector. The Short Reach 4-channel (sr4) Design Uses 100g-pam4 Modulation And Has A Maximum Fiber Reach Of 50-meters Using Om4 Multimode Fiber And Assumes Two Optical Patch Panels In The Link. It Has Identical Design And Internals As The Qsfp112 Version, Only With Different Connector Shells
The Osfp Shell Has A Flat-top And Utilizes The Riding Heat Sink (cooling Fins) On The Connectx-7 Connector Cage
When Linked To 1:2 Splitter Fiber Cable Split End Has Only 2 Channels And Will Activate Only 2-channels In The 400g Transceiver Automatically Creating A 200g Speed And Reducing Power.
Multimode Optics Is Denoted By A Tan-colored Pull Tab And Aqua-colored Optical Fiber. Green Plastic Shell On The Mpo-12/apc Optical Connector Denotes Angled Polish Connector And Is Not Compatible With Ultra-flat Polished Connectors (upc) (aqua Colored).
NVIDIAS Single-port And Twin-port Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Systems And Customer Networking Solutions. Rigorous Production Testing Ensures The Best Out-of-the-box Installation Experience, Performance, And Durability.
Key Features
Eth Support
400g Sr4 Multimode
4-channels Of 100g-pam4 Electrical And Optical Modulation
Flat Top Osfp Connector Shell
850nm Vcsel
Maximum Reach:
- 30m Using Om3 Fiber
- 50m Using Om4 Fiber
Single Mpo-12/apc Optical Connector
Operates As A 200gb/e Transceiver With 2-fiber Splitter Ends
8.5 Watts (max) Using 4-channels
5.5 Watts (max) Using 2-channels
Single 3.3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Compliant
Osfpmsa.org Compliant
Cmis 4.0 Compliant
Case Temperature Range 0°c To +70°c
Applications
Used In Connectx-7/osfp Adapters Linked To Twin-port Transceivers In 2x400g Eth Switches
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
