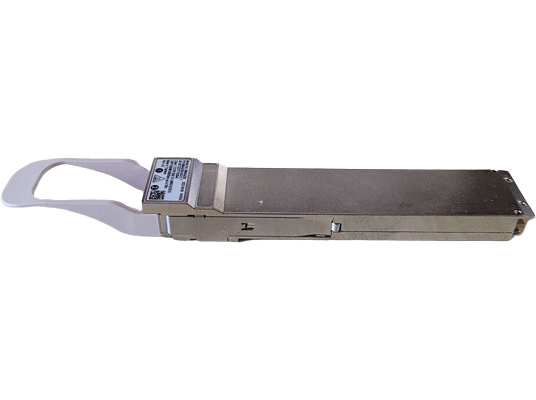

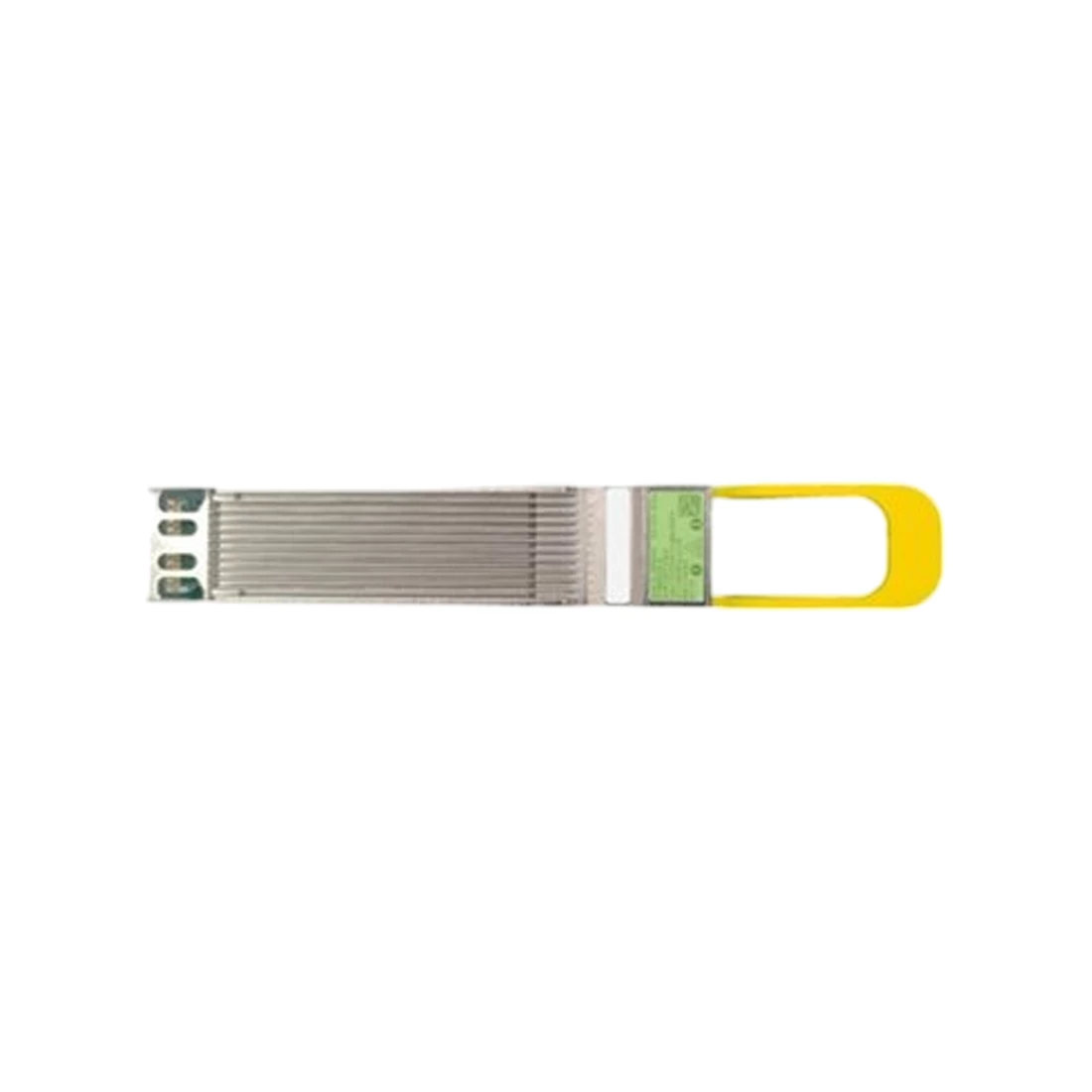

NVIDIA 980-9I30H-F4NM00 Twin Port Transceiver 800Gbps 2x400GbE OSFP 2xMPO12 APC 1310nm SMF Up to 100m Finned
980-9I30H-F4NM00
980-9I30H-F4NM00
980-9I30H-F4NM00
980-9I30H-F4NM00
980-9I30H-F4NM00

NVIDIA 980-9I30H-F4NM00 Twin Port Transceiver 800Gbps 2x400GbE OSFP 2xMPO12 APC 1310nm SMF Up to 100m Finned

Part Number: 980-9I30H-F4NM00
BRAND: NVIDIA | More NETWORKING from NVIDIA
$2,550.00
Capacity: 800 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA 980-9I30H-F4NM00 Twin Port Transceiver 800gbps 2x400gbe Osfp 2xmpo12 Apc 1310nm Smf Up To 100m Finned

Specifications

Overview

  • The NVIDIA Mms4x00-ns-t Is An Ethernet 800gb/s 2x400gb/s Twin-port Osfp, 2xdr4 Single Mode, Parallel, 8-channel Transceiver Using Two, 4-channel Mpo-12/apc Optical Connectors At 400gb/s Each. The Parallel Single Mode, Datacenter Reach 8-channel (2xdr4) Design Uses 100g-pam4 Modulation, And Has A Maximum Fiber Reach Of 100-meters Using 8 Single Mode Fibers. The 100-meter Length Assumes Two Optical Patch Panels In The Link.

  • The Twin-port 2xdr4 Transceiver Is A Key NVIDIA Innovation With Two Internal Transceiver Engines Enabling 128-ports Of 400gb/s In A 64 Cages Spectrum-4 Switches.

  • The Spectrum-4 Switches Require Finned-top Osfp Shells For Extra Transceiver Cooling. The Main Application For Mms4x00-ns-t Is Linking Two Switches Together With Up To 100-meters.

  • The Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Ethernet Systems And A Rigorous Production Tested To Ensure The Best Out-of-the-box Installation Experience, Performance, And Durability

    Key Features
  • 800g 2xdr4 Single Mode Transceiver
  • 8-channels Of 100g-pam4 Electrical Modulation
  • Two Mpo-12/apc Optical Connectors
  • Two Ports Of 4-channel 100g-pam4 Optical Modulation
  • Supports Two Straight 400gb/s Or Two 1:2 Splitter Fiber Cables For 200gb/s
  • Finned-top Osfp For Air-cooled Switches
  • 1310nm Eml Laser
  • Maximum Reach: 100m
  • 17-watts Max Power
  • Single 3.3v Power Supply
  • Class 1 Laser Safety
  • Hot Pluggable, Rohs Compliant
  • Osfpmsa.org Compliant
  • Cmis 4.0 Compliant
  • Case Temperature Range Of 0°c To +70°c

    Applications
  • Used In Spectrum-4 Air-cooled Switches

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
