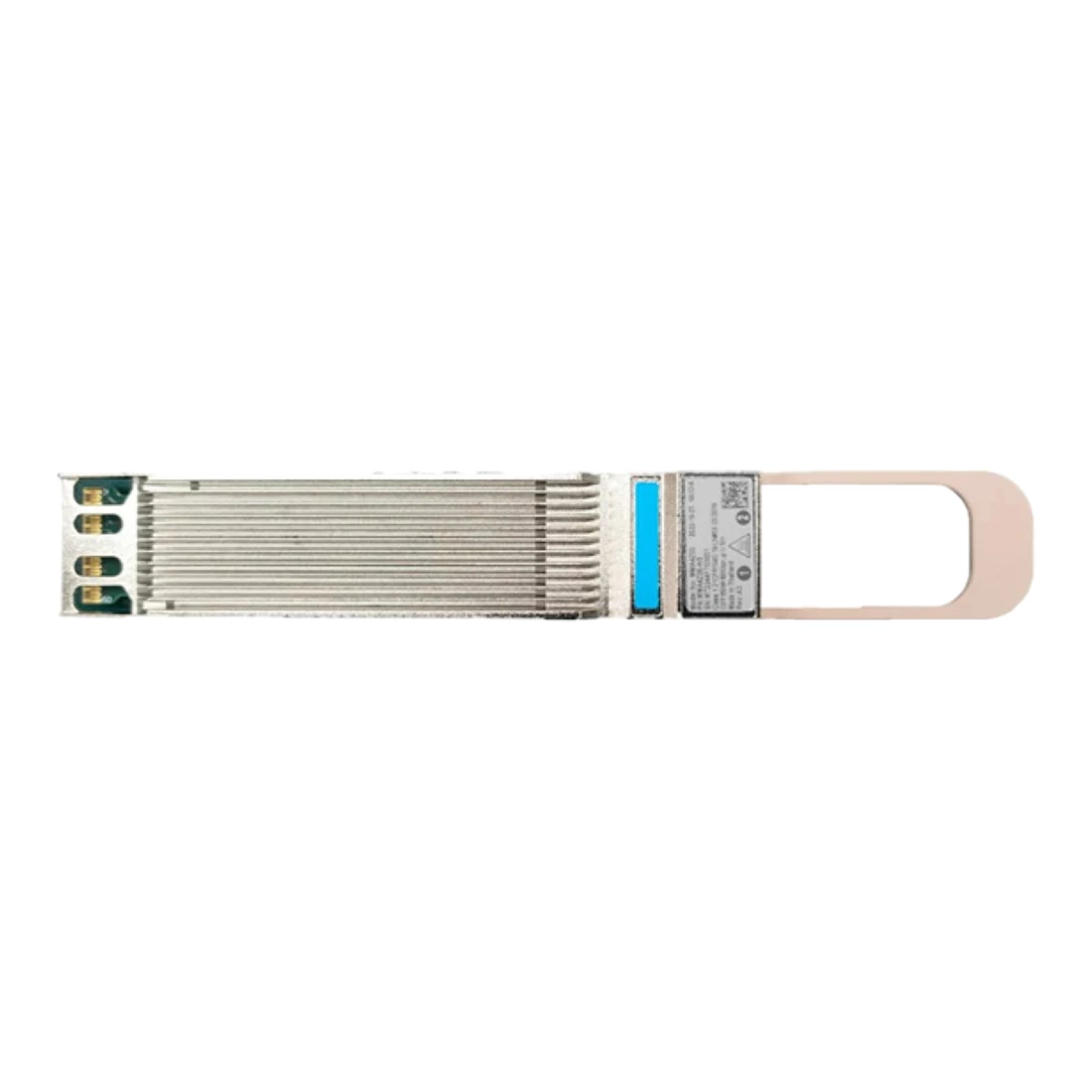

NVIDIA MMA4Z00-NS-T 800Gb/s Twin-port OSFP 2x400Gb/s Multimode 50m Transceiver
MMA4Z00-NS-T
MMA4Z00-NS-T
MMA4Z00-NS-T
MMA4Z00-NS-T
MMA4Z00-NS-T

NVIDIA MMA4Z00-NS-T 800Gb/s Twin-port OSFP 2x400Gb/s Multimode 50m Transceiver

Part Number: MMA4Z00-NS-T
BRAND: NVIDIA | More NETWORKING from NVIDIA
$1,550.00
Capacity: 800 GIGABIT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA MMA4Z00-NS-T 800gb/s Twin-port Osfp 2x400gb/s Multimode 50m Transceiver

Overview

The NVIDIA MMA4Z00-NS-T Is An Ethernet 800gb/s (2x400gb/s) Twin-port Osfp, Dr8 Multimode, Parallel, 8-channel Transceiver Using Two, 4-channel Mpo-12/apc Optical Connectors At 400gb/s Each. The Parallel Multimode, Short Reach 8-channel Uses 100g-pam4 Modulation And Has A Maximum Fiber Reach Of 50-meters Using 8 Multimode Fibers. The 50-meter Length Assumes Two Optical Patch Panels In The Link.

The Spectrum-4 Switches Require Finned-top Osfp Shells For Extra Transceiver Cooling. The Main Application For MMA4Z00-NS-T Is Linking Two Switches Together With Up To 50-meter Transceivers (marked Blue).

The Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Systems And Customer Networking Solutions. Rigorous Production Testing Ensures The Best Out-of-the-box Installation Experience, Performance, And Durability.

Key Features

  • Ethernet
  • 800g Multimode Transceiver
  • 8-channels Of 100g-pam4 Electrical Modulation
  • Two Ports Of 4-channel 100g-pam4 Optical Modulation
  • Supports Two Straight 400gb/s Or Two 1:2 Splitter Fiber Cables For 200gb/s
  • Finned-top Osfp For Air-cooled Switches
  • 850nm Vcsel
  • Maximum Reach:
    - 30m Using Om3 Fiber
    - 50m Using Om4 Fiber
  • Two Mpo-12/apc Optical Connectors
  • 17 Watts Max Power
  • 2.0 Watt Low-power Sleep Mode
  • Single 3.3v Power Supply
  • Class 1 Laser Safety
  • Hot Pluggable, Rohs Compliant
  • Osfpmsa.org Compliant
  • Cmis 4.0 Compliant
  • Case Temperature Range 0°c To +70°c

    Applications
  • Used In Sepectrum-4 Switches

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
