| Product Overview

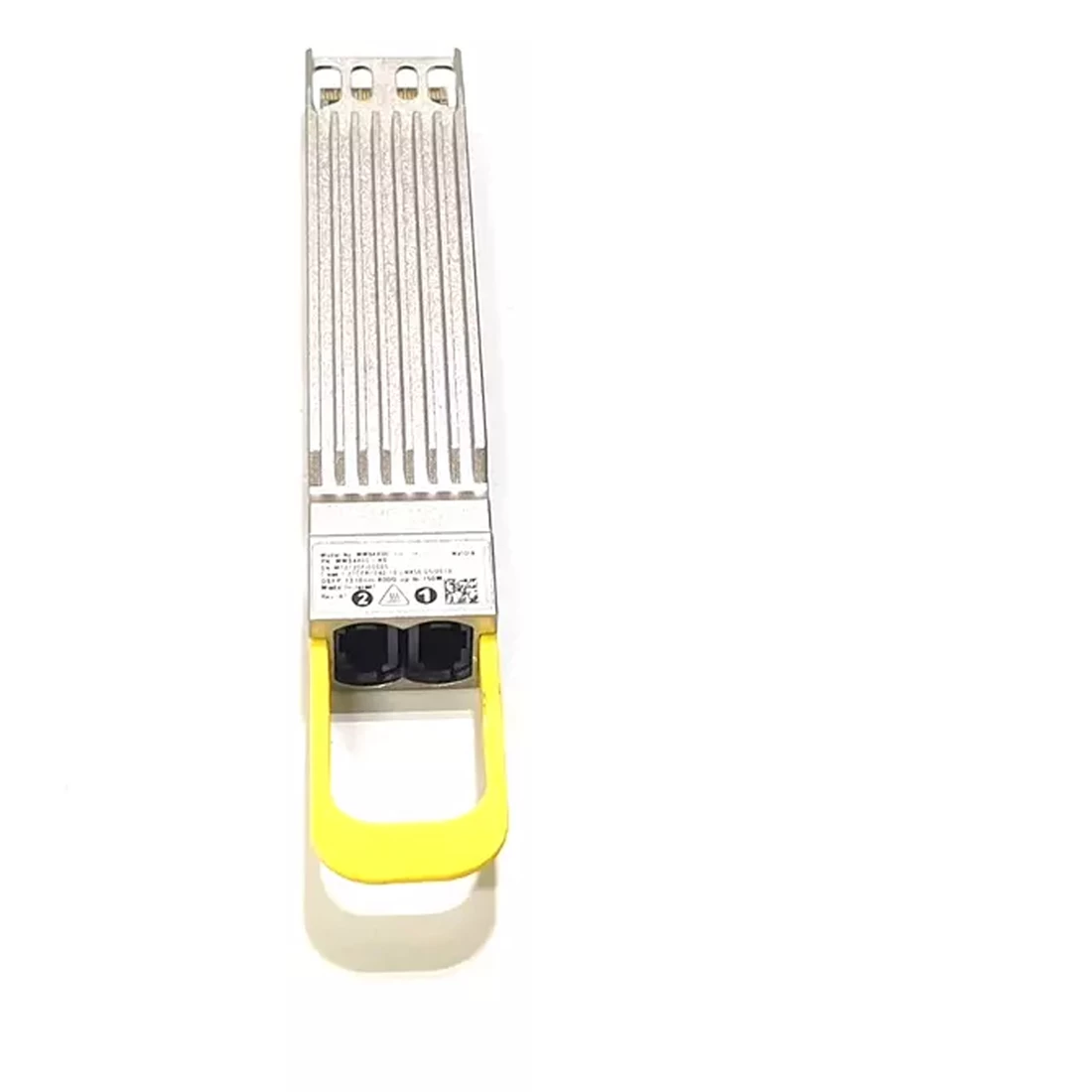

NVIDIA MMS4X00-NS Twin Tort Transceiver, 800gbps,2x400g, Osfp, 2xmpo/apc, 1310nm Smf, Up To 100m, Finned Top
The NVIDIA MMS4X00-NS Is An Infiniband And Ethernet 800gb/s 2x400gb/s Twin-port Osfp, Dr8 Single Mode, Parallel, 8-channel Transceiver Using Two, 4-channel Mpo-12/apc Optical Connectors At 400gb/s Each. The Parallel Single Mode, Datacenter Reach 8-channel (dr8) Design Uses 100g-pam4 Modulation And Has A Maximum Fiber Reach Of 100-meters Using 8 Single Mode Fibers. The 100-meter Length Assumes Two Optical Patch Panels In The Link The Twin-port Dr8 Transceiver Is A Key NVIDIA Innovation With Two Internal Transceiver Engines Enabling 64-ports Of 400gb/s In A 32-osfp Cage Quantum-2 Switch. Spectrum-4 Switches Have 32 Or 64 Cages And Enable 64-128 400g Ports The Quantum-2 And Spectrum-4 Switches Require Finned-top Osfp Shells For Extra Transceiver Cooling. The Main Application For MMS4X00-NS Is Linking Two Switches Together With Up To 100/500-meters. 100-meter Transceivers Have A White Stripe, And The 500-meter Transceivers Have Purple Stripe. A Flat-top Version Offered For Liquid-cooled And Dgx H100 Cedar7 Systems Links. The Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Infiniband Systems And A Rigorous Production Tested To Ensure The Best Out-of-the-box Installation Experience, Performance, And Durability.
Key Features
800g Dr8 Single Mode Transceiver
8-channels Of 100g-pam4 Electrical Modulation
Two Mpo-12/apc Optical Connectors
Two Ports Of 4-channel 100g-pam4 Optical Modulation
Supports Two Straight 400gb/s Or Two 1:2 Splitter Fiber Cables For 200gb/s
Finned-top Osfp For Air-cooled Switches
Flat-top Osfp For Dgx H100 Or Liquid-cooled
1310nm Eml Laser
Maximum Reach: 100m
17-watts Max Power
1.5 Watt Low-power Sleep Mode
Single 3.3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Compliant
Osfpmsa.org Compliant
Cmis 4.0 Compliant
Case Temperature Range Of 0°c To +70°c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
