Detail overview

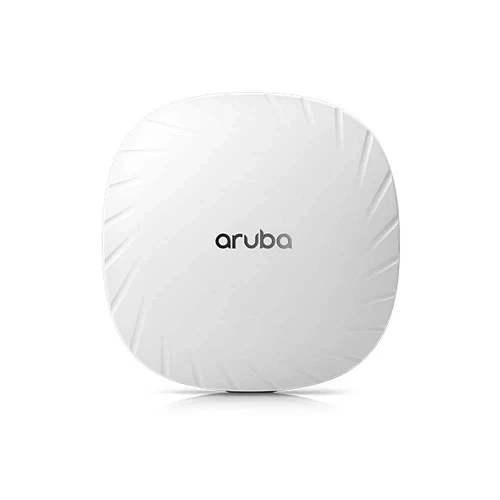

HPE Q9H63A Aruba Ap-515 (us) Campus Wireless Access Point.

Key Features :

  • Device Type : Wireless Access Point

    Networking
  • Form Factor : In-ceiling
  • Connectivity Technology : Wireless
  • Line Coding Format : Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam, Ofdm, 1024 Qam
  • Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac
  • Spread Spectrum Method : Ofdm, Dsss
  • Frequency Band : 2.4 Ghz, 5 Ghz
  • Performance : Maximum Data Rate (2.4 Ghz): 575 Mbps Maximum Data Rate (5 Ghz): 4.8 Gbps Peak Data Rate: 5.4 Gbps
  • Capacity : Wireless Clients Per Wi-fi Radio: 256 Bssids Per Radio: 16
  • Status Indicators : System, Status
  • Features : Mdi/mdi-x Switch, Auto-uplink (auto Mdi/mdi-x), Dfs Support, Quality Of Service (qos), Trusted Platform Module (tpm), Reset Button, Link Aggregation Control Protocol (lacp), Adaptive Radio Management (arm), Maximum Ratio Combining (mrc), Low Density Parity Check (ldpc), Transmit Beam-forming (txbf) Ready, Cyclic Delay Diversity (cdd), Space Time Blocking Code (stbc), Security Lock Slot (cable Lock Sold Separately), Advanced Cellular Coexistence (acc), Clientmatch, Cyclic Shift Diversity (csd), Apprf Technology, Mu-mimo Technology, Enhanced Clientmatch, Packet Aggregation A-mpdu, Packet Aggregation A-msdu, Wireless Intrusion Protection, Air Monitor (am), Space-time Block Code, Intelligent Power Monitoring (ipm), Securejack, Secure Core Technology (sct), 4x4 Mu-mimo Technology, Aruba Airmatch, Spectrum Analyzer, Target Wait Time (twt)

    Expansion / Connectivity
    Interfaces :
  • 1 X HPE Smart Rate - Rj-45
  • 1 X 1000base-t (poe+) - Rj-45
  • 1 X Usb 2.0 - Type A
  • 1 X Serial / Console - Micro-usb

    Power
  • Power Over Ethernet (poe) Supported : Poe
  • Power Consumption Operational : 20.8 Watt

    Condition : New Factory Sealed.
    Availability : In Stock.
    Our Warranty : 30 Days.
