| Product Overview

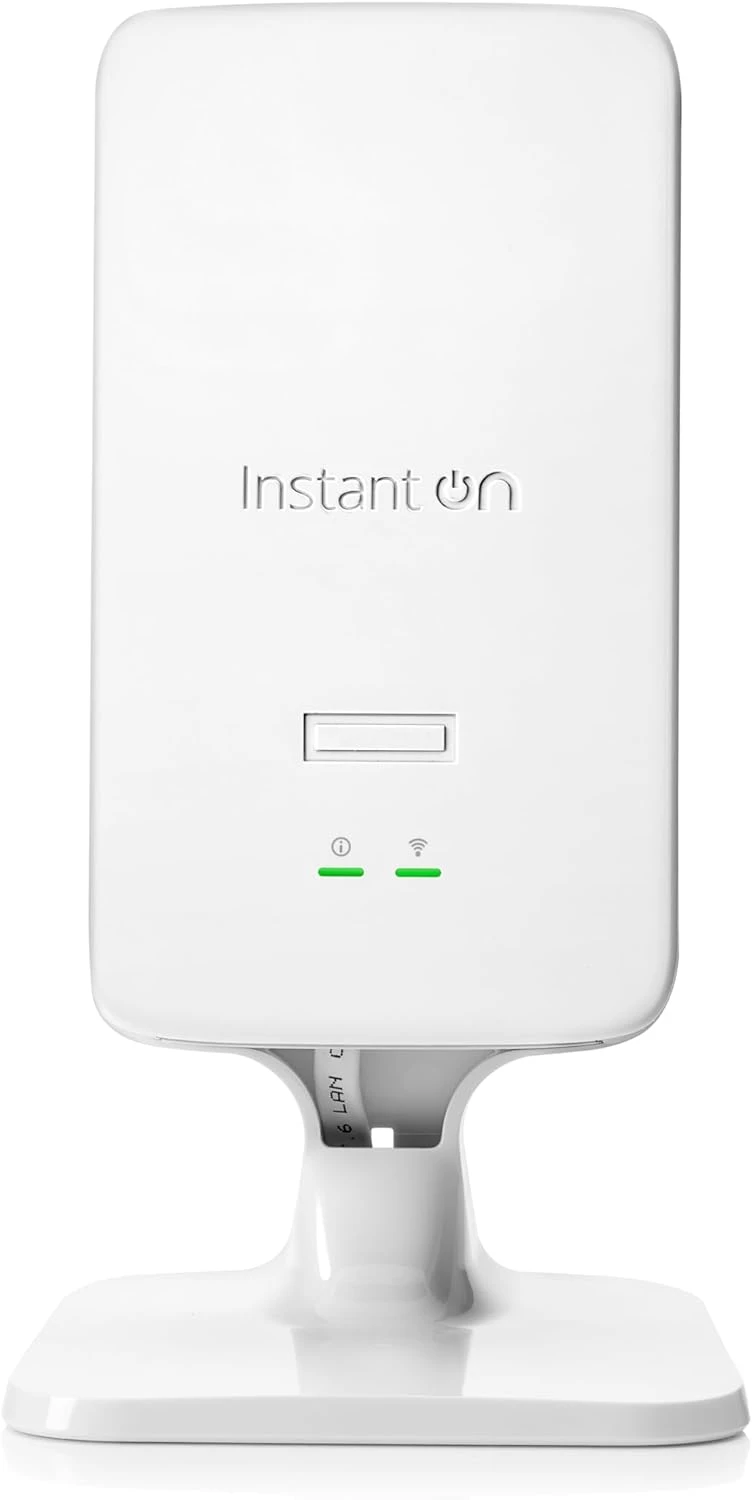

The HPE Networking Instant On Access Points Ap22d Is The More Versatile Version Of The Ap22. It Has The Same Antenna Array And
Spatial Streams (2x2:2) But Has A 2.5 Gbe Uplink Port And Four 1 Gbe Downlink Ports For Hardwired Devices. The Ap22d Is Great For Ip
Phones Or Receipt Printers In Areas That Need More Ethernet Ports And Only One In-room Ethernet Port Is Available.
Key Features : Certifications
Wi-fi Alliance Certified (wfa) 802.11ax With (wi-fi 6), Wpa2, Wpa3
input Voltagepoe:
802.3bt (class 6) Full Functionality Or 802.3at (class 4) Limited Functionality Dc Power (48v)
poe In: 802.3at/802.3bt
poe Out: 2x 15w Poe (802.3af)
wi-fi Antennaantennas:
dual Semi-directional 2x2 Mimo
antenna Gain: 5.2 Dbi In 2.4ghz And 5.4 Dbi In 5 Ghz
maximum Transmit Power:
5 Ghz Band: +21 Dbm (+18 Dbm Per Chain, 3 Db Mimo Gain)
2.4 Ghz Band: +20 Dbm (+17 Dbm Per Chain, 3 Db Mimo Gain)
connectivity, Standard
ultra-fast 802.11ax
ports
1x 2.5 Gbe Base-t Poe Class 4/6 Uplink
2x 1 Gbe Base-t Poe Class 3 Downlink
2x 1 Gbe Base-t Downlink
Dc Power Connector
Led Status Indicators
Reset/led Control Button
Kensington Security Slot
mounting
gang Wall Box-mount Kit Or Desk-mount Kit
power Consumption
51w (poe) Or 50w (dc)
radio Coverage
dual-radio 802.11ax
2x2 5 Ghz/2.4 Ghz Mimo
Condition : New
Availability : In Stock.
Our Warranty : 90 Days.
