Detail overview

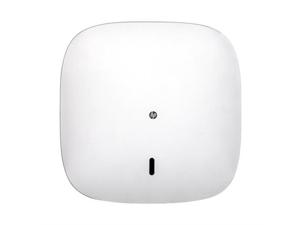

HPE JW807-61001 Aruba Instant Iap-314 (us) 802.11n/ac Dual 2x2:2/4x4:4 Mu-mimo Radio Antenna Connectors Ap :

Networking :

Form Factor : In-ceiling

Connectivity Technology : Wireless

Data Transfer Rate : 1733 Mbps

Line Coding Format : Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam

Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac

Spread Spectrum Method : Ofdm, Dsss

Frequency Band : 2.4 Ghz, 5 Ghz

Performance : Concurrent Data Rate (5 Ghz): 1733 Mbps Concurrent Data Rate (2.4 Ghz): 400 Mbps Peak Data Rate: 2.1 Gbps

Capacity : Wireless Clients Per Wi-fi Radio: 255 Bssids Per Radio: 16

Status Indicators : System, Status

Features : Auto-sensing Per Device, Auto-uplink (auto Mdi/mdi-x), Dfs Support, Quality Of Service (qos), Reset Button, Adaptive Radio Management (arm), Maximum Ratio Combining (mrc), Low Density Parity Check (ldpc), Transmit Beam-forming (txbf) Ready, Energy Efficient Ethernet, Cyclic Delay Diversity (cdd), Space Time Blocking Code (stbc), 4t4r Mimo Technology, Security Lock Slot (cable Lock Sold Separately), Advanced Cellular Coexistence (acc), Cyclic Shift Diversity (csd), Mu-mimo Technology, Aruba Beacons Bluetooth Low-energy (ble) Technology

Compliant Standards : Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Wi-fi Certified, Ieee 802.11n, Ieee 802.3at, Ieee 802.3az, Ieee 802.11ac

Antenna :

Antenna : External Detachable

Antenna Qty : 4

Expansion / Connectivity :
Interfaces :

1 X 1000base-t - Rj-45

1 X Usb 2.0 - Type A

4 X Antenna - Rp-sma

Miscellaneous :
Included Accessories :

2 Mounting Clips

Mtbf : 916,373 Hours

Compliant Standards : En 60950, Iec 60950, Ul 60950, Cb, Ul 2043, Fcc, En 60601-1-2, Ctuvus, En 300 328, En 301 489, En 60601-1-1, Lvd 72/23/eec, R&tte Directive 1999/5/ec, En 301 893

Power :

Power Over Ethernet (poe) Supported : Poe

Power Consumption Operational : 14.4 Watt

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
