Detail overview

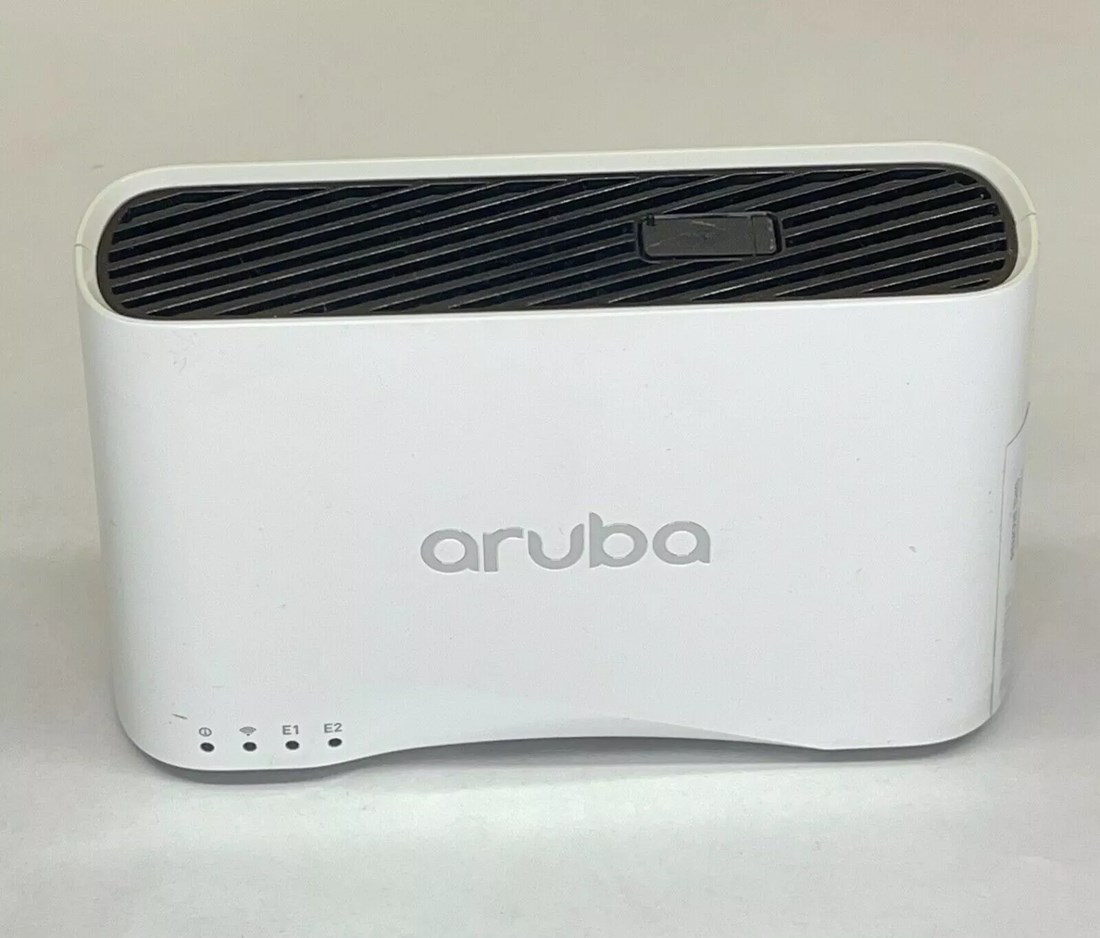

HPE JY714A Aruba Ap-203r (us) - Wireless Access Point :.

Key Features :

Form Factor : External

Connectivity Technology : Wireless

Data Transfer Rate : 867 Mbps

Line Coding Format : Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam

Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac

Spread Spectrum Method : Ofdm, Dsss

Frequency Band : 2.4 Ghz, 5 Ghz

Performance : Maximum Data Rate (2.4 Ghz): 400 Mbps ¦ Maximum Data Rate (5 Ghz): 867 Mbps

Capacity : Wireless Clients Per Wi-fi Radio: 255 ¦ Bssids Per Radio: 16

Status Indicators : Port Status, Power, System, Status

Features : Auto-uplink (auto Mdi/mdi-x), Dfs Support, Quality Of Service (qos), Trusted Platform Module (tpm), 2t2r Mimo Technology, Maximum Ratio Combining (mrc), Low Density Parity Check (ldpc), Transmit Beam-forming (txbf) Ready, Energy Efficient Ethernet, Cyclic Delay Diversity (cdd), Space Time Blocking Code (stbc), Advanced Cellular Coexistence (acc), Cyclic Shift Diversity (csd), Aruba Beacons Bluetooth Low-energy (ble) Technology, Packet Aggregation A-mpdu, Packet Aggregation A-msdu, Wireless Intrusion Protection, Air Monitor (am)

Compliant Standards : Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Wi-fi Certified, Ieee 802.11n, Ieee 802.3az, Ieee 802.11ac

Antenna :

Antenna : Internal

Antenna Qty : 2

Directivity : Omni-directional

Gain Level : 2.9 Dbi

Expansion / Connectivity :
Interfaces :

1 X 1000base-t (uplink) - Rj-45

1 X 1000base-t (poe) - Rj-45

1 X 1000base-t - Rj-45

1 X Usb 2.0 - Type A

1 X Console

Condition : New Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Limited Life Time.
Our Warranty : 30 Days
