Detail overview

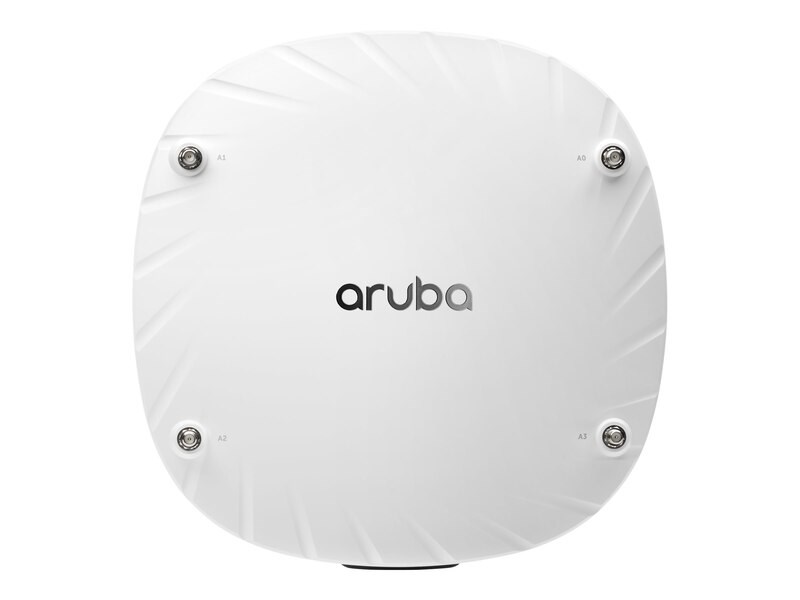

HPE JZ332A Aruba Ap-534 (us) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus Access Point :

Networking :

Form Factor : In-ceiling

Connectivity Technology : Wireless

Data Transfer Rate : 2.4 Gbps

Line Coding Format : Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam, Ofdm, 1024 Qam, Ofdma

Data Link Protocol : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac, Bluetooth 5.0, Ieee 802.11ax

Spread Spectrum Method : Ofdm, Dsss, Ofdma

Frequency Band : 2.4 Ghz, 5 Ghz

Performance : Maximum Data Rate (2.4 Ghz): 1150 Mbps ¦ Maximum Data Rate (5 Ghz): 2.4 Gbps ¦ Aggregate Bandwidth: 3.55 Gbps

Capacity : Wireless Clients Per Wi-fi Radio: 1024 ¦ Ofdma Units: 37 ¦ Bssids Per Radio: 16

Status Indicators : System, Status

Features : Trusted Platform Module (tpm), Lacp Support, Adaptive Radio Management (arm), Maximum Ratio Combining (mrc), Low Density Parity Check (ldpc), Transmit Beam-forming (txbf) Ready, Direct Sequence Spread Spectrum (dsss), Cyclic Delay Diversity (cdd), Space Time Blocking Code (stbc), Advanced Cellular Coexistence (acc), Clientmatch, Cyclic Shift Diversity (csd), Apprf Technology, Mu-mimo Technology, Packet Aggregation A-mpdu, Packet Aggregation A-msdu, Air Monitor (am), Intelligent Power Monitoring (ipm), Dynamic Frequency Selection (dfs), High-throughput (ht) Support, 4x4 Mu-mimo Technology, Orthogonal Frequency Division Multiplexing (ofdm), Aruba Airmatch, Spectrum Analyzer, Very High Throughput (vht) Support, Orthogonal Frequency Division Multiple Access (ofdma), Unified Ap Support, Custom Deep-sleep Mode, High Efficiency (he) Support, Target Wait Time (twt)

Encryption Algorithm : Wpa, Wpa2, Wpa3

Compliant Standards : Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Ieee 802.11n, Ieee 802.3at, Ieee 802.11ac, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.11ax

Antenna :

Antenna : External Detachable

Antenna Qty : 4

Expansion / Connectivity :
Interfaces :

1 X HPE Smart Rate - Rj-45

1 X Usb 2.0 - Type A

4 X Antenna - Rp-sma X 4

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
