Detail overview

General Information :
Manufacturer : HPE
Manufacturer Part Number : 813196-B21
Manufacturer Website Address : WWW.HPE.COM

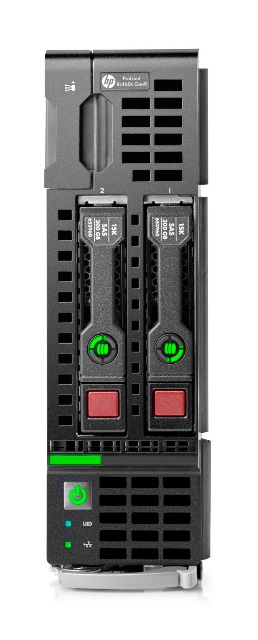

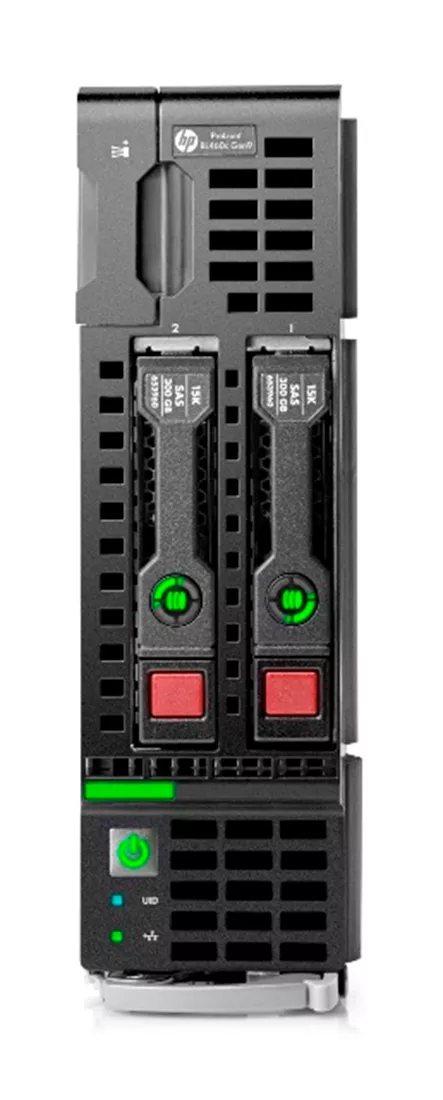

Product Name : Proliant Bl460c Gen9 2-way Blade Server

Processor & Chipset :
Processor Type : Intel Xeon E5-2660v4/2.0ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 14-core
64-bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 70 Mb
Cache Per Processor : 35 Mb

Memory :
Installed Size : 128 Gb
Maximum Size : 512 Gb
Technology : Ddr4 Sdram
Memory Speed : 2400 Mhz
Memory Specification Compliance : Pc4-19200
Form Factor : Dimm 288-pin
Features :

Online Spare Memory

Load-reduced Dimm (lrdimm)

Hp Smartmemory
Configuration Features : 4 X 32 Gb
Ram Supported :

Pc4-19200 - 256 Gb - Registered - Ecc

Pc4-19200 - 512 Gb - Load-reduced - Ecc

Storage & Storage Controller :
Hard Drive : None
Storage Controller Type : 1 X Sas-3 - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Type : Hp H244br Smart Host Bus Adapter
Raid Level : Raid 0, Raid 1

Display & Graphics Controllers :
Graphics Processor : Matrox G200eh

Network & Communication :
Interface (bus) Type : Flexiblelom
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller(s) : Hp Flexfabric 536flb
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel Over Ethernet (fcoe)
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol)
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.1qau

Expansions & Connectivity :
Expansion Bays Total (free) :

2 (total) / 2 (free) X Hot-swap - 2.5in Sff

Expansion Slots Total (free) :

2 (total) / 0 (free) X Processor

16 (total) / 12 (free) X Memory - Dimm 240-pin

2 Expansion Slot (x16 Mode)

1 (total) / 1 (free) X Microsdhc Card (internal)

1 (total) / 0 (free) X Flexiblelom

Interfaces & Ports :

1 X Hp Ilo

1 X Usb 3.0

2 X Lan (10gigabit Ethernet)

Dimensions & Weight :
Width : 2.2 In
Depth : 20.4 In
Height : 7.1 In
Weight : 10.47 Lbs

Availability : In Stock.
Condition : Refurbished.
Our Warranty : 30 Days.
