Detail overview

General Information :
Manufacturer : Hpe
Manufacturer Part Number : 813197-b21
Manufacturer Website Address : Www.hpe.com

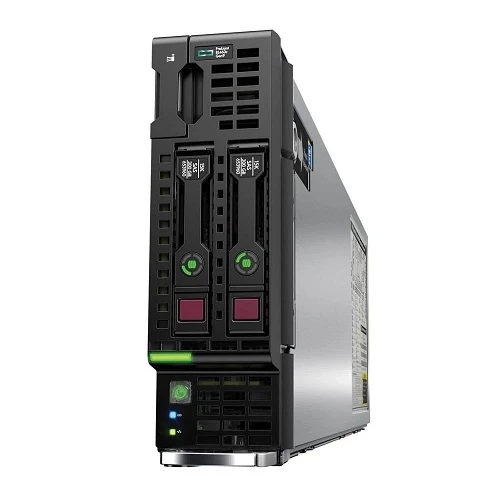

Product Name : Proliant Bl460c Gen9 2-way Blade Server

Processor & Chipset :
Processor Type : Intel Xeon E5-2680v4 / 2.4 Ghz
Max Turbo Speed : 3.3 Ghz
Number Of Cores : 14-core
64-bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 70 Mb
Cache Per Processor : 35 Mb

Memory :
Installed Size : 256 Gb
Maximum Size : 512 Gb
Technology : Ddr4 Sdram
Memory Speed : 2400 Mhz
Memory Specification Compliance : Pc4-19200
Form Factor : Dimm 288-pin
Features :

  • Online Spare Memory
  • Load-reduced Dimm (lrdimm)
  • Hp Smartmemory
    Configuration Features : 8 X 32 Gb
    Ram Supported :
  • Pc4-19200 - 256 Gb - Registered - Ecc
  • Pc4-19200 - 512 Gb - Load-reduced - Ecc

    Storage & Storage Controller :
    Hard Drive : None
    Storage Controller Type : 1 X Sas-3 - Pcie 3.0 X8
    Controller Interface Type : Sata 6gb/s / Sas 12gb/s
    Storage Controller Type : Hp H244br Smart Host Bus Adapter
    Raid Level : Raid 0, Raid 1

    Display & Graphics Controllers :
    Graphics Processor : Matrox G200eh

    Network & Communication :
    Interface (bus) Type : Flexiblelom
    Ethernet Ports : 2 X 20 Gigabit Ethernet
    Ethernet Controller(s) : Hp Flexfabric 650flb
    Data Link Protocol :fibre Channel Over Ethernet (fcoe), 20 Gigabit Ethernet, Rdma Over Converged Ethernet (roce)
    Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
    Remote Management Controller : Integrated Lights-out 4
    Features : Wake On Lan (wol)
    Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1ab (lldp), Ieee 802.3ap, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qbg

    Expansions & Connectivity :
    Expansion Bays Total (free) :
  • 2 (total) / 2 (free) X Hot-swap - 2.5in Sff

    Expansion Slots Total (free) :
  • 2 (total) / 0 (free) X Processor
  • 16 (total) / 8 (free) X Memory - Dimm 240-pin
  • 2 Expansion Slot (x16 Mode)
  • 1 (total) / 1 (free) X Microsdhc Card (internal)
  • 1 (total) / 0 (free) X Flexiblelom

    Interfaces & Ports :
  • 1 X Hp Ilo
  • 1 X Usb 3.0
  • 2 X Lan (20gigabit Ethernet)

    Dimensions & Weight :
    Width : 2.2 In
    Depth : 20.4 In
    Height : 7.1 In
    Weight : 10.47 Lbs

    Availability : In Stock.
    Condition : Refurbished.
    Our Warranty : 30 Days.
