Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P19561-b21
Manufacturer Website Address : Www.hpe.com

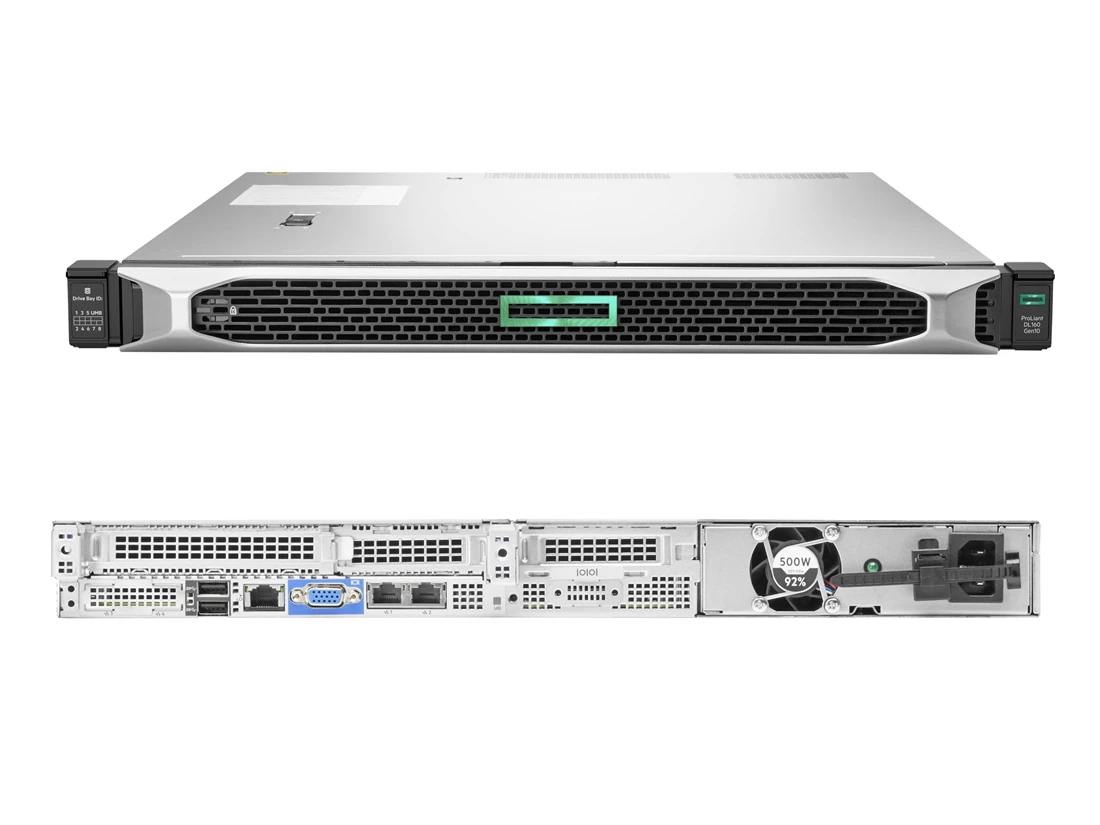

Product Name : Proliant Dl160 Gen10 - 1u Rack Mountable Server ( Pre-configured Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Silver 4208 / 2.1 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Nstalled Size : L3 Cache - 11 Mb
Cache Per Processor : 11 Mb

Memory :
Installed Size : 16 Gb / 1 Tb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 16 (total) / 15 (empty)
Features : Registered, Online Spare Memory, Hpe Smartmemory, 6-channel Memory Architecture
Configuration Features : 1 X 16 Gb

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Sata - Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : Hpe Smart Array S100i
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10

Display & Graphics Controllers :
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 2 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Expansion Bays Total (free) :
4 (total) / 4 (free) X Hot-swap 3.5 Lff

Expansion Slots Total (free) :
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height

Interfaces & Ports :
1 X Vga 2 X Lan (gigabit Ethernet)
1 X Hpe Ilo
1 X Hpe Ilo - Rj-45
4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)

Miscellaneous :
Included Accessories :
Cpu Standard Heatsink
Hp Easy Install Rail Kit
3 X System Fans

Compliant Standards :
Weee, Ashrae Class A4, Ashrae Class A3, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 24.2 In
Height : 1.7 In
Weight : 24.18 Lbs

Availability : In Stock
Condition : Brand New
Manufacturer Warranty : Full
Our Warranty : 30 Days
