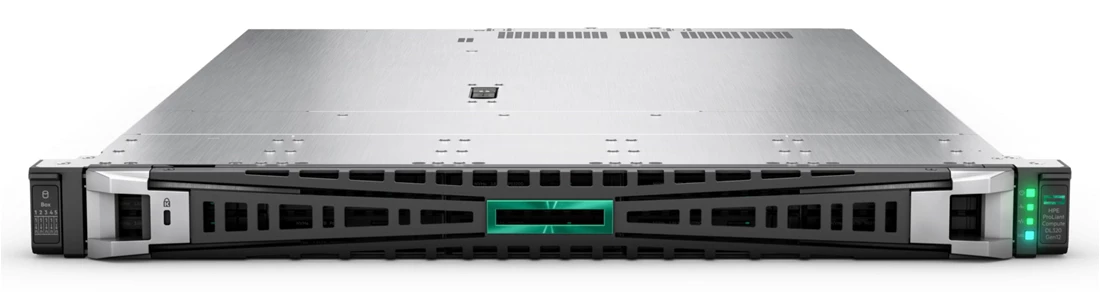

HPE P87790-005 DL320 Gen12 6505P 1x64GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS NA Server
P87790-005
P87790-005
P87790-005
P87790-005
P87790-005

HPE P87790-005 DL320 Gen12 6505P 1x64GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS NA Server

Part Number: P87790-005
BRAND: HPE | More SERVERS from HPE
$13,695.00
Capacity: 12-CORE XEON 2.2GHz

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE P87790-005 Proliant Compute Dl320 Gen12 Smart Choice Model (8sff) - 1x Intel Xeon-6 12-core 6505p / 2.2 Ghz, 64(1x64)gb Ddr5 Rdimm, Broadcom Bcm5719 Eth 1gb 4-port Base-t Ocp3 Adapter, HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller, 2x HPE 480gb Sata 6g Read Intensive Sff Bc Multi Vendor Ssd, 2x HPE 1000w M-crps Titanium Hot Plug Power Supply Kit, 1-way 1u Rack Server.

General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P87790-005
Product Form Factor : Rack-mountable - 1u
Height ( Rack Units) : 1u
Server Scalability : 1-way
Hot-swap Bays Qty : 8
Model Name : HPE Proliant Compute Dl320 Gen12 6505p 12c 1x64gb-r 8sff Mr408i-o 2x480gb Ssd 2x1000w Ps Na Server ( Smart Choice Model)

Processor / Chipset :
Cpu : Intel Xeon-6 6505p
Processor Base Frequency : 2.2 Ghz
Max Turbo Speed : 4.1 Ghz
All Core Turbo Frequency : 3.9 Ghz
Number Of Cores : 12-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Intel Upi Speed : 24 Gt/s
Tdp : 150 W
Memory Types : Ddr5(6400mt/s)
Max Memory Size (dependent On Memory Type) : 4 Tb
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Cpu Socket : Fclga4710

Cache Memory :
Installed Size : L3 Cache - 48 Mb
Cache Per Processor : 48 Mb

Ram :
Installed Size : 64 Gb / 4tb
Technology : Ddr5 Rdimm
Effective Memory Speed : 6400 Mt/s
Rated Memory Speed : 6400 Mt/s
Form Factor : Dimm 288-pin
Slots : 16 (total) / 15 (empty)
Features : Registered, HPE Ddr5 Smart Memory
Configuration Features : 1 X 64 Gb

Accelerators :
Accelerators : None

Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support

Storage Controller :
Type : 1 X Raid - Ocp
Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)
Storage Controller Name : HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb

Internal Storage Devices :
Hdd / Ssd :
Hard Drive / Type : Ssd-bc
Hard Drive / Size : 2.5
Hard Drive / Interface Type : Sata 6 Gb/s
Hard Drive / Bays Qty : 8
Ssd Capacity : 480 Gb
Ssd / Installed Qty : 2
Total Installed : 960 Gb
Max Storage Capacity : 38.4 Tb (10x3.84 Tb)

Optical Drive : No Optical Drive

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Video Modes Up To 1920 X 1200 - 60 Hz (32 Bpp)

Power :
Device Type : Power Supply - Hot-plug - M-crps
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Titanium
Efficiency : 96%

Expansion / Connectivity :
Bays :

  • 8 (total) / 6 (free) X Hot-swap 2.5 Sff

    Slots :
  • 3 (total) / 3 (free) X Pcie 5.0 X16 - Half-length, Full-height (x16 Mode)
  • 2 (total) / 2 (free) X Pcie 5.0 X16 / Open Compute Project Mezzanine (ocp) 3.0 (x16 Mode)

    Interfaces :
  • 1 X Vga (optional - Rear)
  • 1 X Serial (optional - Rear)
  • 2 X Lan (gigabit Ethernet)
  • 4 X Usb 3.2 Gen 1 (1 Front, 2 Rear, 1 Internal)
  • 1 X HPE Ilo (1 In Front) (service Port)

    Security Hardware :
    Tpm (trusted Platform Module)
    1x HPE Bezel Lock Kit
    1x HPE Proliant Gen11 1u Common Bezel Kit
    1x HPE Proliant Dl320 Gen11 Intrusion Detection Cable Kit

    Miscellaneous :
    Included Accessories : 7x High Performance Fans, HPE Easy Install Rail 1 Kit
    Compliant Standards : Acpi 6.3 Compliant, Advanced Encryption Standard (aes), Active Directory V1.0, Ashrae A3/a4, Dmtf Systems Management Architecture For Server Hardware Command Line Protocol (smash Clp), Energy Star, Eu Lot9 Compliant, Ipmi 2.0, Microsoft® Logo Certifications, Pcie 3.0 Compliant, Pcie 4.0 Compliant, Pcie 5.0 Compliant, Pxe Support, Redfish Api, Secure Digital 4.0, Smbios 3.2, Snmp V3, Tls 1.2, Tpm 2.0 Support, Triple Data Encryption Standard (3des), Uefi (unified Extensible Firmware Interface Forum) 2.7, Usb 2.0 Compliant, Usb 3.0 Compliant, Vga Port

    Operating System / Software :
    Os Provided : No Operating System
    Os Certified : Microsoft, Vmware, Red Hat, Suse, Canonical Ubuntu, Oracle Linux, Xenserver, Community Enterprise Linux (centos, Alma Linux, Rocky Linux, Openeuler), Sap Linux, Wind River Linux, Clearos, Oracle Solaris
    Software : HPE Ilo Standard With Intelligent Provisioning, HPE Oneview Standard (free Download)

    Sustainability Information :
    Energy Star Certified : Yes
    Energy Star Version : 4.0

    Environmental Parameters :
    Min Operating Temperature : 50 °f
    Max Operating Temperature : 95 °f
    Humidity Range Operating : 8 - 90% Rh (non-condensing)

    Dimensions & Weight :
    Width : 17.11 In
    Depth : 23.92 In
    Height : 1.69 In
    Weight : 25.35 Lbs

    Condition : New Cto Build
    Availability : In Stock
    Our Warranty : 90 Days
