** Image may not exactly match product **

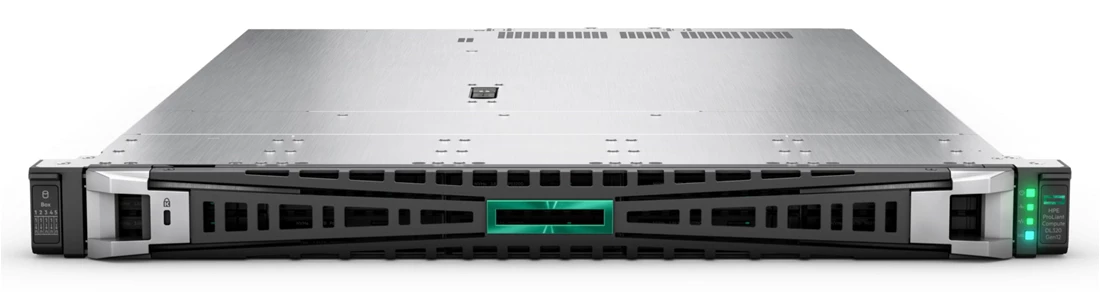

HPE P87776-005 DL320 Gen12 6515P 1P 1x64GB-R 8SFF MR408i-o 2x1000W PS NA Server
BRAND: HPE | More SERVERS from HPE
$13,775.00
Capacity: 16-CORE XEON 2.3GHz
Quantity :
Product Overview
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
3 (total) / 3 (free) X Pcie 5.0 X16 - Half-length, Full-height (x16 Mode)
2 (total) / 2 (free) X Pcie 5.0 X16 / Open Compute Project Mezzanine (ocp) 3.0 (x16 Mode)
Interfaces :
1 X Vga (optional - Rear)
1 X Serial (optional - Rear)
2 X Lan (gigabit Ethernet)
4 X Usb 3.2 Gen 1 (1 Front, 2 Rear, 1 Internal)
1 X HPE Ilo (1 In Front) (service Port)
Security Hardware :
Tpm (trusted Platform Module)
1x HPE Bezel Lock Kit
1x HPE Proliant Gen11 1u Common Bezel Kit
1x HPE Proliant Dl320 Gen11 Intrusion Detection Cable Kit
Miscellaneous :
Included Accessories : 7x High Performance Fans, HPE Easy Install Rail 1 Kit
Compliant Standards : Acpi 6.3 Compliant, Advanced Encryption Standard (aes), Active Directory V1.0, Ashrae A3/a4, Dmtf Systems Management Architecture For Server Hardware Command Line Protocol (smash Clp), Energy Star, Eu Lot9 Compliant, Ipmi 2.0, Microsoft® Logo Certifications, Pcie 3.0 Compliant, Pcie 4.0 Compliant, Pcie 5.0 Compliant, Pxe Support, Redfish Api, Secure Digital 4.0, Smbios 3.2, Snmp V3, Tls 1.2, Tpm 2.0 Support, Triple Data Encryption Standard (3des), Uefi (unified Extensible Firmware Interface Forum) 2.7, Usb 2.0 Compliant, Usb 3.0 Compliant, Vga Port
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft, Vmware, Red Hat, Suse, Canonical Ubuntu, Oracle Linux, Xenserver, Community Enterprise Linux (centos, Alma Linux, Rocky Linux, Openeuler), Sap Linux, Wind River Linux, Clearos, Oracle Solaris
Software : HPE Ilo Standard With Intelligent Provisioning, HPE Oneview Standard (free Download)
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.11 In
Depth : 23.92 In
Height : 1.69 In
Weight : 25.35 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
HPE P87776-005 Proliant Compute Dl320 Gen12 Smart Choice Model (8sff) - 1x Intel Xeon-6 16-core 6515p / 2.4 Ghz, 64(1x64)gb Ddr5 Rdimm, Broadcom Bcm57416 Ethernet 10gb 2-port Base-t Adapter, HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller & HPE Ns204i-u V2 480gb Nvme Hot Plug Boot Optimized Storage Device, 2x HPE 1000w M-crps Titanium Hot Plug Power Supply Kit, 1-way 1u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P87776-005
Product Form Factor : Rack-mountable - 1u
Height ( Rack Units) : 1u
Server Scalability : 1-way
Hot-swap Bays Qty : 8
Model Name : HPE Proliant Compute Dl320 Gen12 6515p 2.3ghz 16c 1p 1x64gb-r 8sff Mr408i-o 2x1000w Ps Na Server ( Smart Choice Model)
Processor / Chipset :
Cpu : Intel Xeon-6 6515p
Processor Base Frequency : 2.3 Ghz
Max Turbo Speed : 3.8 Ghz
All Core Turbo Frequency : 3.8 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Intel Upi Speed : 24 Gt/s
Tdp : 150 W
Memory Types : Ddr5(6400mt/s)
Max Memory Size (dependent On Memory Type) : 4 Tb
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Cpu Socket : Fclga4710
Cache Memory :
Installed Size : L3 Cache - 72 Mb
Cache Per Processor : 72 Mb
Ram :
Installed Size : 64 Gb / 4tb
Technology : Ddr5 Rdimm
Effective Memory Speed : 6400 Mt/s
Rated Memory Speed : 6400 Mt/s
Form Factor : Dimm 288-pin
Slots : 16 (total) / 15 (empty)
Features : Registered, HPE Ddr5 Smart Memory
Configuration Features : 1 X 64 Gb
Accelerators :
Accelerators : None
Network Controller :
Name : Broadcom Bcm57416 Ethernet 10gb 2-port Base-t Adapter
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57416
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Storage Controller :
Type : 1 X Raid - Ocp
Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)
Storage Controller Name : HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
2nd Controller :
Storage Controller Name : HPE Ns204i-u V2 480gb Nvme Hot Plug Boot Optimized Storage Device
Raid Levels : Preconfigured Hardware Raid 1
Form Factor : Dedicated Slot, Internal, Rear Or Front
Ssd : 480 Gb, Read Intensive, Enterprise-class With Power Loss Protection (plp)
Drive Supported : 2280 M.2 Nvme Ssd, Included With Kit
Ssd Form Factor : 22110
Usable Capacity : 480gb
Compliance : Rohs, Lot 9
Pcie Support : Gen3
Internal Storage Devices :
Hdd / Ssd : None
Optical Drive : No Optical Drive
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Video Modes Up To 1920 X 1200 - 60 Hz (32 Bpp)
Power :
Device Type : Power Supply - Hot-plug - M-crps
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Titanium
Efficiency : 96%
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
Security Hardware :
Tpm (trusted Platform Module)
1x HPE Bezel Lock Kit
1x HPE Proliant Gen11 1u Common Bezel Kit
1x HPE Proliant Dl320 Gen11 Intrusion Detection Cable Kit
Miscellaneous :
Included Accessories : 7x High Performance Fans, HPE Easy Install Rail 1 Kit
Compliant Standards : Acpi 6.3 Compliant, Advanced Encryption Standard (aes), Active Directory V1.0, Ashrae A3/a4, Dmtf Systems Management Architecture For Server Hardware Command Line Protocol (smash Clp), Energy Star, Eu Lot9 Compliant, Ipmi 2.0, Microsoft® Logo Certifications, Pcie 3.0 Compliant, Pcie 4.0 Compliant, Pcie 5.0 Compliant, Pxe Support, Redfish Api, Secure Digital 4.0, Smbios 3.2, Snmp V3, Tls 1.2, Tpm 2.0 Support, Triple Data Encryption Standard (3des), Uefi (unified Extensible Firmware Interface Forum) 2.7, Usb 2.0 Compliant, Usb 3.0 Compliant, Vga Port
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft, Vmware, Red Hat, Suse, Canonical Ubuntu, Oracle Linux, Xenserver, Community Enterprise Linux (centos, Alma Linux, Rocky Linux, Openeuler), Sap Linux, Wind River Linux, Clearos, Oracle Solaris
Software : HPE Ilo Standard With Intelligent Provisioning, HPE Oneview Standard (free Download)
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.11 In
Depth : 23.92 In
Height : 1.69 In
Weight : 25.35 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
