Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P27087-B21
Manufacturer Website Address : WWW.HPE.COM

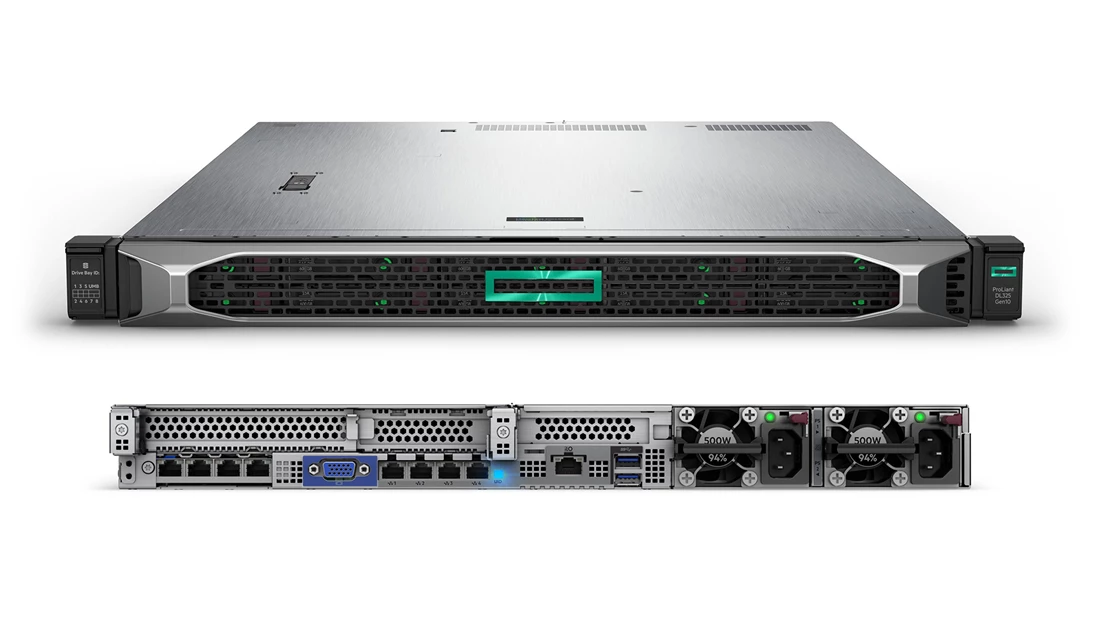

Product Name : Proliant Dl325 Gen10 - 1u Rack Mountable Server ( Smb Model)

Processor & Chipset :
Cpu : Amd Epyc 7282 / 2.8 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Cpu Socket : Socket Sp3

Cache Memory :
Installed Size : L3 Cache - 64 Mb
Cache Per Processor : 64 Mb

Memory :
Installed Size : 16 Gb / 1 Tb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Slots : 16 (total)
Features : Registered, HPE Smartmemory
Ram Supported : Pc4-20800 - 2 Tb Load-reduced Pc4-20800 - 1 Tb Registered

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 366flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
1 X Hp Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Hp Ilo - Rj-45
1 X Vga

Miscellaneous :
Compliant Standards :
Aes, Fips 140-2, Triple Des, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt

Dimensions & Weight :
Width : 17.1 In
Depth : 24.2 In
Height : 1.7 In
Weight : 23.59 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
