Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P38477-b21
Manufacturer Website Address : Www.hpe.com
Server Scalability : 2-way
Height ( Rack Units) : 1u

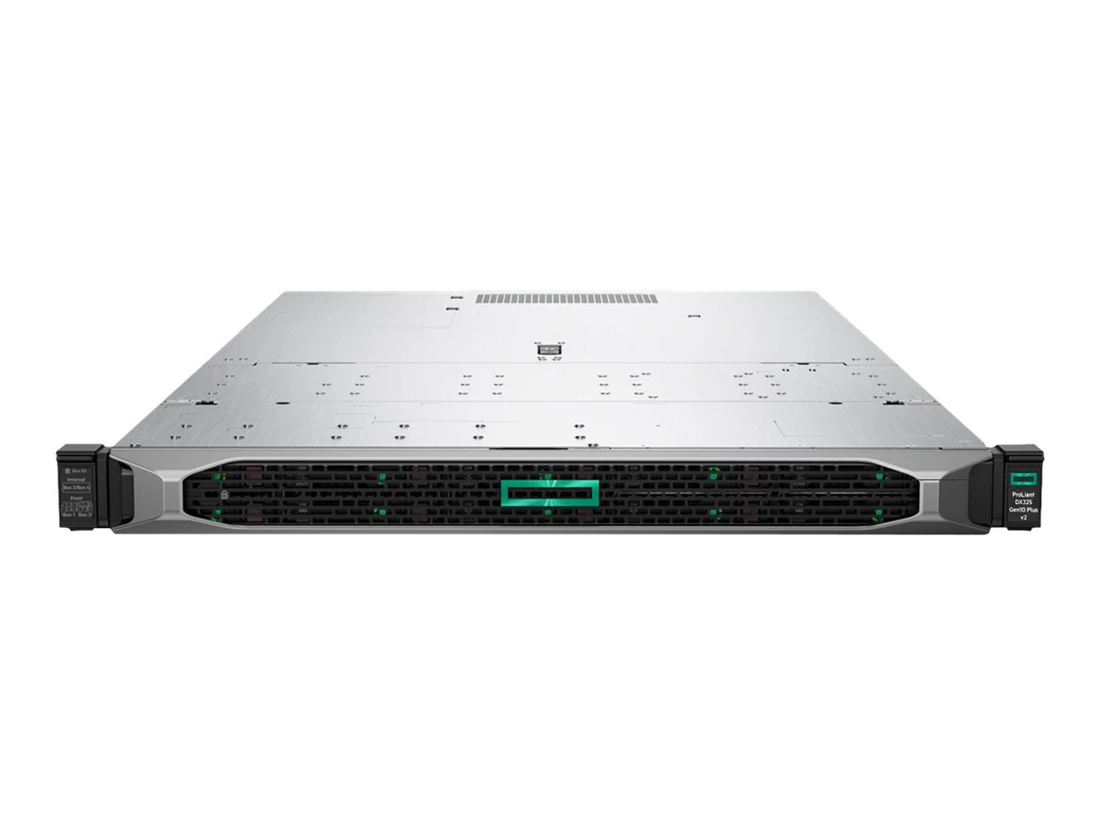

Product Name: Proliant Dl325 Gen10 - 1u Rack Mountable Server ( Base Model)

Processor & Chipset :
Cpu : Amd Epyc 7313p / 3 Ghz
Max Turbo Speed : 3.7 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Cpu Socket : Socket Sp3

Cache Memory :
Installed Size : L3 Cache - 128 Mb
Cache Per Processor : 128 Mb

Memory :
Installed Size : 32 Gb / 1 Tb (max)
Technology : Ddr4 Rdimm
Effective Memory Speed : 3200 Mhz
Rated Memory Speed : 3200 Mhz
Memory Specification Compliance : Pc4-25600
Form Factor : Dimm 288-pin
Slots : 16 (total) / 15 (empty)
Features : Registered, Hpe Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-25600 - 1 Tb Registered ¦ Pc4-25600 - 4 Tb Load-reduced

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hpe Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Smash Clp
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 4.0 X16 - Full-length, Full-height (x16 Mode)
1 (total) / 1 (free) X Pcie 4.0 X16 - Low-profile (x16 Mode)
1 (total) / 0 (free) X Pcie 4.0 X16 / Open Compute Project Mezzanine (ocp) 3.0

Interfaces :
1 X Vga
1 X Hpe Ilo
1 X Hpe Ilo (1 In Front) (service Port)
4 X Usb 3.1 Gen 1 (1 Front, 2 Rear, 1 Internal)
4 X Lan (gigabit Ethernet)

Miscellaneous :
Included Accessories :
8 X Standard Fans
Sff Easy Install Rails

Theft/intrusion Protection :
Chassis Intrusion Sensor

Compliant Standards :
Acpi 6.1, Redfish Api, Uefi, Smbios 3.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt

Dimensions & Weight :
Width : 25.4 In
Depth : 17.1 In
Height : 1.7 In
Weight : 26.87 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
