** Image may not exactly match product **

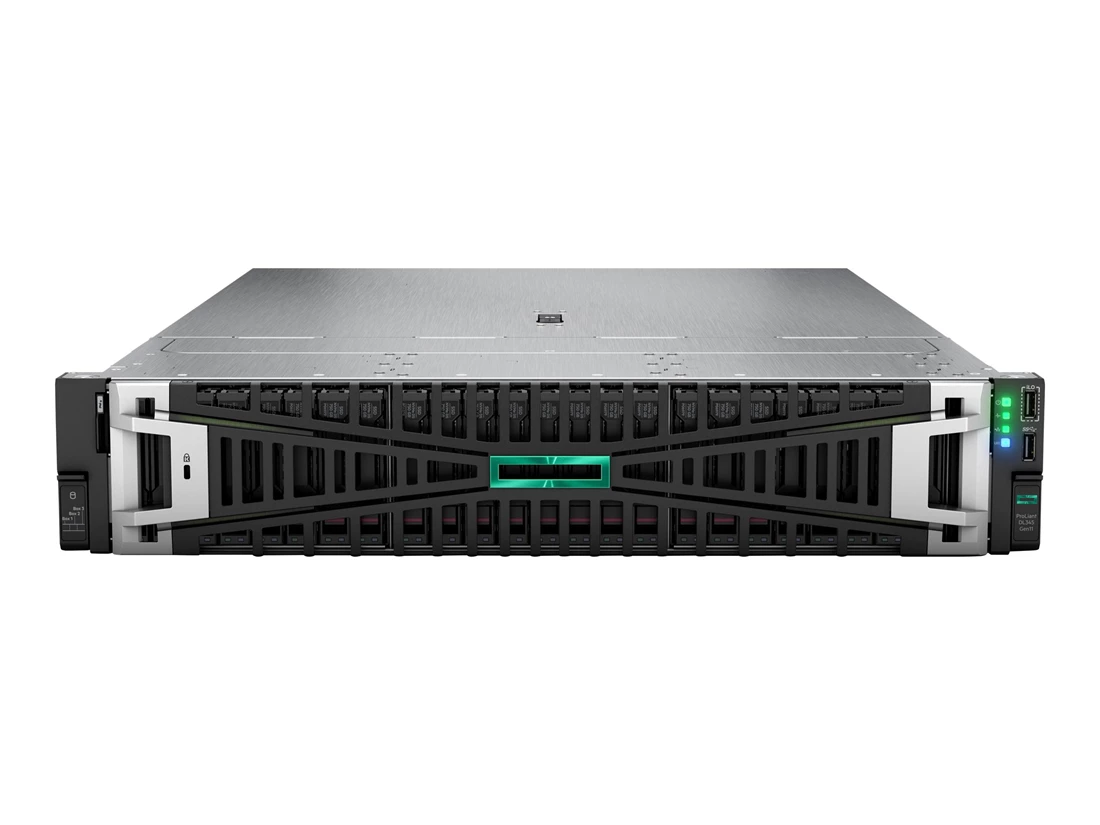

HPE P93186-005 DL345 Gen11 9115 2.6GHz 16c 1P 2x32GB-R 8SFF MR416i-p NC BCM5719 2x800W PS NA Server
P93186-005
P93186-005
P93186-005
P93186-005

HPE P93186-005 DL345 Gen11 9115 2.6GHz 16c 1P 2x32GB-R 8SFF MR416i-p NC BCM5719 2x800W PS NA Server

Part Number: P93186-005
BRAND: HPE | More SERVERS from HPE
$11,900.00
Capacity: 16 CORE AMD EPYC 2.6GHz

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE P93186-005 Proliant Dl345 Gen11 Smart Choice Model (8sff) - 1x 5th Gen Amd Epyc 16-core 9115 / 2.6 Ghz - 64(2x32)gb Ddr5 Sdram, Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter, HPE Mr416i-p Gen11 X16 Lanes 8gb Cache Pci Spdm Plug-in Storage Controller, 2x HPE 800w Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit, 1-way 2u Rack Server.

General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P93186-005
Product Form Factor : Rack-mountable - 2u
Height ( Rack Units) : 2u
Server Scalability : 1-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl345 Gen11 9115 2.6ghz 16c 1p 2x32gb-r 8sff Mr416i-p Nc Bcm5719 2x800w Ps Na Server ( Smart Choice Model)

Processor / Chipset :
Cpu : 5th Gen Amd Epyc 9115
Base Clock Speed : 2.6 Ghz
All Core Boost Speed : 3.3 Ghz
Max Turbo Speed : Up To 4.1 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Cpu Socket : 6096pin Lga Sp5
Chipset Type : No Chipset – System On Chip (soc) Design
Supported Technologies : Amd Infinity Guard , Amd Infinity Architecture
Workload Affinity : Erm|scm|crm Apps , Value Data Mgmt (nr|rdbms) , Vdi , Vm Density

Cache Memory :
Installed Size: L3 Cache - 64 Mb
Cache Per Processor: 64 Mb

Ram :
Installed Size : 64 Gb / 3 Tb (max)
Technology : HPE Ddr5 Smart Memory
Effective Memory Speed : 6400 Mhz
Rated Memory Speed : 6400 Mhz
Form Factor : Dimm 288-pin
Slots : 12 (total) / 10 (empty)
Features : Registered, Online Spare Memory, Dual Rank, HPE Smartmemory
Configuration Features : 2 X 32 Gb

Internal Storage Devices :
Hdd / Ssd : None
Optical Drive : No Optical Drive

Storage Controller :
Type : 1 X Raid
Interface : Sata 6gb/s / Sas 12gb/s / Nvme 16gb/s
Storage Controller Name : HPE Mr416i-p Gen11 X16 Lanes 8gb Cache Pci Spdm Plug-in Storage Controller
Host Bus : 1 X Pcie 4.0 X8
Buffer Size : 8 Gb
Supported Devices : Disk Array (raid)
Channel Qty : 16
Max Storage Devices Qty : 240
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Video Modes Up To 1920 X 1200@60hz (32 Bpp)

Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :

  • 8 (total) / 8 (free) X Hot-swap 2.5 Sff

    Slots :
  • 2 (total) / 2 (free) X Pcie 5.0 X16 - Full-length, Full-height (x16 Mode)

    Interfaces :
  • 1 X HPE Ilo (1 In Front) (service Port)
  • 1 X HPE Ilo - Rj-45
  • 1 X Vga
  • 2 X Lan (1/10 Gigabit Ethernet)
  • 5 X Usb 3.2 Gen 1 (1 Front, 2 Rear, 2 Internal)

    Miscellaneous :
    Included Accessories : 6x Standard Fans
    Rail Kit : HPE Proliant Dl3xx Gen11 Easy Install Rail 2 Kit
    Security Hardware : Tpm (trusted Platform Module), 1x HPE Bezel Lock Kit, 1x HPE Gen11 2u Bezel Kit, 1x HPE Proliant Dl385 Gen11 Intrusion Cable Kit

    Power :
    Device Type : Power Supply - Hot-plug
    Power Redundancy : Optional
    Power Redundancy Scheme : 1+1 (with Optional Power Supply)
    Installed Qty : 2
    Max Supported Qty : 2
    Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
    Power Provided : 800 Watt
    Power Efficiency : 94%

    Dimensions & Weight :
    Width : 17.64 In
    Depth : 25.45 In
    Height : 3.45 In
    Weight : 35.36 Lbs

    Condition : New Cto Build
    Availability : In Stock
    Our Warranty : 90 Days
