Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P06455-b21
Manufacturer Website Address : Www.hpe.com

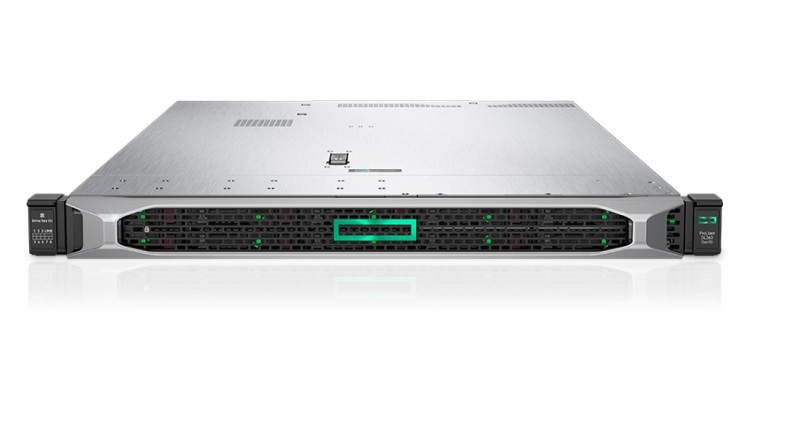

Product Name: Proliant Dl360 Gen10 - 1u Rack Mountable Server ( Embedded Lom Model)

Processor & Chipset :
Cpu : 1st Gen Intel Xeon Gold 6130 / 2.1 Ghz
Max Turbo Speed : 3.7 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Enhanced Intel Speedstep Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 22 Mb
Cache Per Processor : 22 Mb

Memory :
Installed Size : 64 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Slots : 12 (total) / 10 (empty)
Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only
Configuration Features : 2 X 32 Gb
Ram Supported : Pc4-20800 - 3.072 Tb Load-reduced Pc4-20800 - 768 Gb Registered Pc4-20800 - 192 Gb Non-volatile

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hpe Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 0 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 0 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 - Full-height

Interfaces :
1 X Hp Ilo - Type A (1 In Front)
1 X Hp Ilo - Rj-45 (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)

Miscellaneous :
Included Accessories :
Hpe Easy Install Rails
Hpe Standard Heatsink
5 X Standard Hot Plug Fans

Cables Included :
Power Cable

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Manufacturer Selling Program :
Hpe Smart Buy

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Condition : New Cto Build
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
