Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P02722-B21
Manufacturer Website Address : WWW.HPE.COM

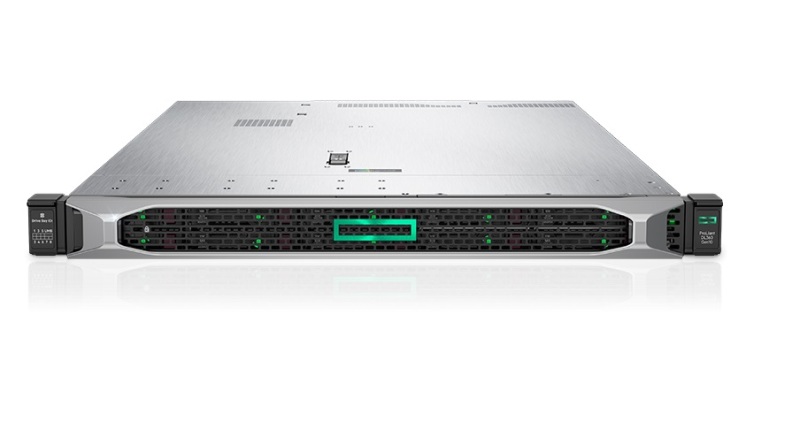

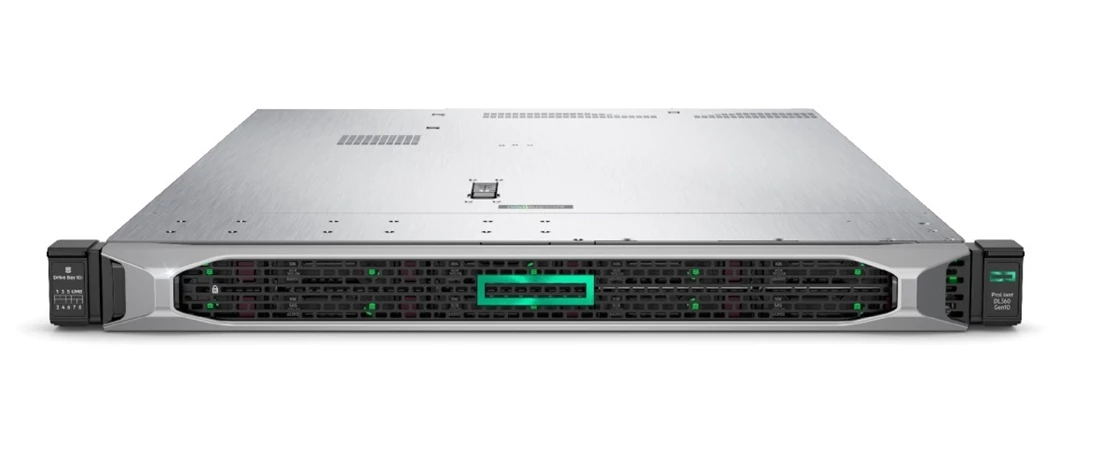

Product Name : Proliant Dl380 Gen10 - 1u Rack Mountable Server ( High Performance Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5220 / 2.2 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 18-core
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 49.5 Mb
Cache Per Processor : 24.75 Mb

Memory :
Installed Size : 64 Gb / 2 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 22 (empty)
Features : Registered, Online Spare Memory, Dual Rank, HPE Smartmemory, 6-channel Memory Architecture
Configuration Features : 2 X 32 Gb
Ram Supported : 2 Tb Registered 6 Tb Load-reduced 192 Gb Non-volatile

Storage Controllers:
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Interface (bus) Type : Flexiblelom
Ethernet Ports : 4 X Gigabit Ethernet, 2 X 25 Gigabit Ethernet
Ethernet Controller : HPE 640flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 0 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 0 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
8 X Sata-600 / Sas 3.0
1 X HPE Ilo - Type A (1 In Front)
1 X HPE Ilo - Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)
2 X Lan (25gigabit Ethernet) (sfp28) (2 Rear)

Miscellaneous :
Included Accessories :
Cpu Standard Heatsink
7 X High Performance Fans
Sff Easy Install Rails

Compliant Standards :
Aes, Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
