** Image may not exactly match product **

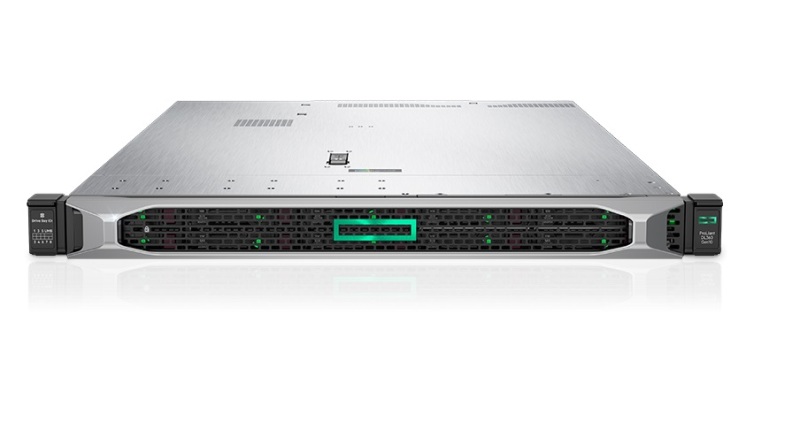

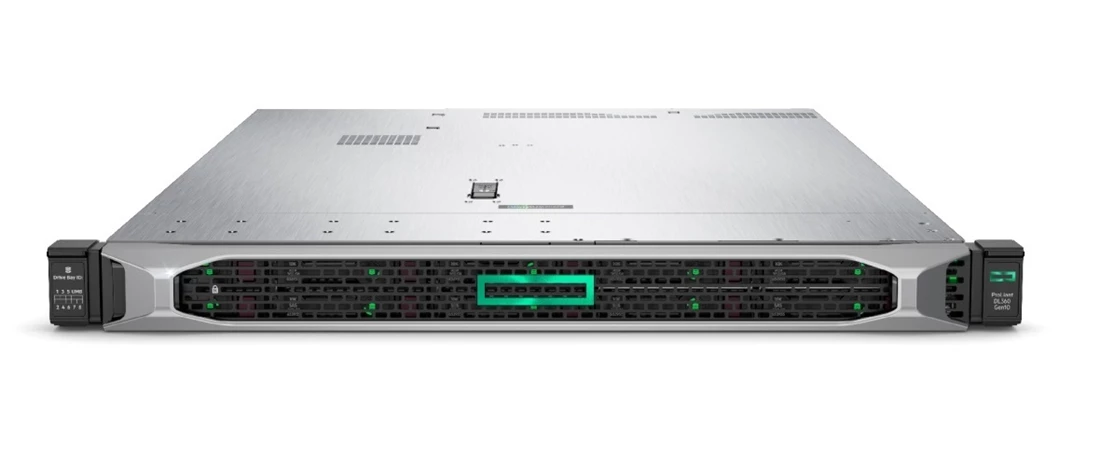

HPE P19177-B21 Dl360 Gen10 5220 1P 32G 8Sff Nc Server
P19177-B21
P19177-B21
P19177-B21
P19177-B21
P19177-B21

HPE P19177-B21 Dl360 Gen10 5220 1P 32G 8Sff Nc Server

Part Number: P19177-B21
BRAND: HPE | More SERVERS from HPE
$3,500.00
Capacity: 18 CORE XEON 2.2GHz

Quantity :
5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P19177-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl360 Gen10 - 1u Rack Mountable Server ( Nc Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5218 / 2.3 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 18-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 24.75 Mb
Cache Per Processor : 24.75 Mb

Memory :
Installed Size : 32 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 12 (total) / 11 (empty)
Features : Registered
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-20800 - 768 Gb Registered Pc4-20800 - 3 Tb Load-reduced Pc4-20800 - 192 Gb Non-volatile

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Interface (bus) Type : Pci Express 2.1 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 366flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.3az

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 - Full-height

Interfaces :
1 X Hp Ilo - Type A (1 In Front)
1 X Hp Ilo - Rj-45
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga
4 X Lan (gigabit Ethernet) - Rj-45

Miscellaneous :
Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Availability : In Stock
Condition : New Cto
Manufacturer Warranty : Full
Our Warranty : 90 Days
