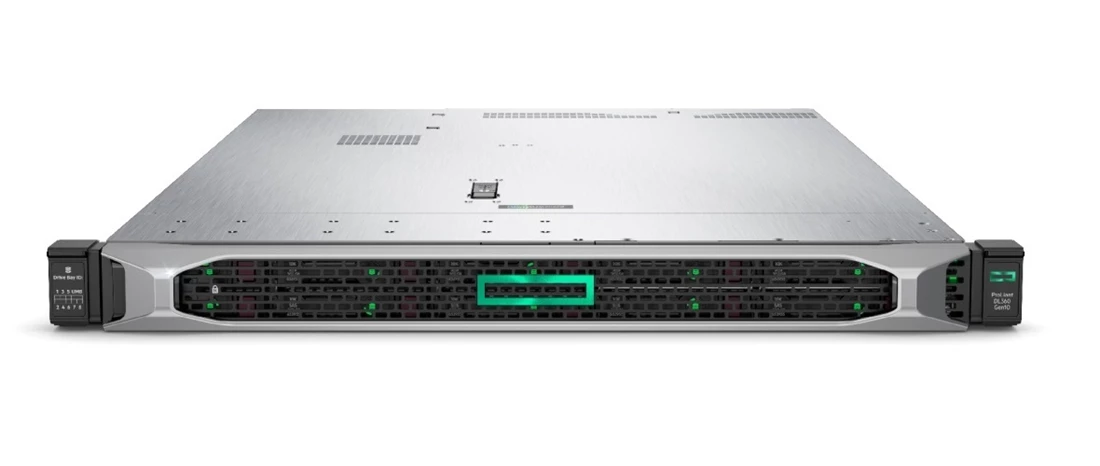

** Image may not exactly match product **

HPE P03634-B21 Dl360 Gen10 6230 1P 32G 8Sff Svr

Part Number: P03634-B21
BRAND: HPE | More SERVERS from HPE
$2,950.00
Capacity: 20-CORE XEON 2.1GHz

Quantity :
| Product Overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P03634-B21
Manufacturer Website Address : WWW.HPE.COM
Product Form Factor : Rack-mountable
Height ( Rack Units) : 1u
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl360 Gen10 6230 2.1ghz 20-core 1p 32gb-r P408i-a 8sff 800w Ps Server ( Pre-configured Model)

Processor & Chipset :
Cpu : Intel Xeon Gold 6230 / 2.1 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 20-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 27.5 Mb
Cache Per Processor : 27.5 Mb

Memory :
Installed Size : 32 Gb / 1 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 12 (total) / 11 (empty)
Features : Registered, Dual Rank, HPE Smartmemory, 6-channel Memory Architecture
Configuration Features : 1 X 32 Gb
Ram Supported : 1 Tb Registered 2 Tb Load-reduced

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
12 (total) / 11 (free) X Dimm 288-pin
2 (total) / 1 (free) X Cpu
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)
1 X Poweredusb 3.0 (1 In Front)
1 X HPE Ilo - Rj-45 (1 Rear)
4 X Usb 3.0 (2 Rear, 2 Internal)
1 X HPE Ilo - Type A (1 In Front)
8 X Sata-600 / Sas 3.0 1 X Vga (1 Rear)

Miscellaneous :

Included Accessories :
HPE Easy Install Rails
Cpu Standard Heatsink
5 X Standard Hot Plug Fans

Cables Included :
Power Cable

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
