Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P24743-B21
Manufacturer Website Address : WWW.HPE.COM

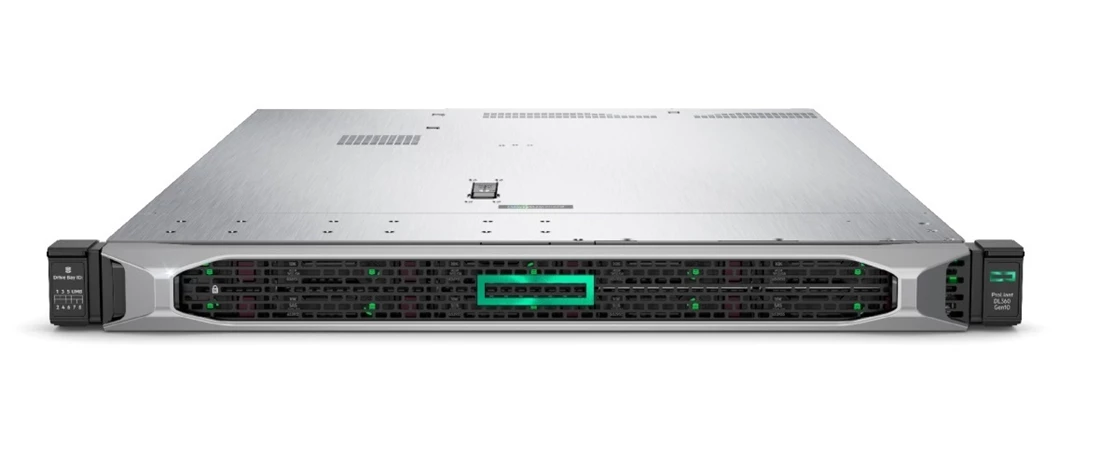

Product Name : Proliant Dl360 Gen10 - 1u Rack Mountable Server ( Nc Model)

Processor & Chipset :
Cpu : Intel Xeon Gold 6248r / 3 Ghz
Max Turbo Speed : 4 Ghz
Number Of Cores : 24-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 35.75 Mb
Cache Per Processor : 35.75 Mb

Memory :
Installed Size : 32 Gb / 1 Tb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Memory Specification Compliance : Pc4-23466
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Online Spare Memory, Mixing Of Different Types Of Memory Modules Is Not Supported, Slots 13 - 24 Are Available In Two-processor Configuration Only, 6-channel Memory Architecture
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-23466 - 3 Tb Load-reduced - Advanced Ecc Pc4-23466 - 1.54 Tb Registered - Advanced Ecc Pc4-21333 - 6 Tb - HPE Persistent Memory Advanced Ecc Pc4-21333 - 192 Gb Non-volatile - Advanced Ecc

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Raid - Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : HPE 562flr-t
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 - Full-height

Interfaces :
1 X HPE Ilo - Type A (1 In Front)
1 X HPE Ilo - Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
2 X Lan (10gigabit Ethernet)

Miscellaneous :
Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Availability : In Stock
Condition : New Cto
Manufacturer Warranty : Full
Our Warranty : 30 Days
