Detail overview

General Information:
Manufacturer: Hewlett-packard Enterprise
Manufacturer Part Number: 755260-B21
Manufacturer Website Address: WWW.HPE.COM

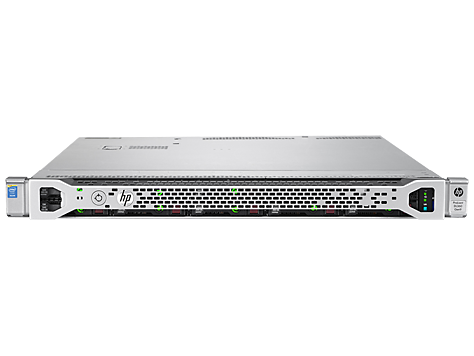

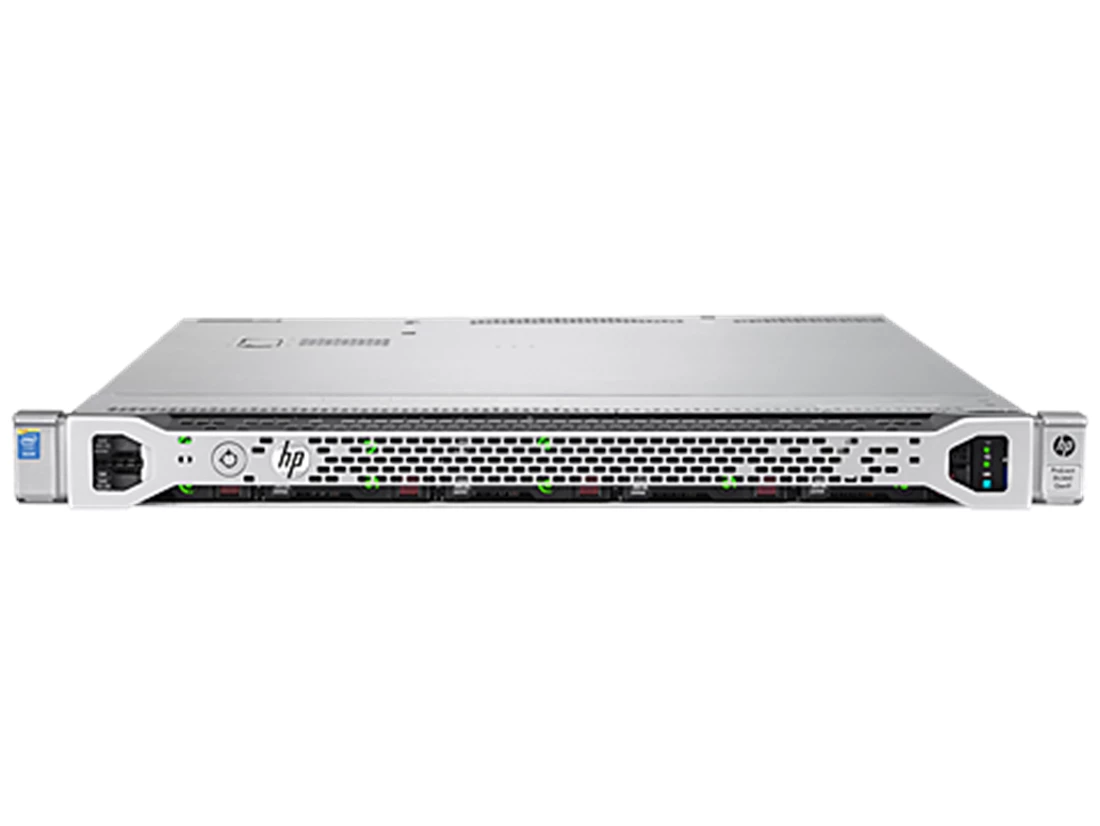

Product Name: Proliant Dl360 G9 1u Rack Mountable Server(entry Model)

Processor & Chipset:
Processor Type: Intel Xeon E5-2603v3/1.6ghz
Multi-core Technology: 6-core
64-bit Computing: Yes
Installed Processor Qty: 1
Max Supported Processor Qty: 2
Chipset Model: C610
Upgradability: Upgradable

Cache Memory:
Cache Memory Type: L3 Cache
Installed Size: 15mb
Cache Per Processor:15 Mb

Memory:
Installed Ram Size: 8gb
Max Supported Size : 384gb
Technology: Ddr4 Sdram - Advanced Ecc
Memory Speed: 1600 Mhz
Memory Specification Compliance: Pc4-17000
Form Factor: Dimm 288-pin
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features: 1x 8gb
Ram Supported:

Pc4-17000 - 768 Gb - Load-reduced

Pc4-17000 - 384 Gb - Registered

Storage:
Hard Drive: None

Storage Controllers:
Storage Controller Type: 1x Raid - Integrated
Controller Interface Type: Serial Ata-600
Storage Controller Name: Hp Dynamic Smart Array B140i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10

Display & Graphics:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : Vga

Networking :
Type : Integrated
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller(s): Hp 331i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-out 4
Features: Wake On Lan (wol), Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion & Connectivity:
Expansion Bays Total (free):

8 ( 8 ) X Hot-swap - 2.5inch Sff

1 ( 1 ) X External

Expansion Slots Total (free):

1 ( 1 ) X Pcie 3.0 X16 - Three-quarter-length, Full-height

1 ( 0 ) X Pcie 3.0 X8 - Low-profile

24 ( 23 ) X Memory - Dimm 288-pin

2 ( 1 ) X Processor

1 ( 0 ) X Flexiblelom

1 ( 1 ) X Microsd Card (internal)

Interfaces & Ports:

1 X Vga

1 X Serial

4 X Lan (gigabit Ethernet)

1 X Hp Ilo

5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )

Power Description:
Device Type: Power Supply - Hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1(with Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 500 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight:
Width : 17.1 In
Depth : 27.5 In
Height: 1.7 In
Weight: 27 Lbs

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
