Detail overview

General Information:
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 636365-001
Manufacturer Website Address : WWW.HPE.COM

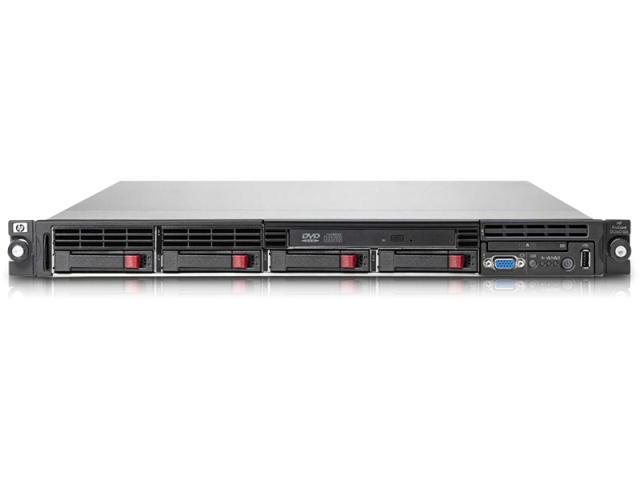

Product Name : Proliant Dl360 G7 1u Rack Server

Processor & Chipset :
Processor Type : Intel Xeon Processor X5675 (3.06 Ghz, 12 Mb L3 Cache, 95 Watts)
Multi-core Technology : 6-core.
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable.
64-bit Computing : Yes.
Processor Main Features:

Hyper-threading Technology.

Intel Turbo Boost Technology.
Chipset Type : Intel 5520

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb

Ram :
Installed Size : 12 Gb
Max Supported Size : 144 Gb
Ram Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-pin
Features : Registered
Configuration Features : 6 X 2 Gb
Ram Supported :

Pc3-8500 - 192 Gb - Registered Pc3-10600 - 144 Gb - Registered

Pc3-10600 - 48 Gb - Unbuffered

Storage & Storage Controller :
Hard Drive : None.
Optical Drive : none.
Max Internal Storage : 8 Sff Sas/sata Hdd Bays.
Storage Controller Type: 1 X Raid - Plug-in Card - Pci Express X8
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 1 Gb

Display & Graphics Controller :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 32 Mb
Supported Resolution :

16 Bit Color: Maximum Resolution Of 1600 X 1200

32 Bit Color: Maximum Resolution Of 1280 X 1024

Networking :
Networking: Network Adapter - Pci Express X4 - Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-out 3
Features: Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards:

Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab

Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion / Connectivity :
Expansion Bays Total (free) :

8 ( 8 ) X Hot-swap - 2.5 In Sff.

Expansion Slots Total (free) :

1 ( 1 ) X Pci Express 2.0 X16 - Full-length, Full-height.

1 ( 1 ) X Pci Express 2.0 X8 - Low-profile.

18 ( 12 ) X Memory - Dimm 240-pin.

2 ( 0 ) X Processor.

Interfaces :

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

2 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) ( 1 Front, 1 Rear )

3 X Usb - 4 Pin Usb Type A ( 1 Front, 2 Rear )

4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45

1 X Management - Hp Ilo - Rj-45

Power Device :
Power Device Type: Power Supply - Hot-plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt

Dimension & Weight :
Height : 1.70 In.
Width : 16.78 In.
Depth : 27.25 In.
Weight : 32 Lb.

Availability: In Stock.
Condition : Refurbished.
Our Warranty: 30 Days.
