Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 504636-001
Manufacturer Website Address: WWW.HPE.COM

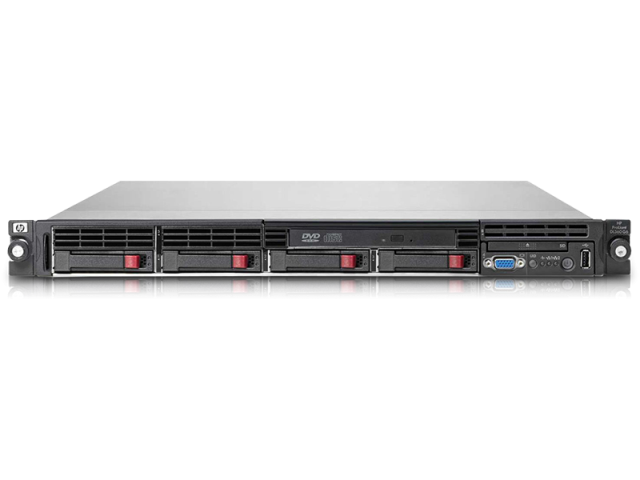

Product Name : Proliant Dl360 G6 Server

Product Overview :
Combining Concentrated 1u Compute Power, Integrated Lights-out Management, And Essential Fault Tolerance, The Hp Proliant Dl360 G6 Server Is Optimized For Space Constrained Installations. Latest Intel Xeon Processor, With Ddr3 Dimms And Pci Express Gen2 Technology Provide A High Performance System, Ideal For The Full Range Of Scale Out Applications.

Processor & Chipset :
Processor Type : Intel Xeon L5520 Quad-core 2.26 Ghz
Installed Qty : 1
Max Supported Qty : 2
Processor Technology:

Em64t

Turbo Boost Technology.

Virtualization Technology.

Hyper-threading Technology.

Enhanced Speedstep Technology.
Chipset : Intel 5520
Data Bus Speed: 1066 Mhz

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor: 8 Mb

Ram :
Installed Ram Size : 4 Gb
Max Supported Size : 24 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor : Dimm 240-pin
Features : Unbuffered.
Configuration Features : 2 X 2gb
Ram Supported :

Pc3-10600 - 24 Gb - Unbuffered.

Pc3-10600 - 192 Gb - Registered.


Storage :
Hard Drive : None.
Maximum Internal Storage Support: 2.40 Tb Hot-swappable Sas.
Optical Drive : None.

Storage Controller :
Storage Controller Type : 1 X Raid - Plug-in Card - Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 10

Display & Graphics Controller :
Graphics Controller Type: Integrated.
Graphics Processor : Ati Es1000
Video Memory : 32 Mb

Network & Communication :
Networking : Network Adapter - Pci Express X4 - Integrated.
Ethernet Ports : 2 X Gigabit Ethernet.
Ethernet Controller : Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller: Integrated Lights-out 2 Standard.
Features : Wake On Lan (wol), Acpi Support
Compliant Standards:

Ieee 802.3, Ieee 802.3u, Ieee 802.1q

Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion / Connectivity :
Expansion Bays Total (free):

1 ( 1 ) X Front Accessible - 5.25in Slim Line.

4 ( 4 ) X Hot-swap - 2.5in Sff.

Expansion Slots Total (free):

1 ( 0 ) X Pci Express X8 - Low-profile.

1 ( 1 ) X Pci Express X16 - Full-length, Full-height.

18 ( 16 ) X Memory - Dimm 240-pin 2

( 1 ) X Processor.

Interfaces :

1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)

1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)

3 X Usb - 4 Pin Usb Type A ( 1 Front, 2 Rear )

2 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45

1 X Management - Hp Ilo - Rj-45

Power :
Power Device Type : Power Supply - Hot-plug.
Power Redundancy : Optional.
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt

Dimension :
Width : 16.8 In
Depth : 27.2 In
Height: 1.7 In

Availability: In Stock.
Condition : Refurbished.
Our Warranty: 30
