Detail overview

General Information:
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 755258-b21
Manufacturer Website Address: Www.hpe.com

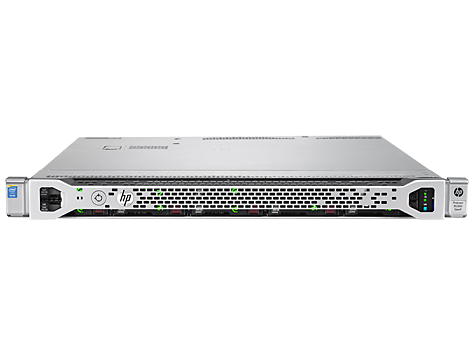

Product Name: Proliant Dl360 G9 1u Rack Server

Processor & Chipset:
Number Of Processors Installed: 0
Max Supported Qty : 2
Upgradability: Upgradable

Ram:
Installed Size : None
Maximum Size : 768gb
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Features : Hp Smartmemory
Ram Supported :
Pc4-17000 - 384 Gb - Registered
Pc4-17000 - 768 Gb - Load-reduced

Storage & Storage Controller :
Hard Drive : None
Storage Controller Type : 1 X Sata - Integrated - Pci Express 2.0 X4
Controller Interface Type : Serial Ata-600
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 10 , Raid 5

Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga

Network & Communication :
Networking Type : Integrated
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansions & Connectivity :
Expansion Bays Total (free) :

  • 1 (total) / 1 (free) X External 5.25in Slim Line
  • 8 (total) / 8 (free) X Hot-swap - 2.5in Sff

    Expansion Slots Total (free) :
  • 2 (total) / 2 (free) X Processor
  • 24 (total) / 24 (free) X Memory - Dimm 288-pin
  • 1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
  • 1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
  • 1 (total) / 1 (free) X Flexiblelom
  • 1 (total) / 1 (free) X Microsd Card (internal)

    Interfaces & Ports :
  • 1 X Vga
  • 1 X Serial
  • 4 X Lan (gigabit Ethernet)
  • 1 X Hp Ilo
  • 5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )

    Power Description :
    Device Type: Power Supply Hot-plug
    Power Redundancy: Optional
    Power Redundancy Scheme: 1+1(with Optional Power Supply)
    Installed Qty: 0
    Max Supported Qty: 2

    Dimensions & Weight :
    Width : 17.1 In
    Depth : 27.5 In
    Height : 1.7 In
    Weight : 27 Lbs


    Availability : In Stock.
    Condition : Refurbished.
    Our Warranty : 30 Days.
