Detail overview

General Information :
manufacturer: HPE
manufacturer Part Number: 748301-S01
MANUFACTURER Website Address: Www.hp.com

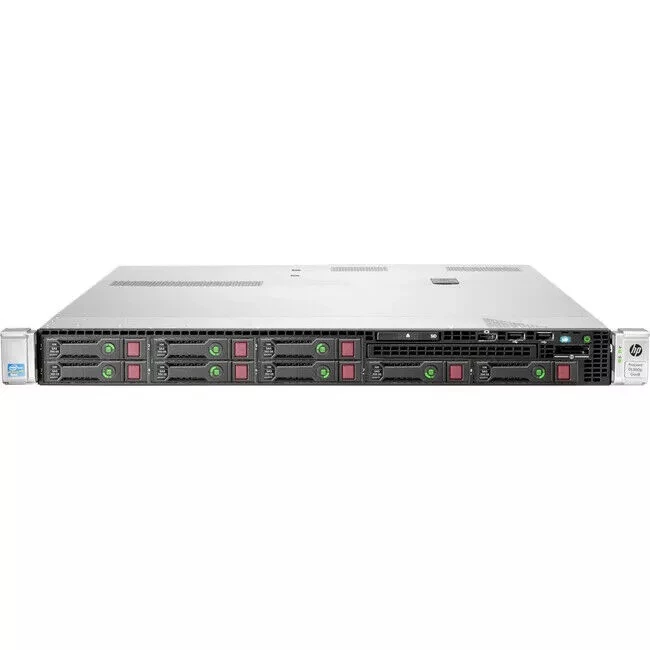

product Name: Proliant Dl360p G8 1u-rack Server S-buy

Processor & Chipset :
processor Type: Intel Xeon E5-2670v2 / 2.5ghz
compatible Slots: Fclga2011 Socket
multi-core Technology: Ten-core (10-core)
64 Bit Computing: Yes
installed Qty: 2
max Supported Qty: 2
upgradability: Upgradable
chipset Model: Intel C600
data Bus Speed: 1866 Mhz

Cache Memory :
cache Memory Type: L3 Cache
installed Size: 50 Mb
cache Per Processor: 25 Mb

Memory :
installed Ram Size: 32 Gb / 768 Gb (max)
technology: Ddr3 Sdram
memory Speed: 1866 Mhz
memory Specifications Compliance: Pc-3 14900
form Factor: Dimm 240-pin
number Of Total Memory Slots: 24
features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
configuration Features: 2 X 16 Gb
ram Supported

Pc3-12800 - 384 Gb - Registered

Pc3-10600 - 768 Gb - Load-reduced

Pc3-10600 - 128 Gb - Unbuffered - Advanced Ecc

Pc3-10600 - 384 Gb - Hypercloud

Storage & Storage Controllers :
hard Drive : None
storage Controller Type: 1 X Raid - Plug-in Card - Pci Express 3.0 X8
controller Interface Type: Serial Ata-600 / Sas 2.0
storage Controller Name: Smart Array P420i With 1gb Fbwc
raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
buffer Size: 1 Gb

Card Reader :
memory Card Reader: Yes
supported Flash Memory Cards: Secure Digital (sd) Card

Display & Graphics :
graphics Controller Manufacturer: Matrox
graphics Controller Model: G200
video Interfaces : Vga

Network & Communication :
networking Type : Plug-in Card
interface (bus) Type : Pci Express 2.0 X8
ethernet Ports : 2x 10 Gigabit Ethernet
ethernet Controller(s): Hp 331flr-t
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Protocol: Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 4
features: Wake On Lan (wol), Pxe Support
compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion & Connectivity :
expansion Bays Total (free):

1 (total) / (free) ( 1 ) X Front Accessible - 5.25in Slim Line

8 (total) / (free) ( 8 ) X Hot-swap - 2.5in Sff

expansion Slots Total (free):

24 (total) / 22 (free) X Memory - Dimm 240-pin

2 (total) / 0 (free) X Processor

1 (total) / 1 (free) X Pci Express 3.0 X16 - Half-length, Full-height

1 (total) / 1 (free) X Pci Express 3.0 X8 - Low-profile

1 (total) / 0 (free) X Flexiblelom ( X4 Mode )

interfaces & Ports:

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)

7 X Usb - 4 Pin Usb Type A ( 2 Front, 4 Rear, 1 Internal )

4 X Network - Ethernet 10base-t/100base-tx/1000base-tx - Rj-45

1 X Management - Hp Ilo - Rj-45

Power Description :
device Type: Power Supply - Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 2
max Supported Qty: 2
voltage Required: Ac 120/230 V ( 50/60 Hz )
power Provided: 750 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
height : 1.7 In
width : 17.1 In
depth : 27.5 In
weight : 32.0 Lbs

Availability : In Stock.
Condition : Refurbished.
Our Warranty : 30 Days.
