Detail overview

General Information :
Manufacturer: HPE
Manufacturer Part Number: 737291-S01
Manufacturer Website Address: WWW.HPE.COM

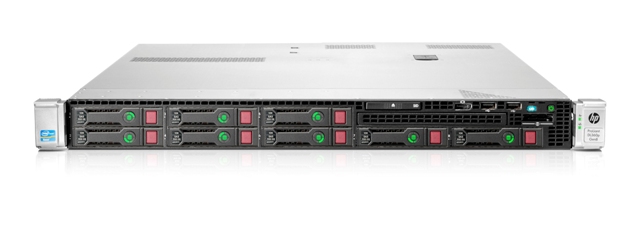

Product Name: Proliant Dl360p G8 1u-rack Server S-buy

Processor & Chipset :
Processor Type: Intel Xeon E5-2620v2 / 2.1 Ghz
Compatible Slots: Fclga2011 Socket
Multi-core Technology: Hexa-core (6-core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600

Cache Memory :
Cache Memory Type: L3 Cache
Installed Size: 15 Mb
Cache Per Processor: 15 Mb

Memory :
Installed Ram Size: 16 Gb / 768 Gb (max)
Technology: Ddr3 Sdram
Memory Speed: 1600 Mhz
Memory Specifications Compliance: Pc-3 12800
Form Factor: Dimm 240-pin
Number Of Total Memory Slots: 24
Features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features: 2 X 8 Gb
Ram Supported

Pc3-12800 - 384 Gb - Registered

Pc3-10600 - 768 Gb - Load-reduced

Pc3-10600 - 128 Gb - Unbuffered - Advanced Ecc

Pc3-10600 - 384 Gb - Hypercloud

Storage & Storage Controllers :
Hard Drive : None
Storage Controller Type: 1 X Raid - Plug-in Card - Pci Express 3.0 X8
Controller Interface Type: Sata 6gb/s / Sas 6gb/s
Storage Controller Name: Smart Array P420i With 512mb Fbwc
Raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 512mb

Card Reader :
Memory Card Reader: Yes
Supported Flash Memory Cards: Secure Digital (sd) Card

Display & Graphics :
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200

Network & Communication :
Networking: Network Adapter - Integrated
Interface (bus) Type : Pci Express X4
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(s): Hp 331flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-out 4
Features: Wake On Lan (wol), Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion & Connectivity :
Expansion Bays Total (free):

1 (total) / ( 1 ) (free) X Front Accessible - 5.25in Slim Line

8 (total) / ( 8 ) (free) X Hot-swap - 2.5in Sff

Expansion Slots Total (free):

24 (total) / 22 (free) X Memory - Dimm 240-pin

2 (total) / 1 (free) X Processor

1 (total) / 1 (free) X Pci Express 3.0 X16 - Half-length, Full-height

1 (total) / 1 (free) X Pci Express 3.0 X8 - Low-profile

1 (total) / 0 (free) X Flexiblelom ( X4 Mode )

Interfaces & Ports:

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)

7 X Usb - 4 Pin Usb Type A ( 2 Front, 4 Rear, 1 Internal )

4 X Network - Ethernet 10base-t/100base-tx/1000base-tx - Rj-45

1 X Management - Hp Ilo - Rj-45

Power Description :
Device Type: Power Supply - Hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt

Dimensions & Weight :
Height : 1.7 In
Width : 17.1 In
Depth : 27.5 In
Weight : 32.0 Lbs

Availability : In Stock.
Condition : Refurbished.
Our Warranty : 30 Days.
