Detail overview

General Information :
manufacturer: HPE
manufacturer Part Number: 697493-S01
MANUFACTURER Website Address: Www.hp.com

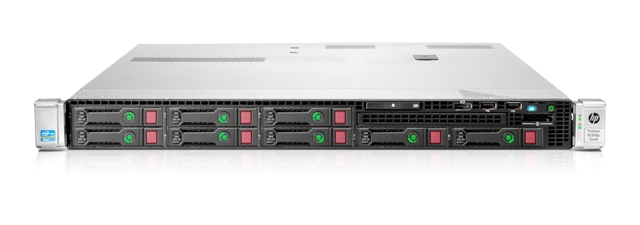

product Name: Proliant Ml360p G8 1u-rack Server S-buy

Processor & Chipset :
processor Type : Intel Xeon E5-2650 / 2.0ghz
processor Slots : Lga2011 Socket
multi-core Technology : 8-core (octa-core)
64 Bit Computing : Yes
installed Qty : 1
max Supported Qty: 2
upgradability : Upgradable
processor Main Features : Intel Quickpath Interconnect, Intel Turbo Boost Technology 2
chipset Model : Intel C600
data Bus Speed : 1333 Mhz

Cache Memory :
cache Memory Type : L3 Cache
installed Size : 20 Mb
cache Per Processor : 20 Mb

Memory :
installed Ram Size: 16gb (2x8gb)
maximum Size: 786gb
technology: Ddr3 Sdram
memory Speed: 1333 Mhz
memory Specifications Compliance: Pc-3 12800
form Factor: Dimm 240-pin
number Of Total Memory Slots: 24
features: Registered, Quad Channel Memory Architecture, Hp Smartmemory

Storage & Storage Controllers :
hard Drive Type : None Ship Standard, Supports Up To (8) Sff Sas/sata Hot Plug Drives
controller Interface Type: Sata-600 / Sas 2.0
storage Controller Name: Smart Array P420i/512mb Fbwc
raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
buffer Size: 512 Mb

Card Reader :
memory Card Reader: Yes
supported Flash Memory Cards: Secure Digital (sd) Card

Display & Graphics :
integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)

hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)

Network & Communication :
networking: Network Adapter - Integrated
ethernet Ports: 4x Gigabit Ethernet
ethernet Controller(s): 1gb 331flr Ethernet Adapter
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Protocol: Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 4
features: Wake On Lan (wol), Pxe Support
compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion & Connectivity :
expansion Bays Total (free):

1 ( 1 ) X Front Accessible - 5.25in Slim Line

8 ( 8 ) X Hot-swap - 2.5in Sff

expansion Slots Total (free):

24 (total) / 22 (free) X Memory - Dimm 240-pin

2 (total) / 1 (free) X Processor

1 (total) / 1 (free) X Pci Express 3.0 X16 - Half-length, Full-height

1 (total) / 1 (free) X Pci Express 3.0 X8 - Low-profile

interfaces & Ports:

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)

6 X Usb - 4 Pin Usb Type A ( 2 Front, 4 Rear,)

4 X Network - Ethernet 10base-t/100base-tx/1000base-tx - Rj-45

1 X Management - Hp Ilo - Rj-45

Power Description:
device Type: Power Supply - Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 2
max Supported Qty: 2
voltage Required: Ac 120/230 V ( 50/60 Hz )
power Provided: 460 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
height : 1.7 In
width : 17.1 In
depth : 27.5 In
weight : 32.0 Lbs

Availability : Call.
Condition : Refurbished.
Our Warranty : 30 Days.
