Detail overview

General Information:
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number: 646905-001
Manufacturer Website Address : Www.hpe.com

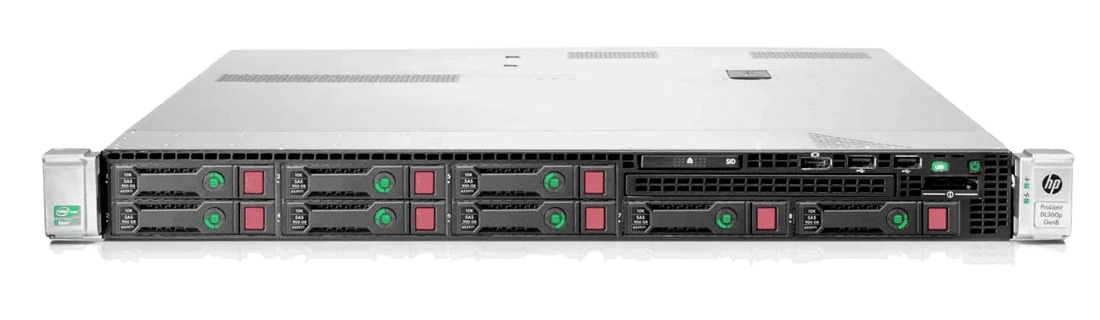

Product Name: Proliant Dl360p Gen8 - 2-way 1u Rack Server ( Performance Model)

Processor & Chipset :
Cpu : Intel Xeon E5-2690 / 2.9 Ghz
Max Turbo Speed : 3.8 Ghz
Number Of Cores : 8-core
64-bit Computing : Yes
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Quickpath Interconnect, Intel Turbo Boost Technology 2

Cache Memory :
Type: L3 Cache
Installed Size: 40 Mb
Cache Per Processor: 20 Mb

Memory :
Installed Size : 32 Gb / 384 Gb (max)
Technology : Ddr3 Sdram
Effective Memory Speed : 1600 Mhz
Rated Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-pin
Slots : 24 (total) / 20 (empty)
Features : Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 4 X 8 Gb
Ram Supported : Pc3-12800 - 384 Gb Registered Pc3-10600 - 768 Gb Load-reduced Pc3-10600 - 128 Gb Unbuffered - Advanced Ecc Pc3-10600 - 384 Gb Hypercloud

Storage & Optical Storage :
Hdd : No Hdd
Optical Drive : No Optical Drive

Storage Controller :
Type : 1 X Raid - Integrated - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P420i With 2gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 2 Gb

Display & Graphics :
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : Vga

Network & Communication :
Type : Plug-in Card
Interface (bus) Type : Pci Express X4
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp 530flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion & Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X Front Accessible - 5.25inch X 1/2h
8 (total) / 8 (free) X Hot-swap - 2.5inch Sff

Expansion Slots Total (free) :
24 (total) / 20 (free) X Dimm 240-pin
2 (total) / 0 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 0 (free) X Flexiblelom (x4 Mode)
1 (total) / 1 (free) X Sd Card (internal)

Interfaces & Ports :
1 X Serial
1 X Vga
2 X Lan (10gigabit Ethernet)
1 X Hp Ilo
7 X Usb 2.0 (2 Front, 4 Rear, 1 Internal)

Miscellaneous :
Features :
Administrator Password
Power-on Password
Serial Port I/o Control
Setup Password
Uefi Bios

Compliant Standards :
Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Bsmi Cns 13438

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 750 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.1 In
Depth : 27.5 In
Height : 1.7 In
Weight : 31.99 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
