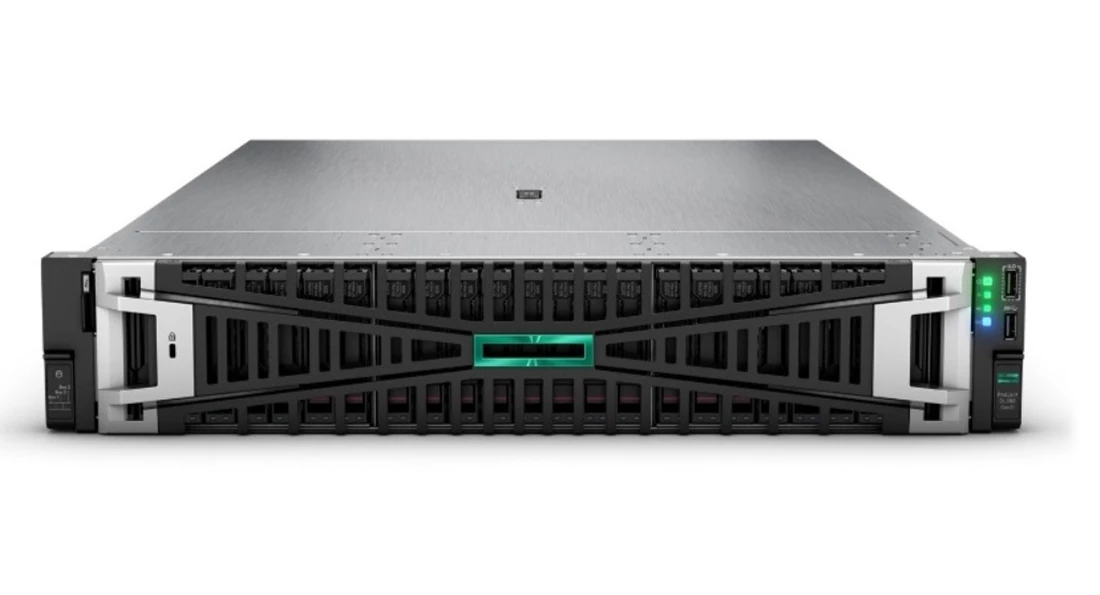

HPE P86710-005 DL380 Gen11 4510 2.4GHz 12c 1P 2x32GB R 8SFF 1x7.68TB NVMe SSD 2x800W PS NA Server

HPE P86710-005 DL380 Gen11 4510 2.4GHz 12c 1P 2x32GB R 8SFF 1x7.68TB NVMe SSD 2x800W PS NA Server

Part Number: P86710-005
BRAND: HPE | More SERVERS from HPE
$13,775.00
Capacity: 12-CORE XEON SILVER 2.4GHz

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE P86710-005 Proliant Dl380 Gen11 Smart Choice Model - 5th Gen 1x Intel Xeon 12-core Silver 4510 / 2.4 Ghz - 64(2x32)gb Ddr5 Sdram - Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter - Embedded Sata Controller (ahci Or Intel Sata Hybrid Raid Controller - HPE 7.68tb Nvme Gen4 Mainstream Performance Read Intensive Sff Bc U.3 Static V2 Multi Vendor Ssd - 8sff - 2x HPE 800w Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit - 2-way 2u Rack Na Server.

General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P86710-005
Type : Server - Rack-mountable
Height ( Rack Units) : 2u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl380 Gen11 4510 2.4ghz 12c 1p 2x32gb R 8sff 1x7.68tb Nvme Ssd 2x800w Ps Na Server ( Smart Choice Model)

Processor / Chipset :
Cpu : Intel Xeon Silver 4510
Clock Speed : 2.4 Ghz
Max Turbo Speed : 4.1 Ghz
Number Of Cores : 12-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Socket : Intel Socket 4677
Chipset Type : Intel C741
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology

Cache Memory :
Installed Size : Smart Cache - 30 Mb
Cache Per Processor : 30 Mb

Ram :
Installed Size : 64 Gb / 8.0 Tb (max)
Technology : Ddr5 Sdram
Effective Memory Speed : 4400 Mhz
Rated Memory Speed : 5600 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 30 (empty)
Features : Registered, Slots 17 - 32 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 2 X 32 Gb
Ram Supported : 8.0 Tb Load-reduced - Ecc - 4 Tb Registered - Ecc - 192 Gb Non-volatile - Ecc

Internal Storage Devices :
Hdd / Ssd :
Hard Drive / Type : Ssd
Hard Drive Capacity / Hdd : 7.68 Tb
Hard Drive / Installed Qty : 1
Hard Drive / Interface Type : Nvme

Optical Drive : No Optical Drive

Storage Controller :
Name : Embedded Sata Controller
Controller Type : Serial Sata
Raid Supported : Yes
Raid Levels : 0, 1, 5, 10

Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Name : Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :

1 (total) / 1 (free) X External Universal Media Bay

8 (total) / 7 (free) X Hot-swap 2.5 Sff

Slots :

2 (total) / 2 (free) X Flexiblelom

1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height

1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height (x8 Mode)

1 (total) / 1 (free) X Pcie 5.0 X16 - Half-length, Full-height (x8 Mode)

Interfaces :

1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)

4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)

1 X HPE Ilo - Rj-45 (1 Rear)

1 X Vga (1 Rear)

4 X Lan (gigabit Ethernet) - Rj-45

Miscellaneous :
Included Accessories : Cable Management Arm, HPE High Performance Heatsink, 6x High Performance Fan, Sff Easy Install Rail Kit, 1x HPE Bezel Lock Kit, 1x HPE Proliant Dl3xx Gen11 Intrusion Cable Kit, 1x HPE Gen11 2u Bezel Kit
Compliant Standards : Aes, Fips 140-2, Tls V1.2, Low Halogen, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.3, Erp Lot 9
Pricing Type : Bto

Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft Windows Server, Red Hat Enterprise Linux, Vmware Esxi, Oracle Linux, Canonical Ubuntu, Citrix
Software : HPE Server Uefi

Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)

Dimensions & Weight :
Width : 17.6 In
Depth : 28.6 In
Height : 3.4 In
Weight : 35.27 Lbs

Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
